12.4.10 FIL _ OCP trouble or Error Pro - - F - error (XR7-FnD Board)
1) Consist of PCB
2) Check procedure

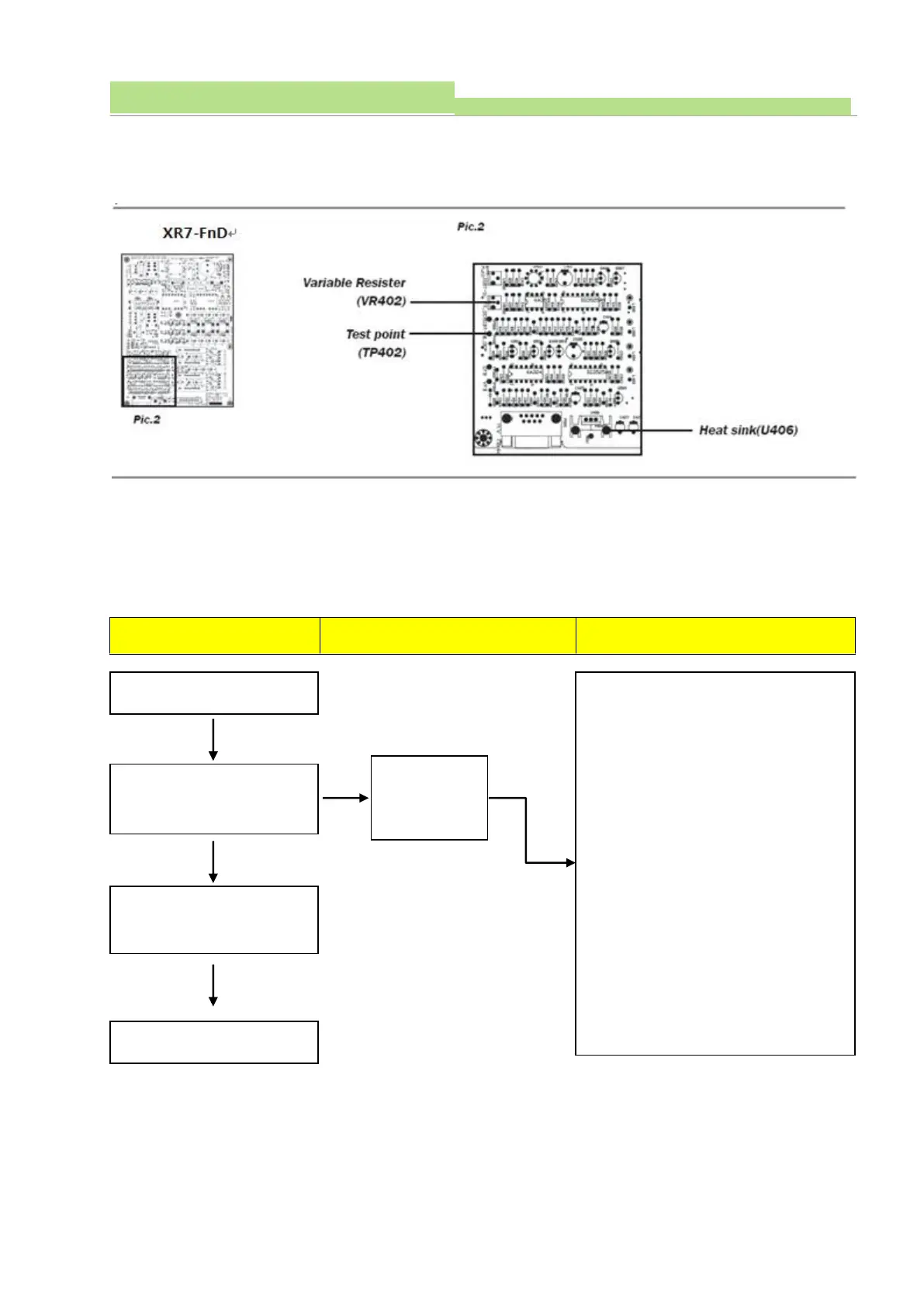

(1) Board Name: XR7-FnD Board
(2) Functions: Controlling IGBT and Tube Filament
(3) Check wiring condition of XR7-FnD Board and then check FIL _ OCP trouble when IGBT Device signals
and protection circuit trouble. And check procedures are as follows.
Normal Operation
Under defective
How to check and repair
1. The function of FIL_OCP is to protect tube
focal spots.
2. Check voltage between Test point (TP402)
and Heat sink (U406)
(Normal: 3.6VDC ±0.1V)
3. If the voltage is not O.K, adjust VR402 to
fix the correct voltage.
4. It is strongly recommended that VR402
is strictly prohibited from uneducated
persons. (Keeping factory setting is very
important)
5. In case FIL_OCP circuit is defective, X-ray
tube or Driver board should be replaced.
Call to Service center for the further
actions.
Error comes
when X-ray
exposure
Set exposure value
Push Ready button
X-ray exposure is done
Push X-ray button
