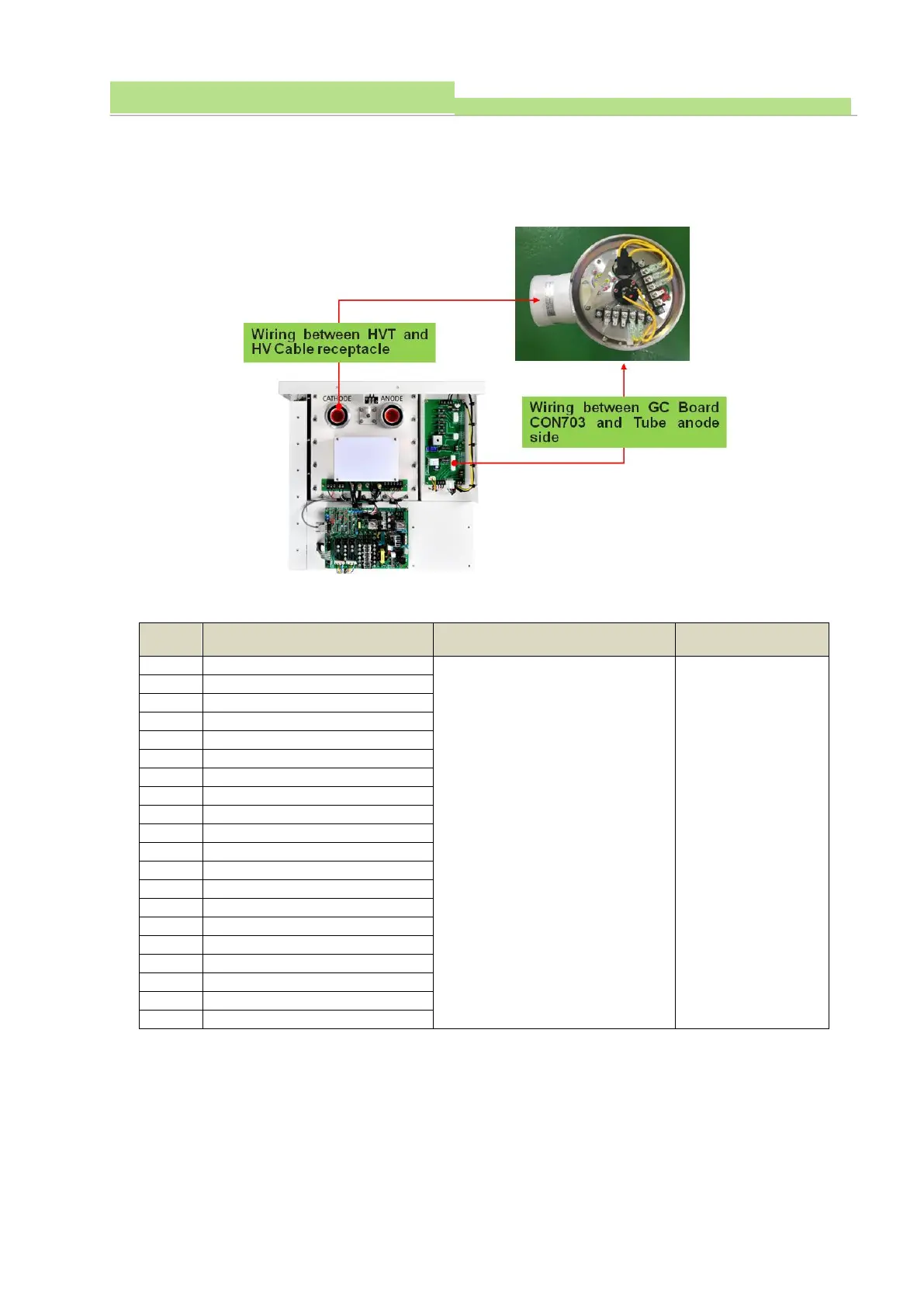

5.9.5.6 Connect High Voltage Transformer with X-ray Tube
■ Connecting HVT’s Anode, Cathode and Tube Anode, Cathode by HV Cable.
■ Connecting Cable Between GC Board’s CON703 and X-Ray Tube Anode Stator.
● Checking GC board CON703’s PIN
PIN
CON703
NOTES
참 고
1
Stator COMMON
SC (Stator COMMON Coil )
Using 1, 11 Pin
SM (Stator Main Coil)
Using 3 Pin
SS (Stator Shift Coil)
Using 13 Pin
Temperature relay
Using 19, 20Pin
GC board
CON703
Connector Supply
Electricity to
Anode stator’s
Moving Coil and
connecting with
Tube Anode
Stator
2
NC
3
Stator Main
4
NC
5
EMG (Emergency switch)
6
NC
7
AC 0V
8
AC 24V
9
GND
10
GND
11
Stator COMMON
12
NC
13
Stator Shift
14
NC
15
EMG (Emergency switch)
16
NC
17
DC 0V
18
DC 24V
19
Temperature relay
20
Temperature relay
