■ Connecting Console’s SUB Port (Option)
● RS232 (Port) is connecting with Communication Cable.

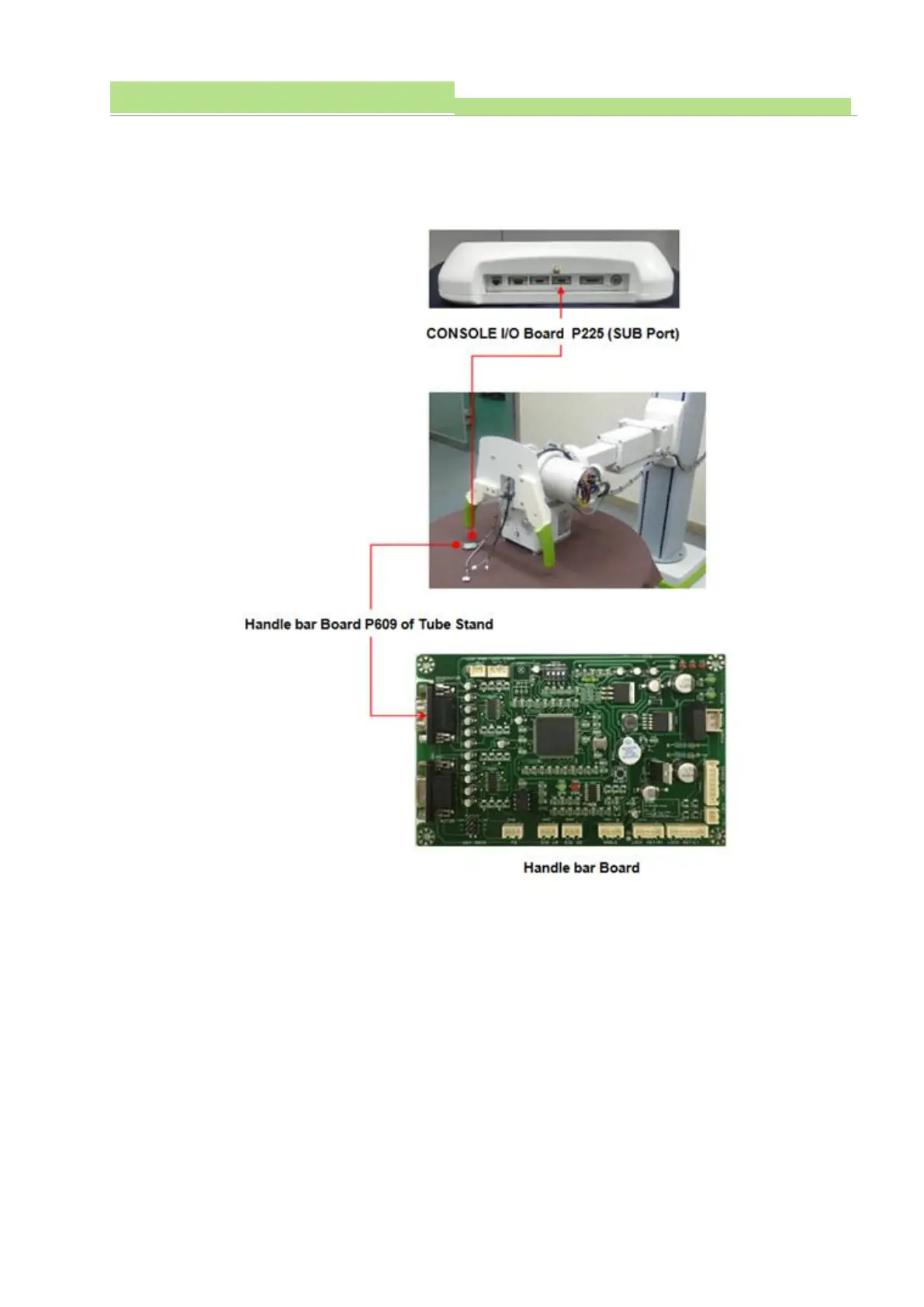

● Tube Stand’s Handle Bar connects Board P609 and CONSOLE I/O Board’s P225 (SUB Port).
NOTE ▶
Applying when using LCD type Handle Bar, and RS232’s communication cable is attached to Tube
stand before to delivery from a factory.
