Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

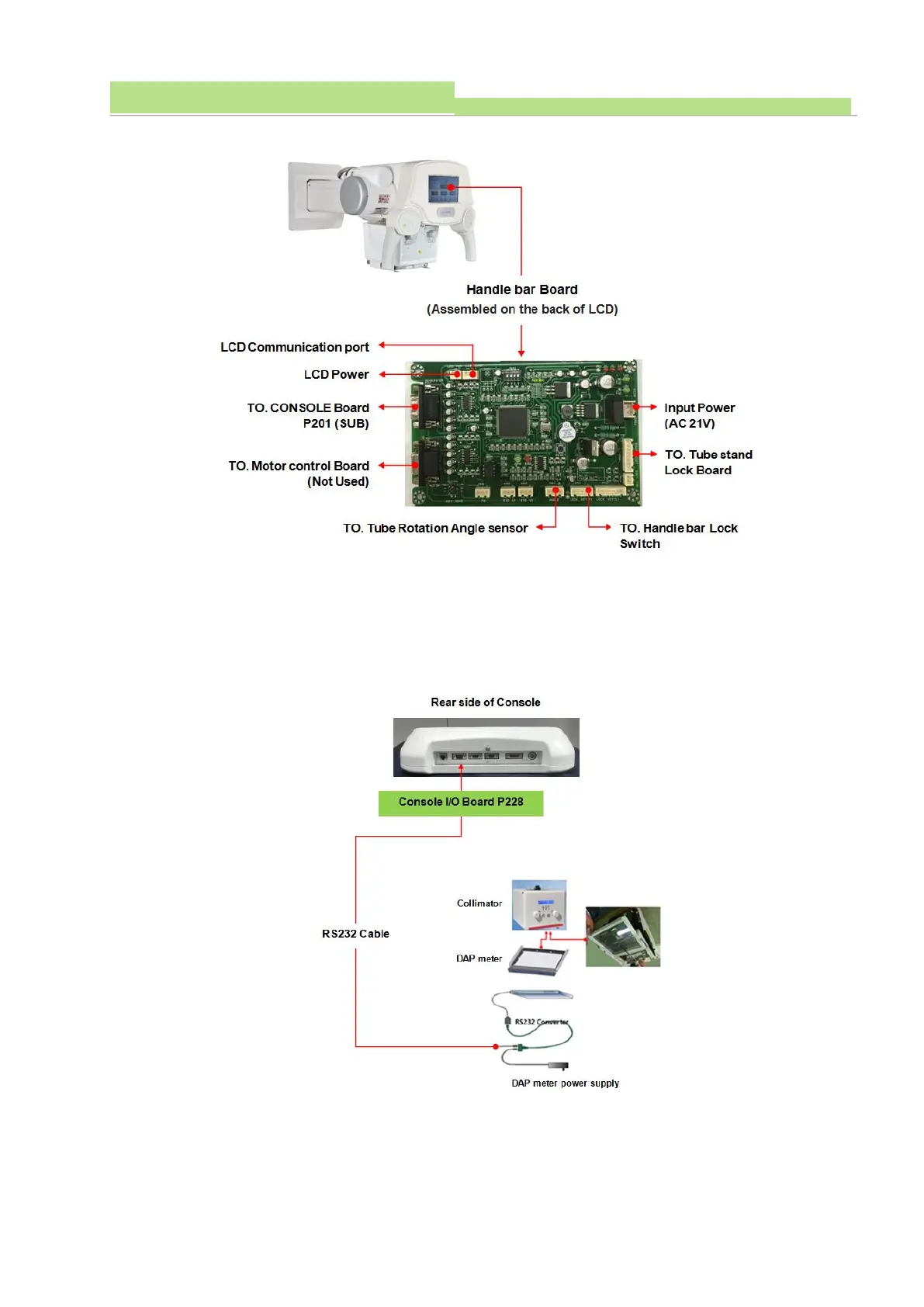

● Handle Bar Board’s Composition is shown below.
■ Connecting DAP Port (Option)
● RS232 (port) and connecting to communication cable.
● DAP meter is assembled at the end of Collimator.
● Connecting DAP meter and CONSOLE Board’s P228 (SUB)
NOTE ▶
DAP meter is Optional, and using DAP meter, and provide separate installation Manual.
