5.10.3 Function of Main Parts
■ Stand
√ Column: Device helps the X-ray tube travelling up & down.
√ Vertical move device: holding X-ray tube and to be connected to Tube Stand to support up & down
travel.
√ Stand base: holding Tube Stand and to be connected to Floor rail for longitudinal travel.
√ Floor rail: supports Tube stand to move longitudinal way.
■ Handle Bar
√ Handle: The device has a Angle display panel, emergency PWR-off button, electromagnetic lockup
buttons and user holding handles for X-ray tube position control.
√ X-ray tube device: where it has X-ray tube, Handle Bar and collimator assembled.
√ Tube Arm: Helping X-ray tube rotation from Handle Bar.
√ Electromagnetic lockup device for vertical travel: Helping X-ray tube up/down travel from Handle Bar.
5.10.4 Unpacking
● The different devices are packed in several boxes for convenient and efficient transportation and
installation.
● Check if all the devices are well condition after unpacked.
● In case any of the devices are broken or missed, please contact your local agent or manufacturer
quickly.

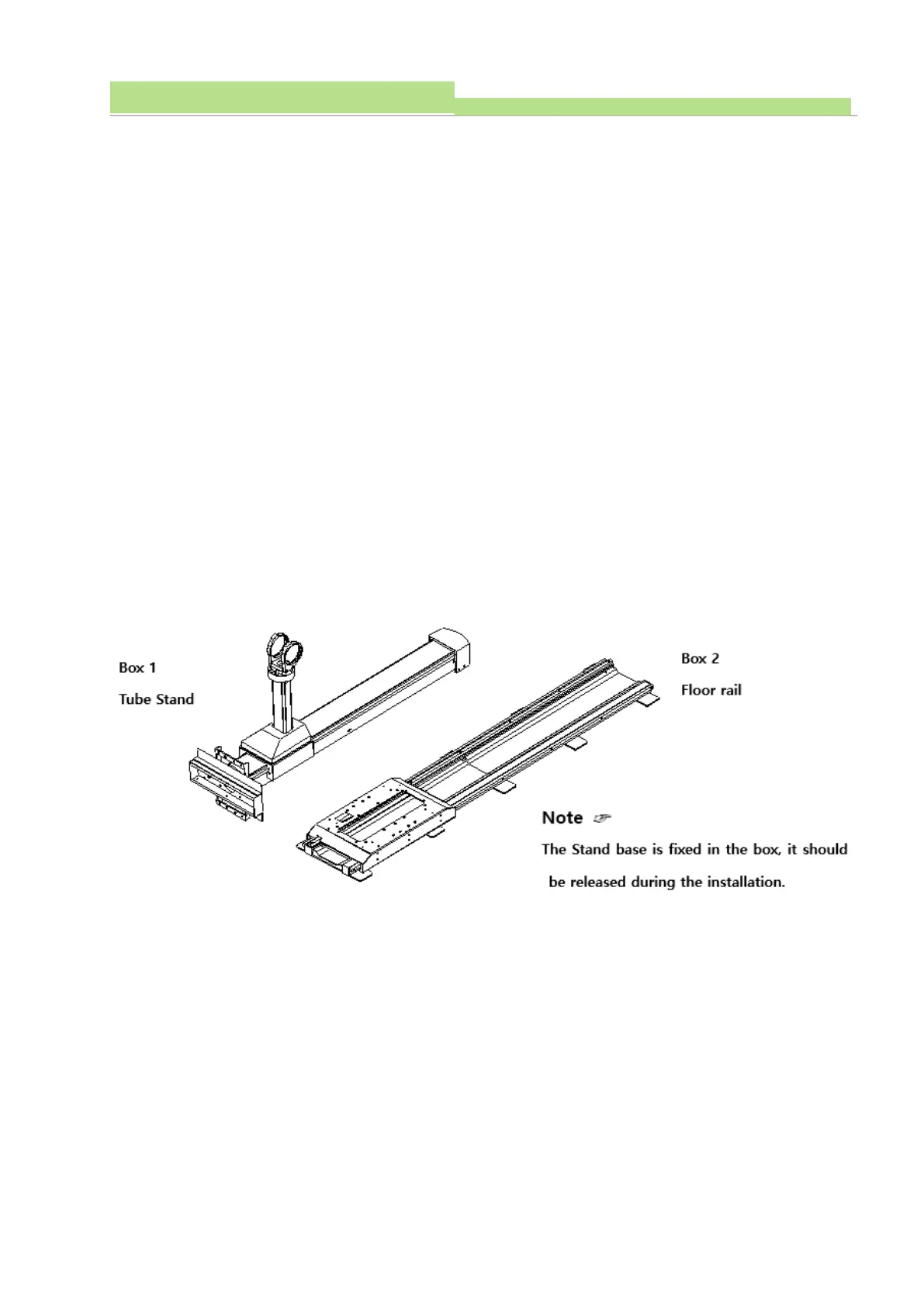

● They are packed as a set of Stand, a set of Handle Bar, a set of balance weight and a set of Floor rail.
● Do not scrap the packing boxes, envelops or inside papers before you make sure all about the
contents.
CAUTION ▶
It is necessary to have 2 or more people to move and install the Tube Stand devices.
