Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
5.10.5 Start Installation
Installation procedure of Tube Stand
● Check if the serial No. on the label is match with the serial No. on the quality certificate.
● During the unpacking, check if all the devices are in well condition, especially at cables. In case any
broken or damaged parts, please contact your local agent for replacements.
● Bring the devices to the installation place. (Do not assemble the devices in advanced) 2 or more
people are needed to move them because the devices are very heavy.
● Fix (install) the Floor rail on a right position.
● Connect Tube Stand into Floor rail through the Stand base.
● Press down the tube head (tube arm) to the level where you can put the holding pin. It is necessary
to pull it down without weight balance.
● Put the holding pins around the balance weight box position.
● Then install X-ray tube, Handle Bar and collimator.
● And put balance weights into the tube stand (in the empty space of balance weights). The balance
weights are very heavy, so please be careful when you move them into the space.
● Check the cable connections and make them tight if necessary.
● Make all the cable connections according to the cable diagram.
● Check if all the connections are correct.
● If the cable & wire connections are O.K, put main AC input power to the Generator. (Check AC input
power level before you make Power ON)
● One person holds the X-ray tube and the other removes the holding pin at behind of Tube Stand.
● Check if the weight balance is O.K, if the balance is not perfect, add or remove the weight balances.
● PWR ON and check if electromagnetic lockup functions are all O.K – test it from Handle Bar.
● The engineers should stay in the room until the installation works are all over.
5.10.5.1 Floor rail installation
● Place the rail on the floor – check the location carefully before you fix it.
● And position it at the correct point.

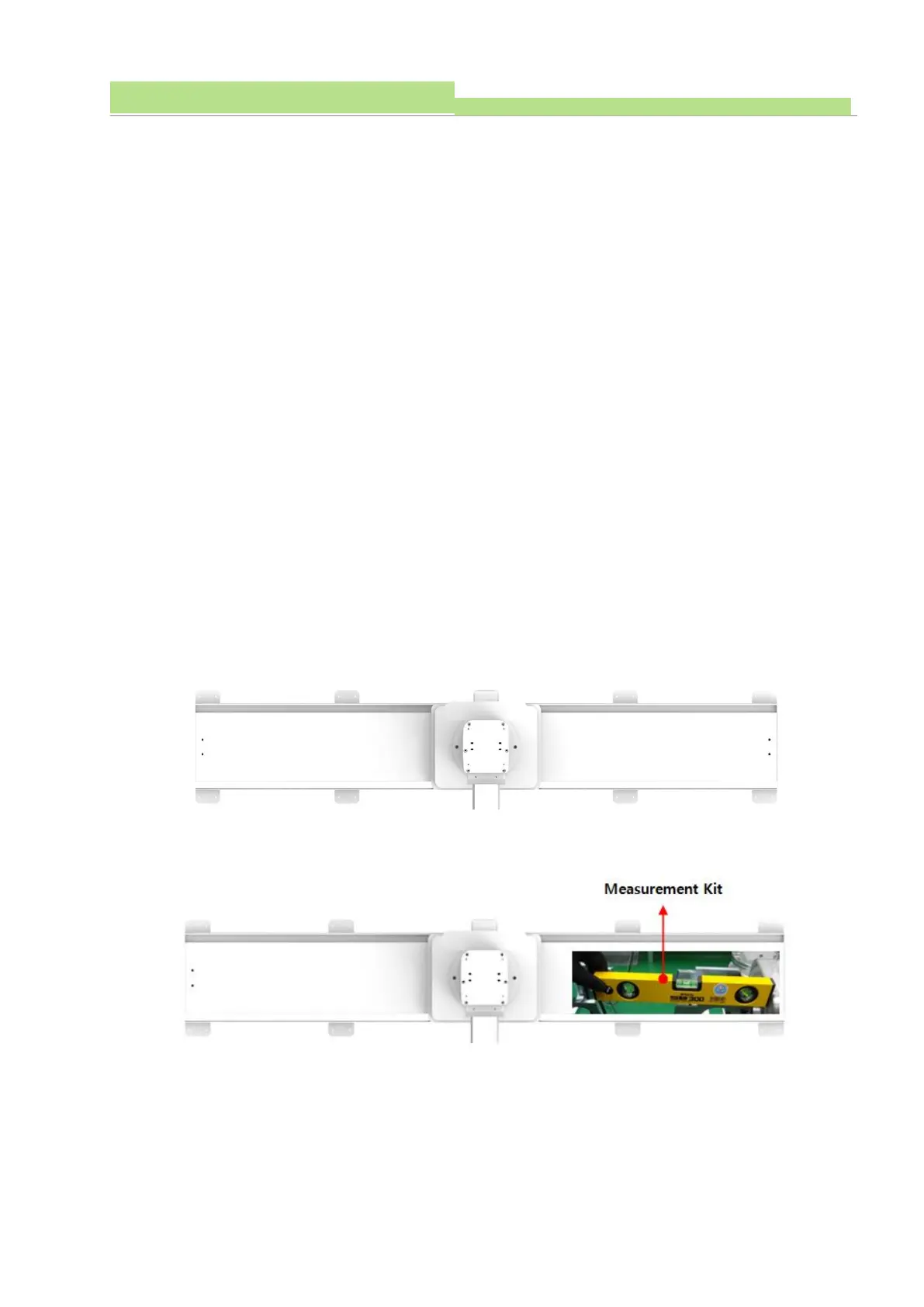

● Check vertical & horizontal balance by the measurement kit. (please see the photo) – please put
something below the bottom side of rail in order to make correct balance.
● Once the balance is O.K, install tube stand on the floor rail and assemble the tube & collimator..
Then check the balance again on tube itself.
● When all the rest parts are installed correctly, put anchor bolt holes and fix the rail with Wedge
Anchor bolts.
