Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

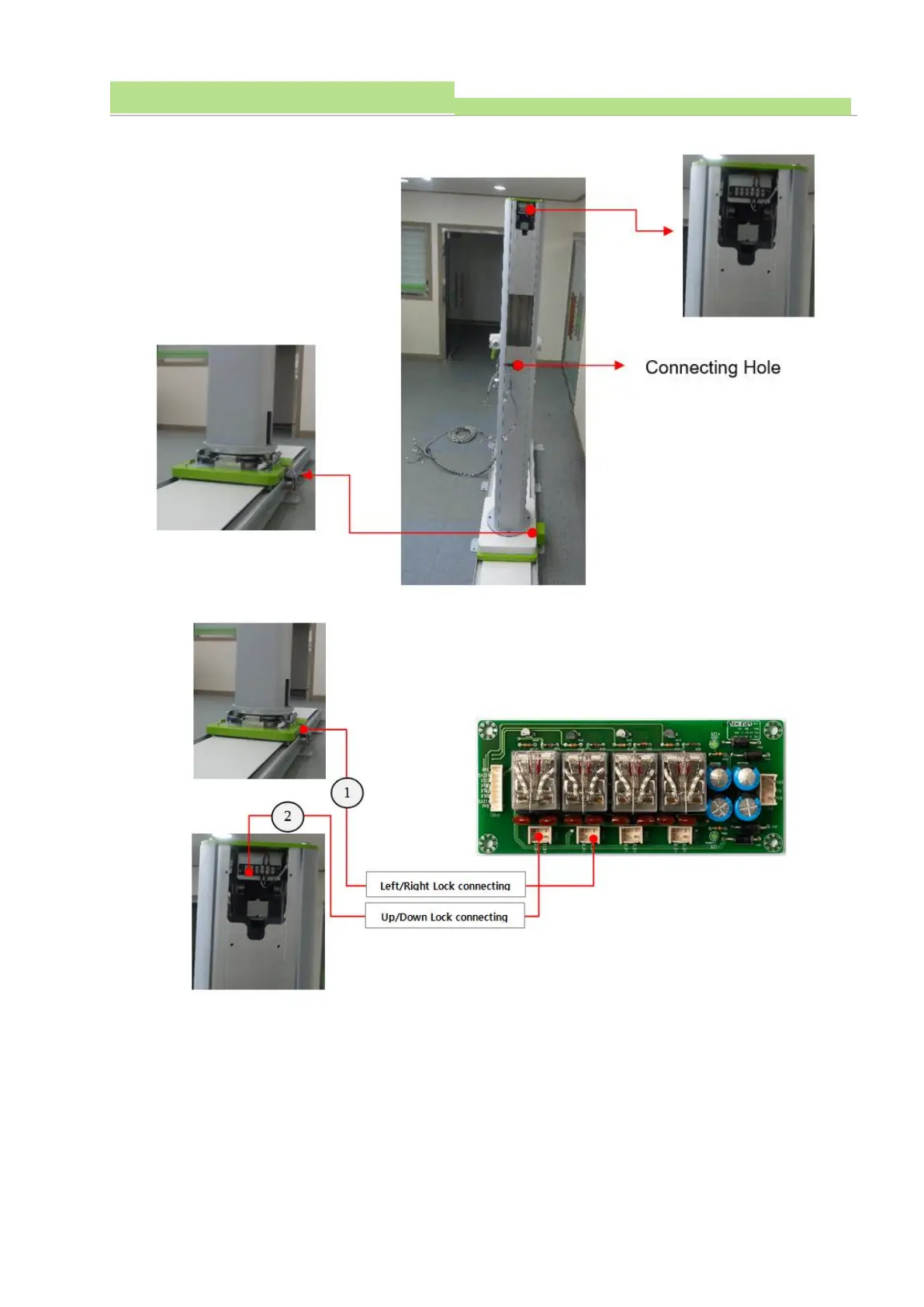

● Up/ Down, Left/Right Lock cablings.
(1) Make wiring through Connecting hole lead line.
No.1: Connection between P911 on Stand Lock Board and Left/Right Lock.
No.2:Connection between P915 on Stand Lock Board and Up/ Down Lock.
5.10.5.8 Tube anode side wiring
●The tube anode side has cablings for Anode Stator, Lock power, Collimator power, Tube
Temperature Switch.
● Tube Anode side is consist of following points (see below photo).
