Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

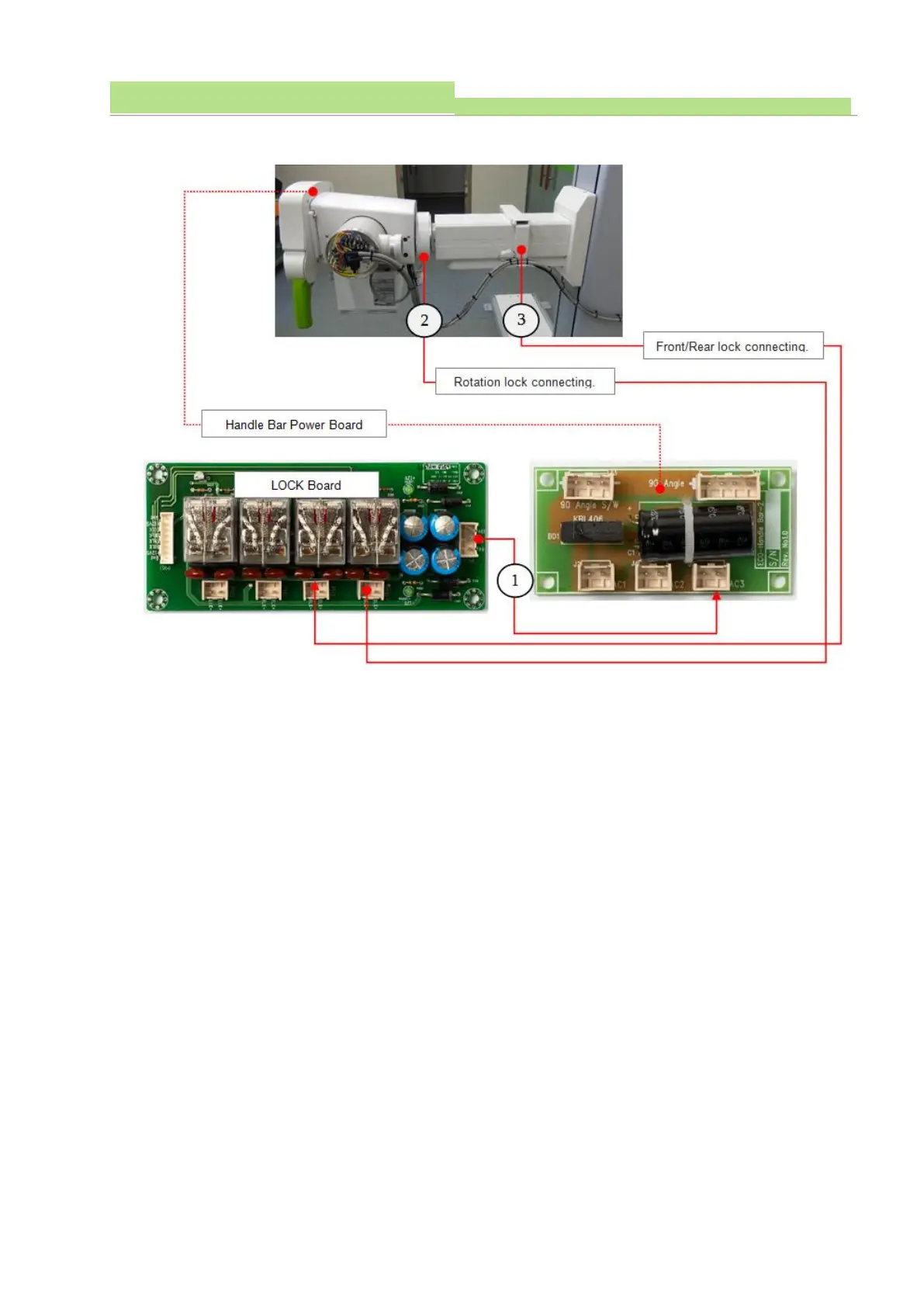

(1) Complete the wiring between A and B.
No.1: Connection between AC3 (Handle Bar Power) and P914 on Stand Lock Board.
No.2: Connection between P910 on Lock board and Front/Rear Lock.
No.3: Connection between P913 in Stand Lock Board and Tube Rotation Lock.
To Next Page
