5.11.4.2 Long rail (X-axis) Installation
● Complete Long Rail and measure its width.

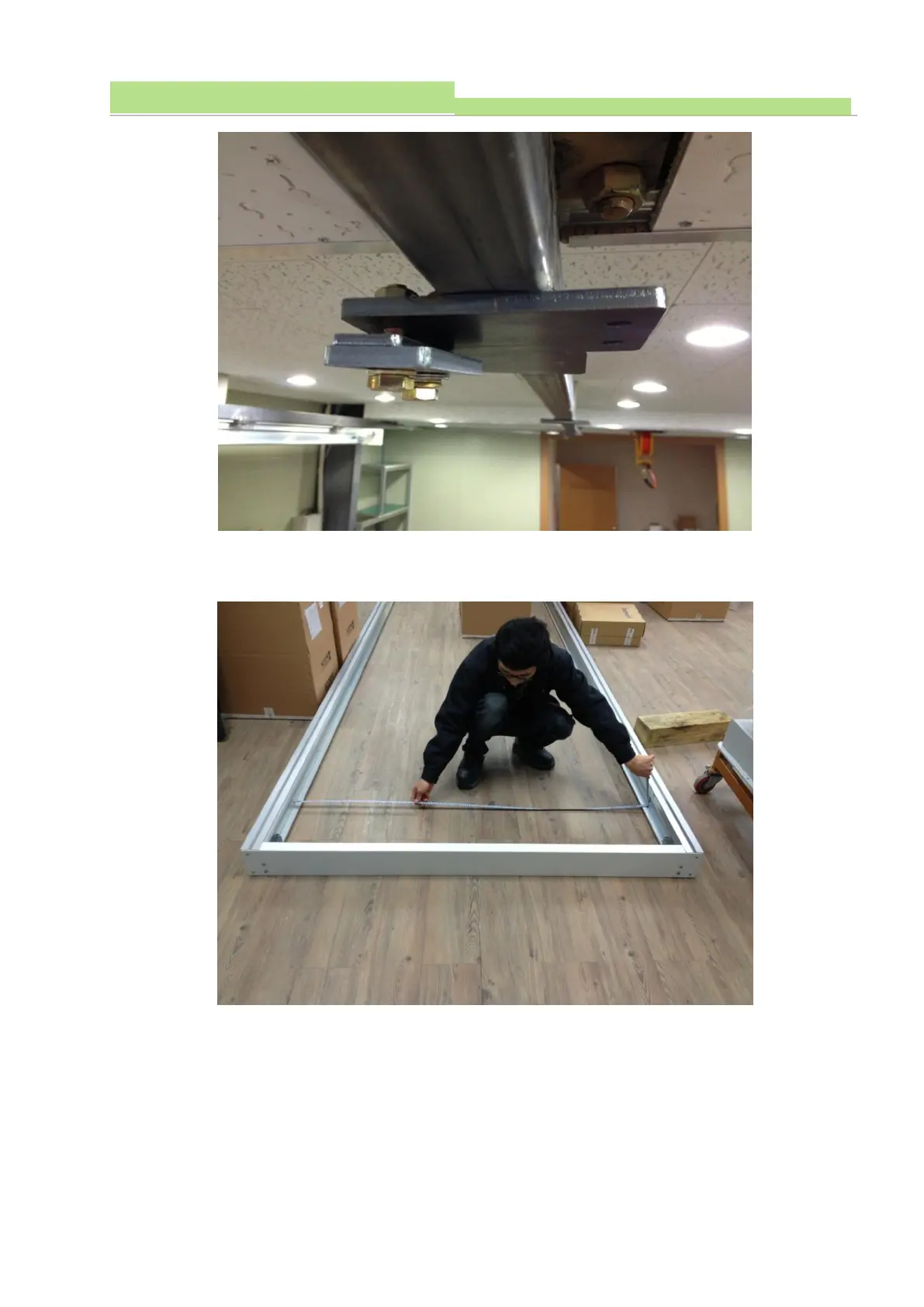

● And dismantle the rail to make separate rail frames of 1,2,3 and 4 like below photo.
