5.11.4.1 Installation procedure of Ceiling frame for Long rail

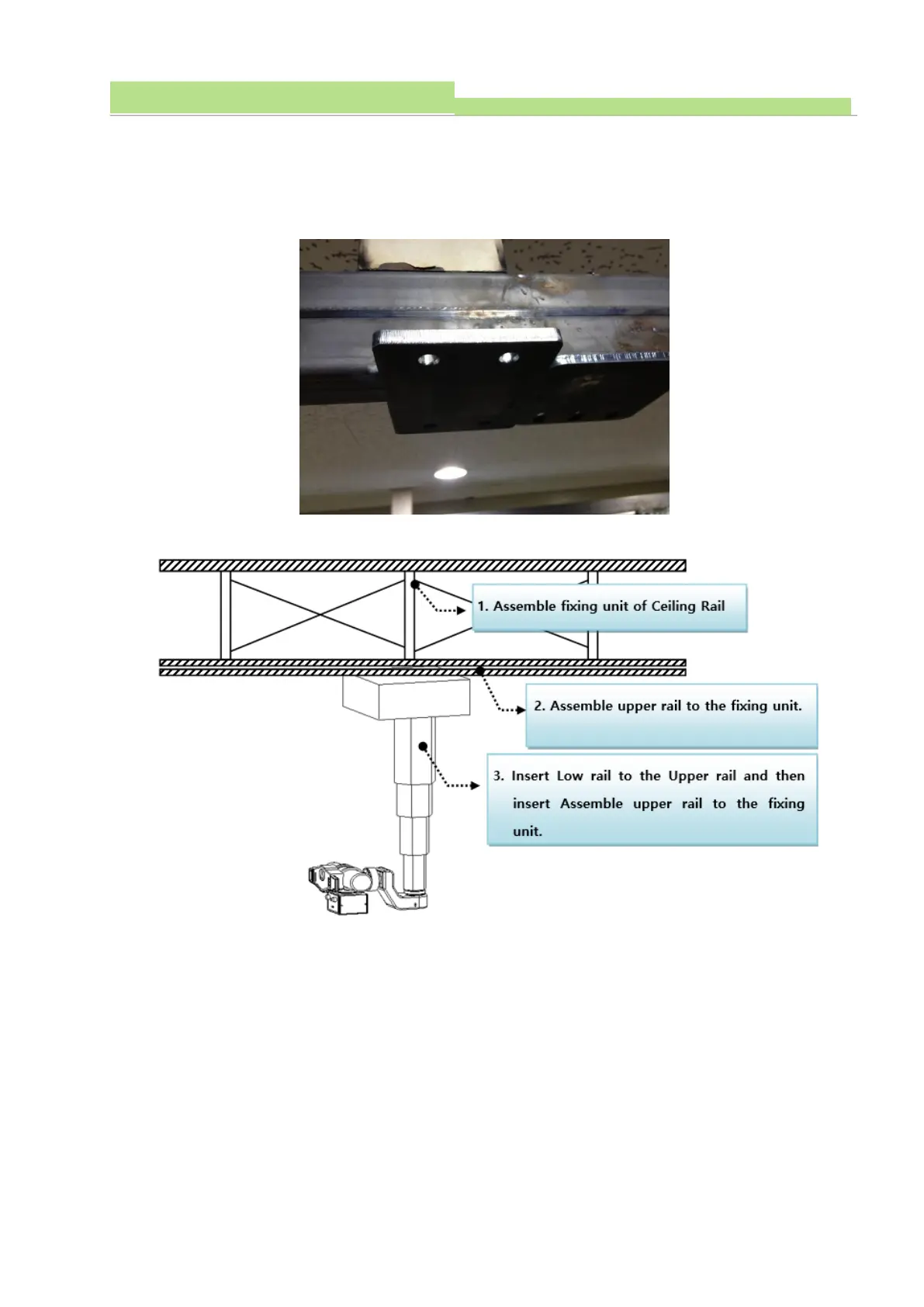

● The bracket is welded for Long rail installation. The bracket must be welded strong enough to hold
entire Long rail…the static position and hardness is very important!! (see photo below)
NOTE ▶
ECORAY does not provide this ceiling frame!!!
● The Check each location like this drawing.
● Bracket for long rail is well installed on the ceiling frame.
