Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
5.11.4.3 Lower rail (Y-axis) Installation

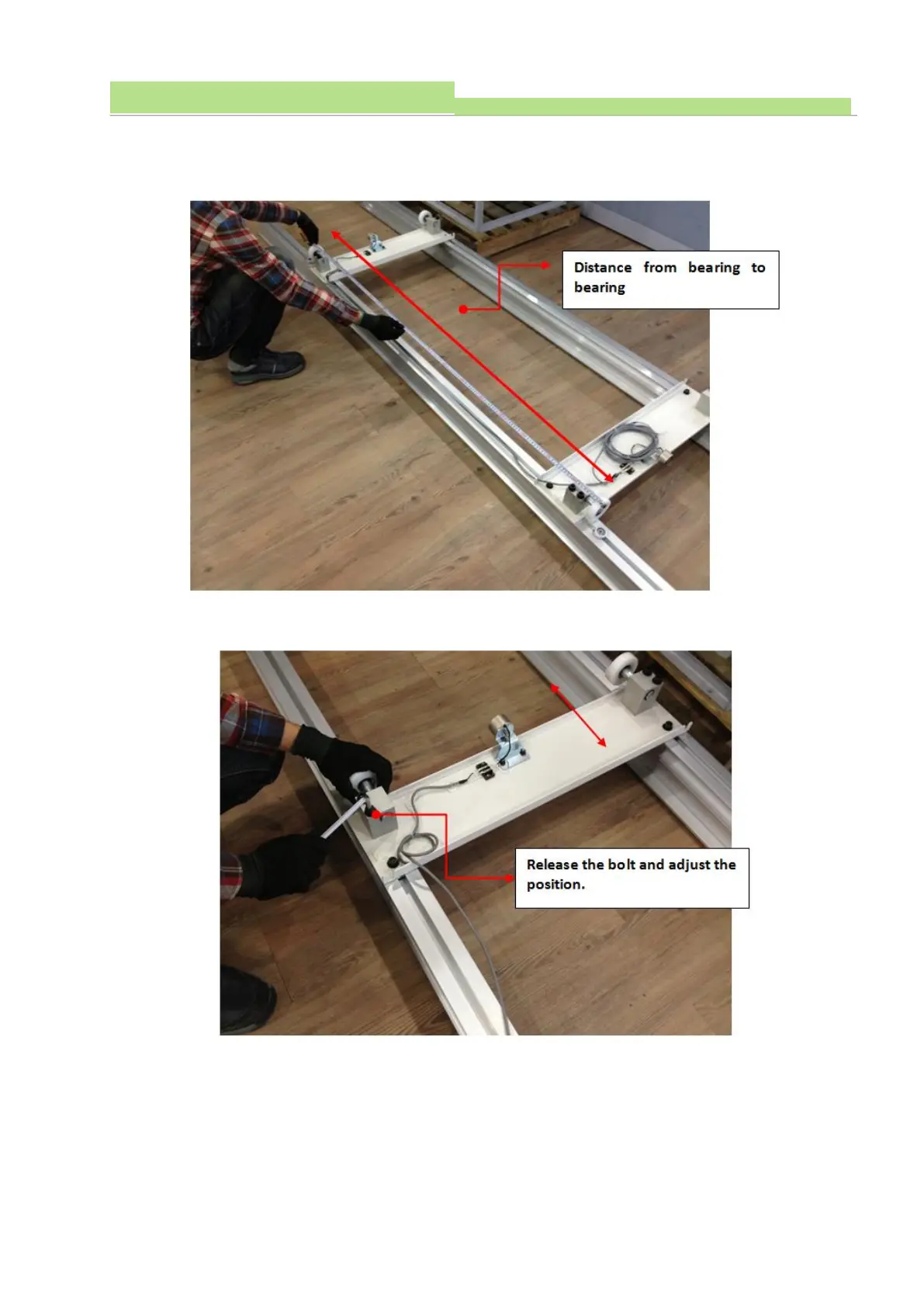

● Check and compare long rail width distance and short rail width.
● Measuring at short rail, you can check from the outside of bearings.
● If there is any deviation, just adjust it by moving short rail bearing plate position.
● Install Short rail (lower rail) into Long rail (upper rail) – insert the bearing into the slot.
