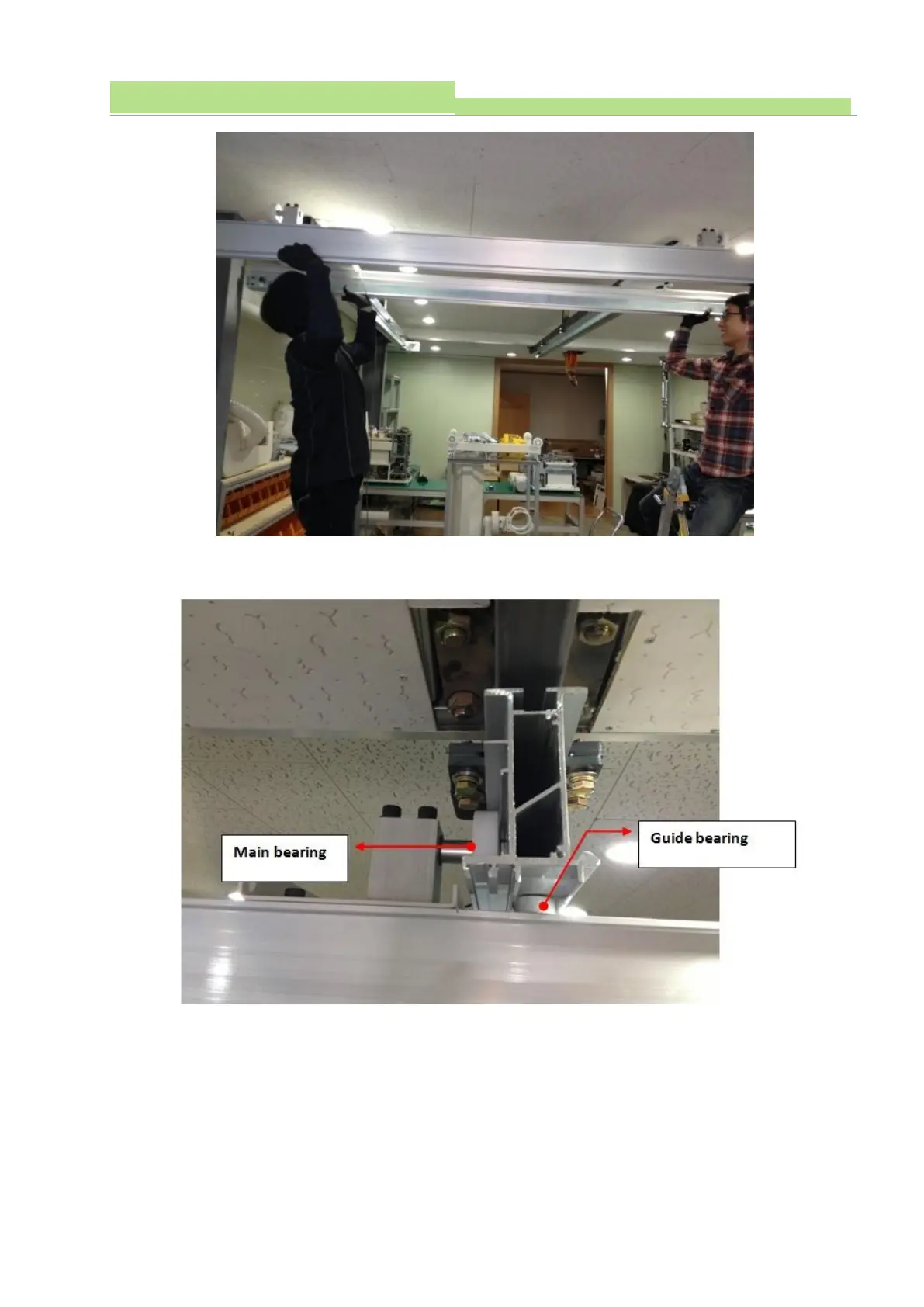

● When you insert the rail, please pay your attention to Main bearing (bigger one, upper side) and
Guide bearing (lower side smaller one).
5.11.4.4 LONG rail (X-axis) Cover assembly
● Install stoppers at each end of rails. (Total 4 stoppers)
