Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Presets
- 143 -

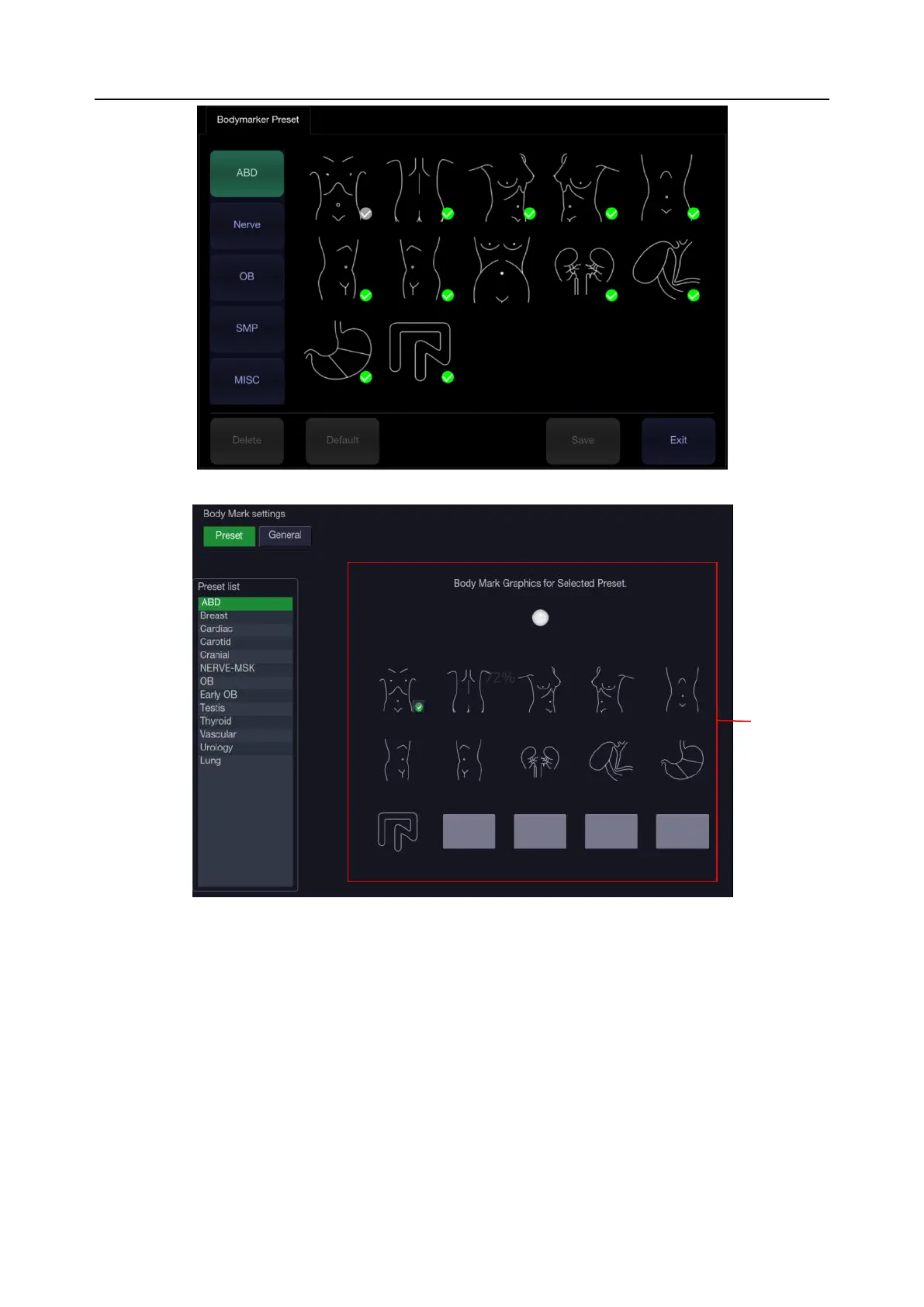

Figure 10-8 Body Mark Preset Touch Screen
Figure 10-9 Body Mark Preset Main Screen
Editing Body Mark Preset:
Select an Body Mark preset from the preset list on the left side of the screen, and then you can do the
followings to edit the body mark preset for the selected preset.
Adding a Body Mark to a Preset:
The touch screen provides Body Mark Library. Select one domain of Body Mark from the left side
of the touch screen, for example ABD, and its body mark graphics are displayed on the touch
screen. Press a body mark graphic on touch screen to switch it as checked or not, and then the
body mark graphic is enabled or disabled to current preset. When a Body Mark graphic is added
to current preset, it is marked with a green check mark in the Body Mark Library. When more than
one page of Body Mark graphics are added to current preset, the system will create another new
page, indicating by dots in pre-defined graphics area. Clicking the dots switches the page.
Pre-defined
graphics
area
To Next Page
