Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Imaging
- 33 -

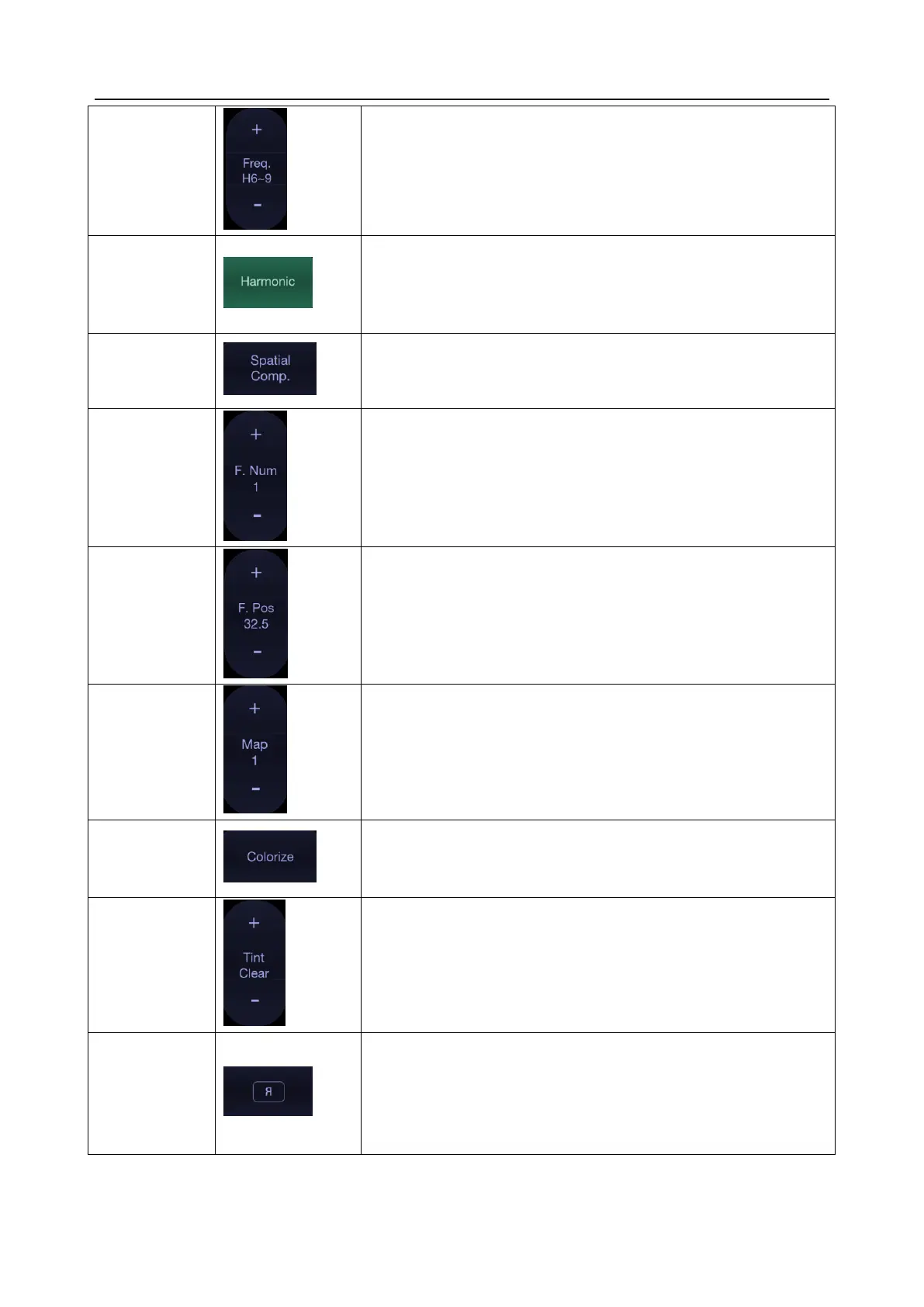

Frequency allows selection of the fundamental or harmonic)
frequencies used for imaging. The Harmonic option must be
invoked to access the harmonic frequencies. Frequency
selection is available during live imaging.
The Harmonic control invokes and exits harmonic imaging.
While in harmonic imaging the control is highlighted and an ‘H’
is displayed in the B-mode frequency field. Depending on the
transducer there may be multiple harmonic frequencies.
Spatial Compounding combines images fired from multiple
angles to reduce speckle, reduce shadow artifacts, and
enhance contrast. Spatial compounding is an on/off control.
Focus Number adjusts the number of foci is displayed. As the
number of foci increases, image uniformity across depth will
increase, but the frame rate will decrease.
Focus Position adjusts the depth of the focus or foci. Upward
presses move the focus shallower, regardless of the U/D invert
status of the image.
Gray Map adjusts the post processing map used on the B-mode
image. In general, higher map numbers correspond to more
contrast in the image.
The Colorize control adds a color tint to the B-mode image.
The Tint control changes the color tint being used. If Colorize
had been off, changing the Color map control will automatically
activate it.
The Left/Right invert control is indicated by a backward R and is
used to toggle the left/right orientation of the image. The Edan E
orientation marker at the top of the image switches with the
left/right invert to match the orientation marker on the
transducer.
