Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Imaging
- 38 -
To activate split screen with simultaneous live B/Color and live B.
The live B image without color and the same live B image with
color are simultaneously displayed on each side of the image field.
Freezing the image will freeze both sides simultaneously.
Cine review will review both sides simultaneously.
The Dynamic Range, or log compression, adjusts how echo
intensities are converted to brightness. A high dynamic range
presents a flatter, less contrasty color display, while a low dynamic
range presents a more contrasty color display. Only available in
PDI/DPDI mode.
Adjusts the line density to optimize the lateral resolution for the
best possible image. The higher the line density, the higher the
lateral resolution, but the lower the frame rate.
Adjusts the acoustic output power of the activated transducer. It is
only available in live imaging. Higher acoustic power numbers
correspond to increased color sensitivity and penetration, but the
ALARA principle should be followed in actual clinical situations.
The Auto push button automatically updates the gain and scale.
Each single press of the button renews the automatic optimization.
It is not available in TDI mode.
Hides/Shows the Color ROI box.
The Panorama control invokes the Color Panorama function. See
section 5.10 for details.
Displays the distribution of blood flow velocity in a histogram on
the left of image area.

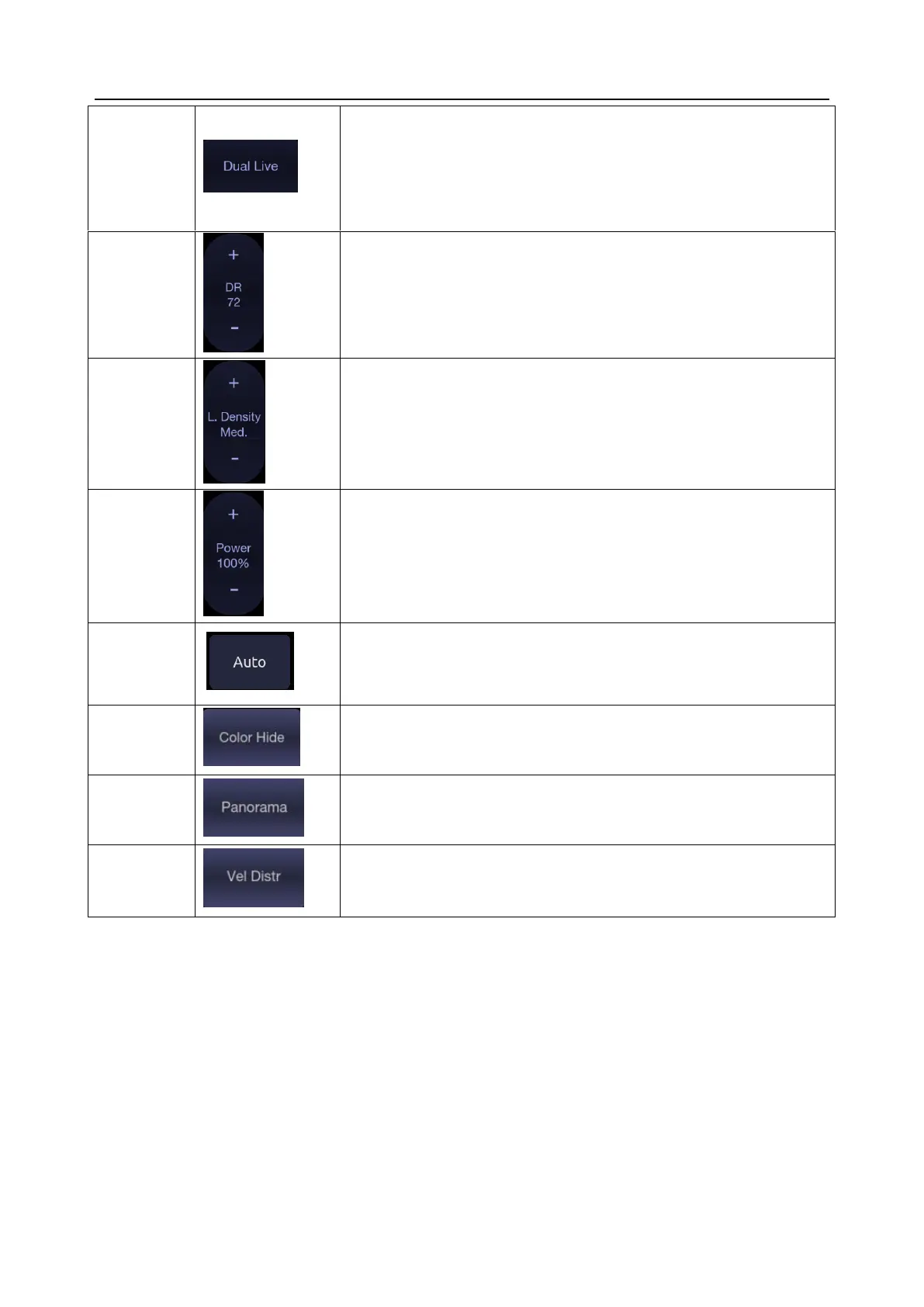

Table 5-2 Color Mode Touch Screen Controls
