M3 Vital Signs Monitor User Manual Introduction
- 16 -

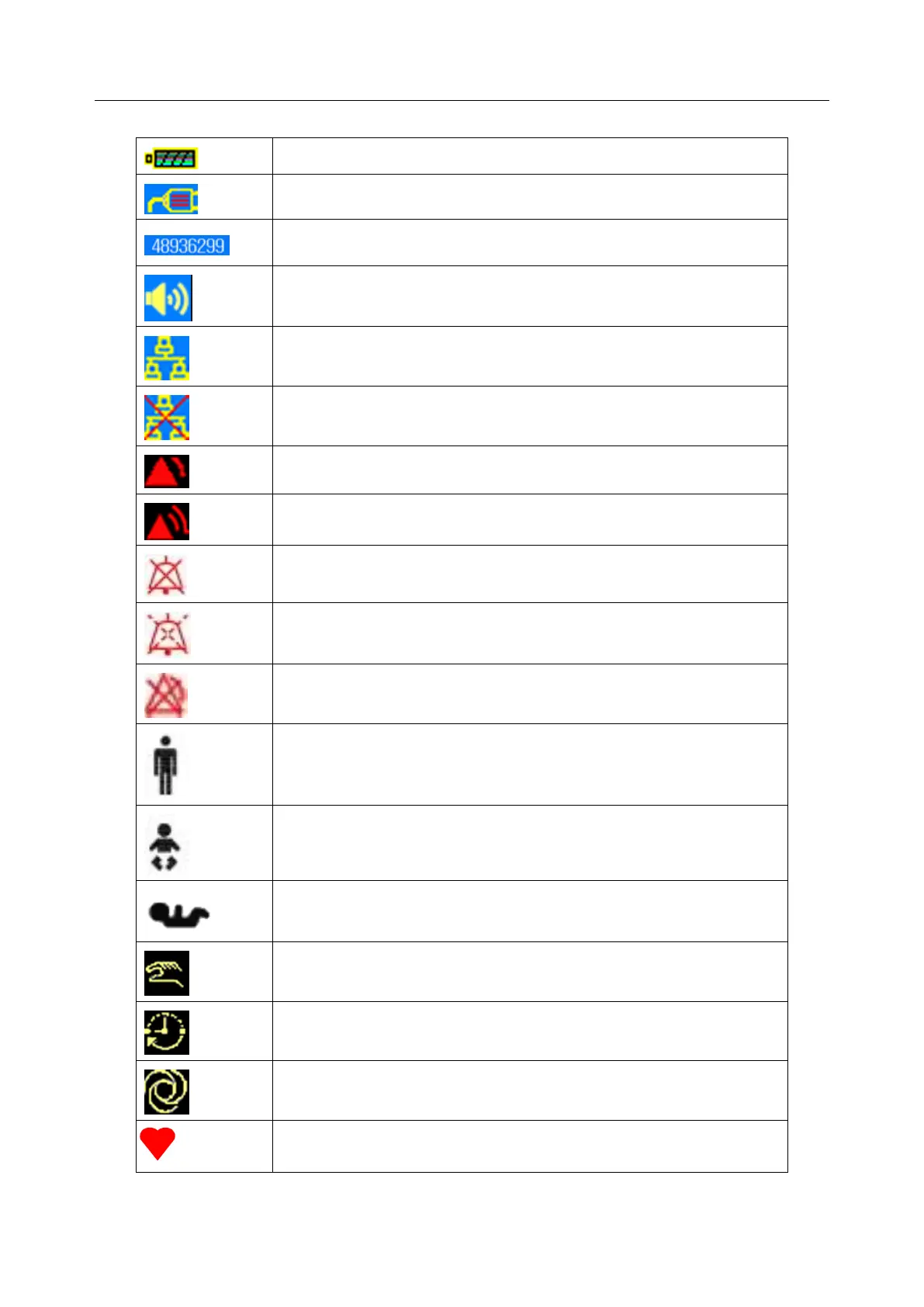

The icons on the interface and their meanings are as follows:
Battery status indicator
Connected to mains power supply
Barcode
Volume indicator
Network connection indicator
Network connection off
Medium/Low alarm
High alarm icon
Audio alarm off
Audio alarm paused
Parameter alarm off
Patient type: ADU
Patient type: PED
Patient type: NEO
NIBP manual mode
NIBP interval mode
NIBP continual mode
Heart beat
