Edwards SCU-800 User Manual

SCU-800 Control Unit for Turbomolecular Pump
MT-49E-101-G
Page 13
3
INSTALLATION
3 INSTALLATION
3.1 Unpacking
Check outer package for damage and that the delivery note corresponds to the purchase order. If the
STP control unit is damaged, contact Edwards or their distributor.
Note: It is recommended to keep the packaging materials, such as the corrugated fibreboard
container and cushioning material for possible re-use.
3.2 Front panel
1
LCD panel
10
BRAKE LED
2
FAILURE LED
11
STOP switch
3
RESET switch
12
START switch
4
REMOTE LED
13
ACCEL. LED
5
UP switch
14
NORMAL LED
6
MANUAL/REMOTE changeover switch
15
STP-LINK X8
7
SELECT switch
16
TEMP CTRL LED
8
ENTER switch
17
POWER LED
9
DOWN switch

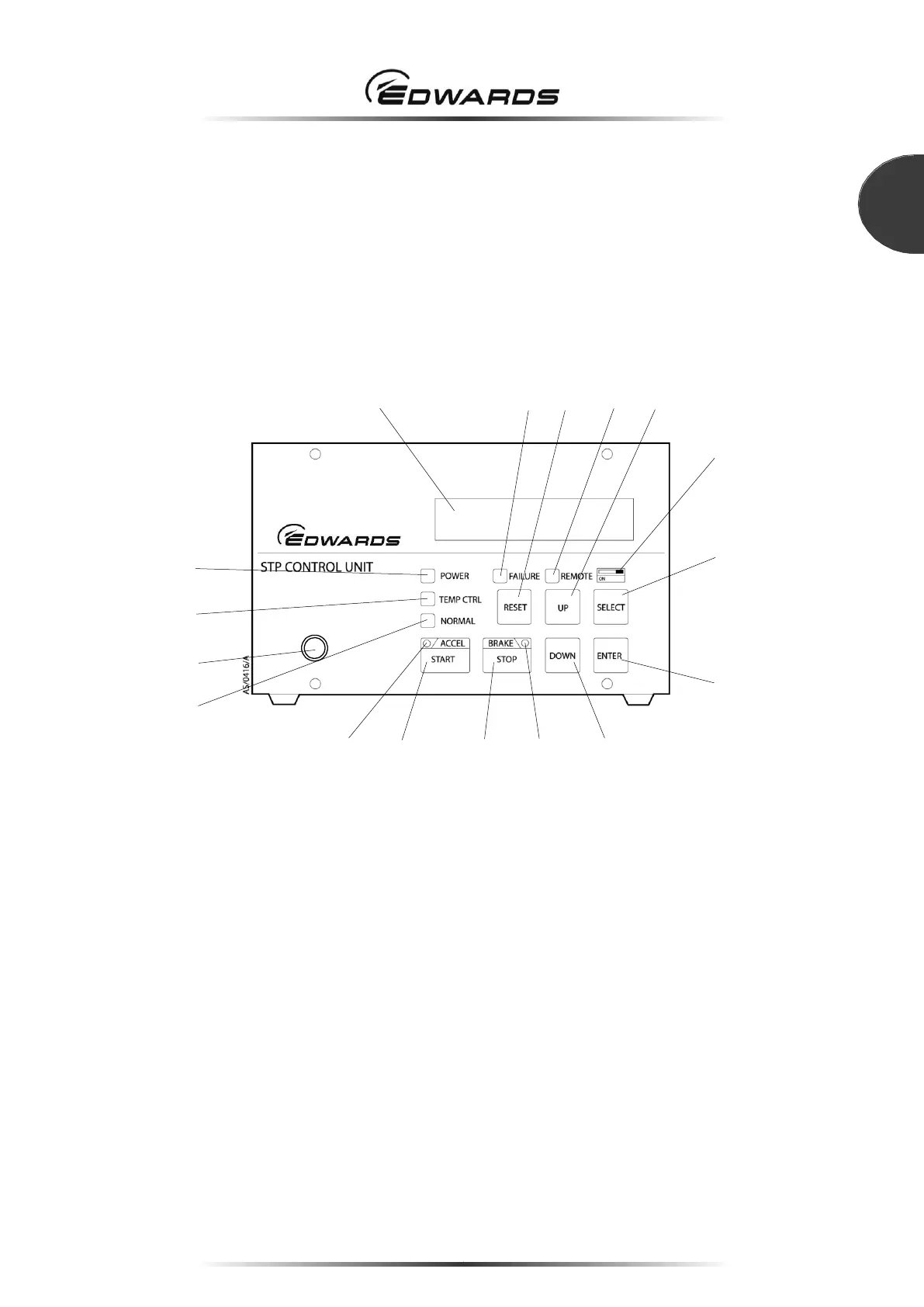

Figure 10 - SCU-800 front panel
Note: Refer to Table 2 for front panel functions.
1
2
4
3
17
7
5
6
8
9
10
12
13
14
16
15
ON
RESET UP
SELECT
DOWN
ENTER
START
STOP
ACCEL
BRAKE
POWER
TEMP CTRL
NORMAL
FAILURE
REMOTE
STP CONTROL UNIT
X8 STP-LINK
11
