10. Move the external PV isolator switch to the closed (ON) position (if equipped). Set the PV
switch on the side of the inverter to the closed (ON) position.
11. If using AC input, set the external breaker between input panel and inverter to the closed
(ON) position. Next, set the inverter GRID breaker to the closed (ON) position.
12. Power on the master inverter (the inverter communicating with the battery bank) using the
inverter power switch.

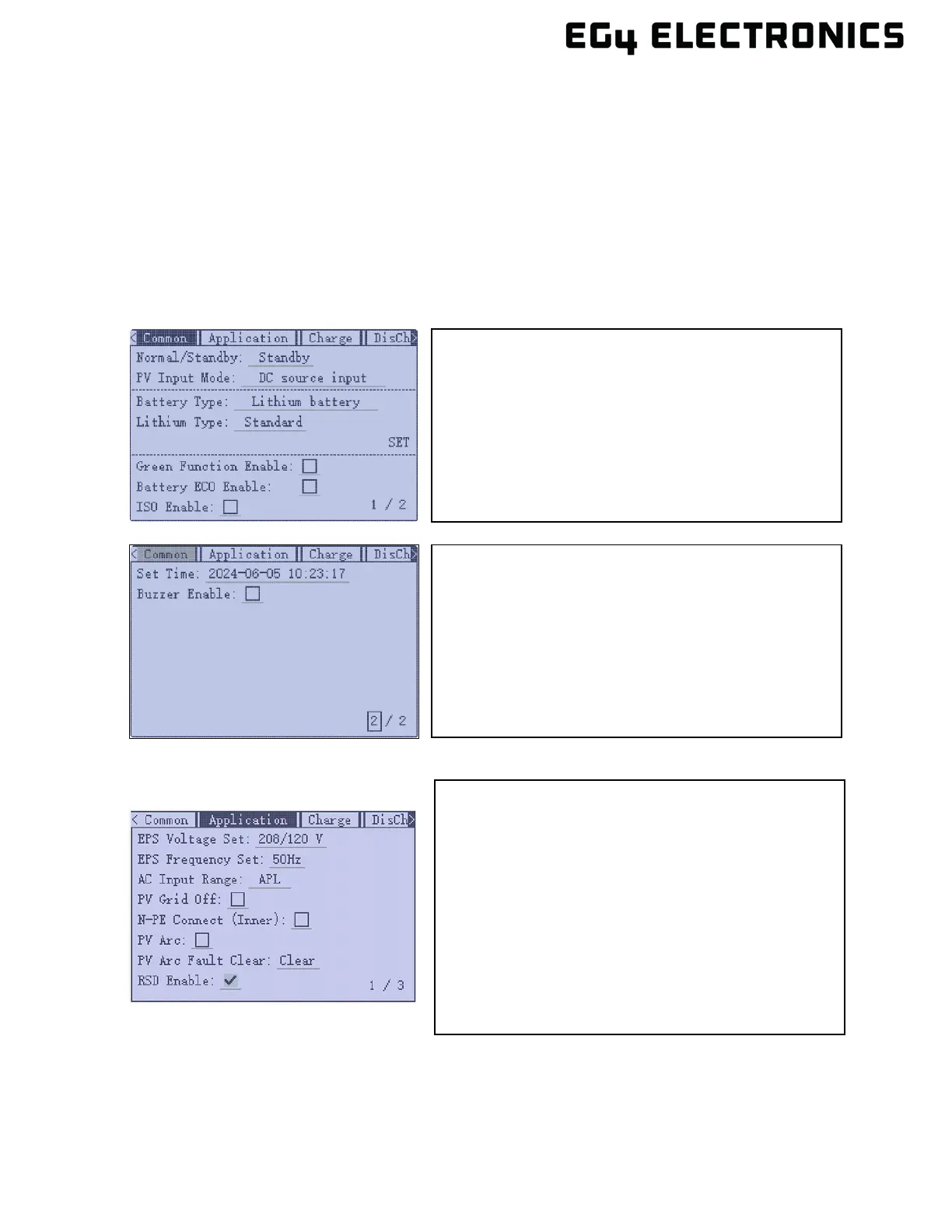

13. Configure the following settings using the inverter display panel (see section 9 for more
information on using the display panel).
• Common Tab (Pages 1 and 2)
• Application Tab (Pages 1 and 3)
EPS Voltage Set: Verify the voltage is set to 240VAC.
EPS Frequency Set: Verify frequency is set to 60Hz.
AC Input Range: Choose APL or UPS. UPS: supports
AC voltage range 170V – 280V and APL supports
voltage range from 90V – 280V. UPS will have a faster
switchover time.
N-PE Connect: Normally unchecked when using AC
input from the grid. If there is not grid input, verify where
the neutral ground bond is setup. Consult with a
qualified electrician for help if needed.
PV Input Mode: Select one of the following:
• DC source input
• PV1 and PV2 independent
• PV1 and PV2 parallel
Battery Type: Select No battery, Lead Acid or Lithium.
Lithium Type: Select a supported brand of battery.
(Select “0:EG4” if using an EG4
®
lithium battery)
Set Time: Set the current date and time.
Buzzer Enable: Remove the check mark to disable the
beep when the display buttons are pressed.
To Next Page
