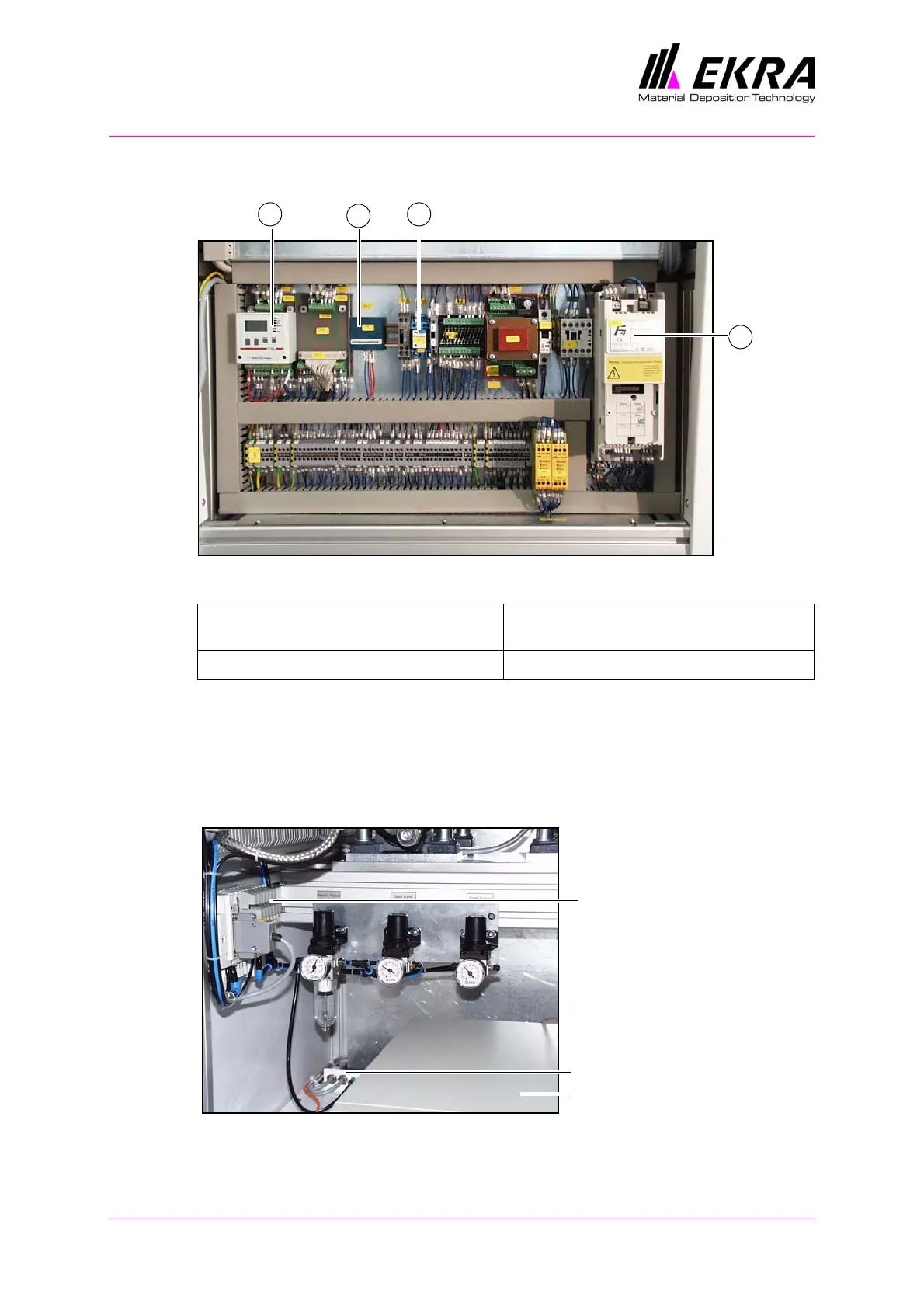

Ekra E1 - Electrical and Pneumatic Systems

Chapter 3 Description of the Machine
3-3
E1 Semi-automatic screen printer
System Manual
EKRA / Doku Eisermann 03_SYSTEM_PDF.FM
30.8.02
Electrical equipment
Fig. 4. Machine control
The electrical equipment including the machine control unit is located
behind the front panel. This is fixed in place with four screws.
PC positioning system MOPS
Fig. 5. PC positioning system / rear of machine
1 Frequency converter,
printing table drive
3 Ballast module, delay, printing table
2 Changeover squeegee drive/snap-off 4 Motor control squeegee drive/snap-off
24
1
3
Valve terminal
PC with MOPS image processing
Cable feed-through
