Electrolux E30GF74GPS - Removing the Griddle Igniter Bracket; Removing the Griddle Burner; Removing the Center Divider (30 Inch Models)

88
89

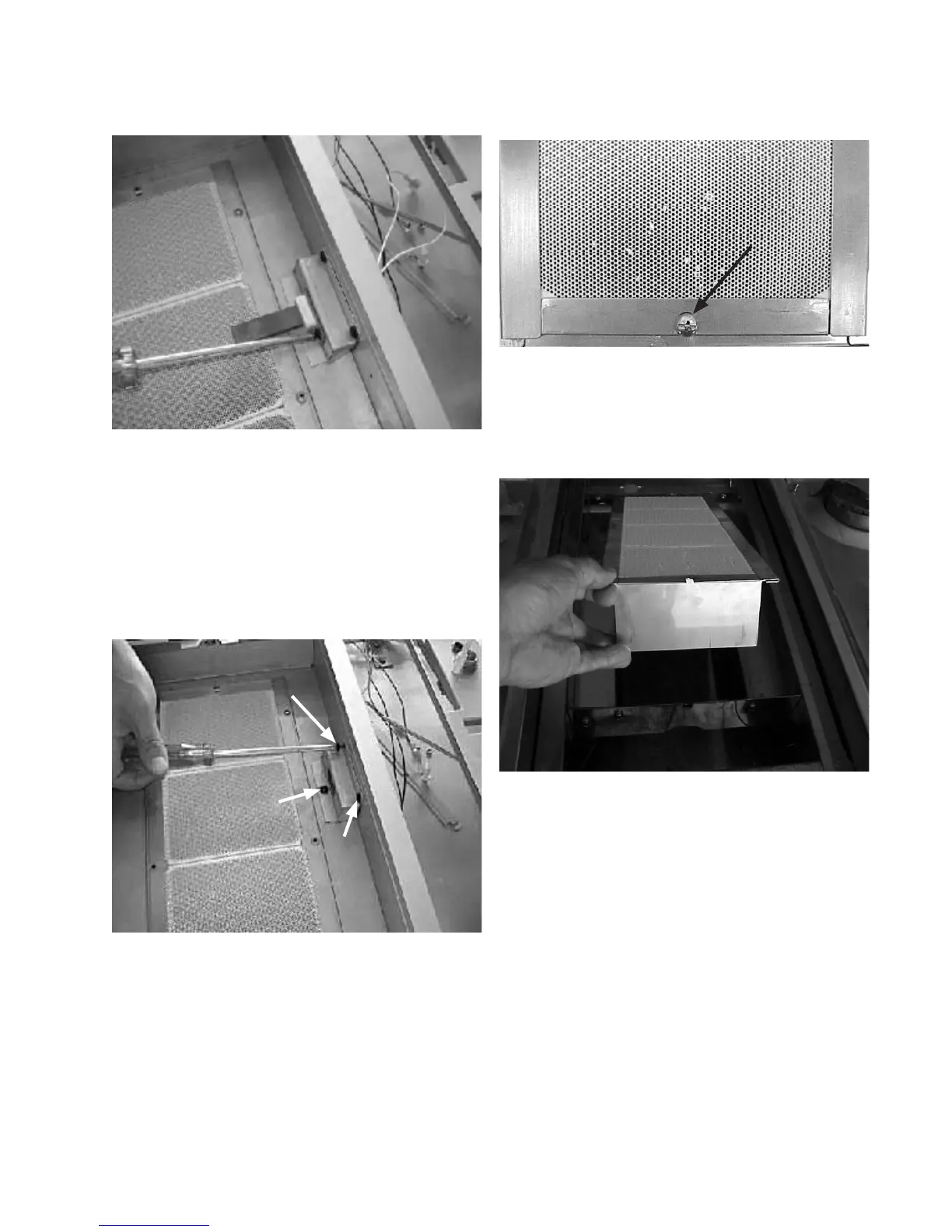

3. Removed the screw holding the igniter to igniter
bracket and pull the igniter out.
Removing the griddle igniter bracket:
1. Disconnect power, and remove the griddle
igniter.
2. Remove the (3) screws holding the igniter
bracket to the wall of the griddle burner
frame and lift the bracket out.
Removing the griddle burner:
1. Disconnect power, remove the griddle igniter
 anddisconnectthegaslinetothegriddleorice
assembly.
2. Remove the screw holding the burner to the
frame assembly.
3. Lift up on the front of the burner until it clears
the frame assembly, then pull the burner
forward and lift it out.
Removing the center divider:
(30 inch models)
1. Disconnect power, remove the backguard.
