Due to high voltage in the range of 7000 Volts (amplitude), there should be no

measurement on the rectifier under power. If no spare rectifier available to

exchange, then test by using a scope according to the following drawing.

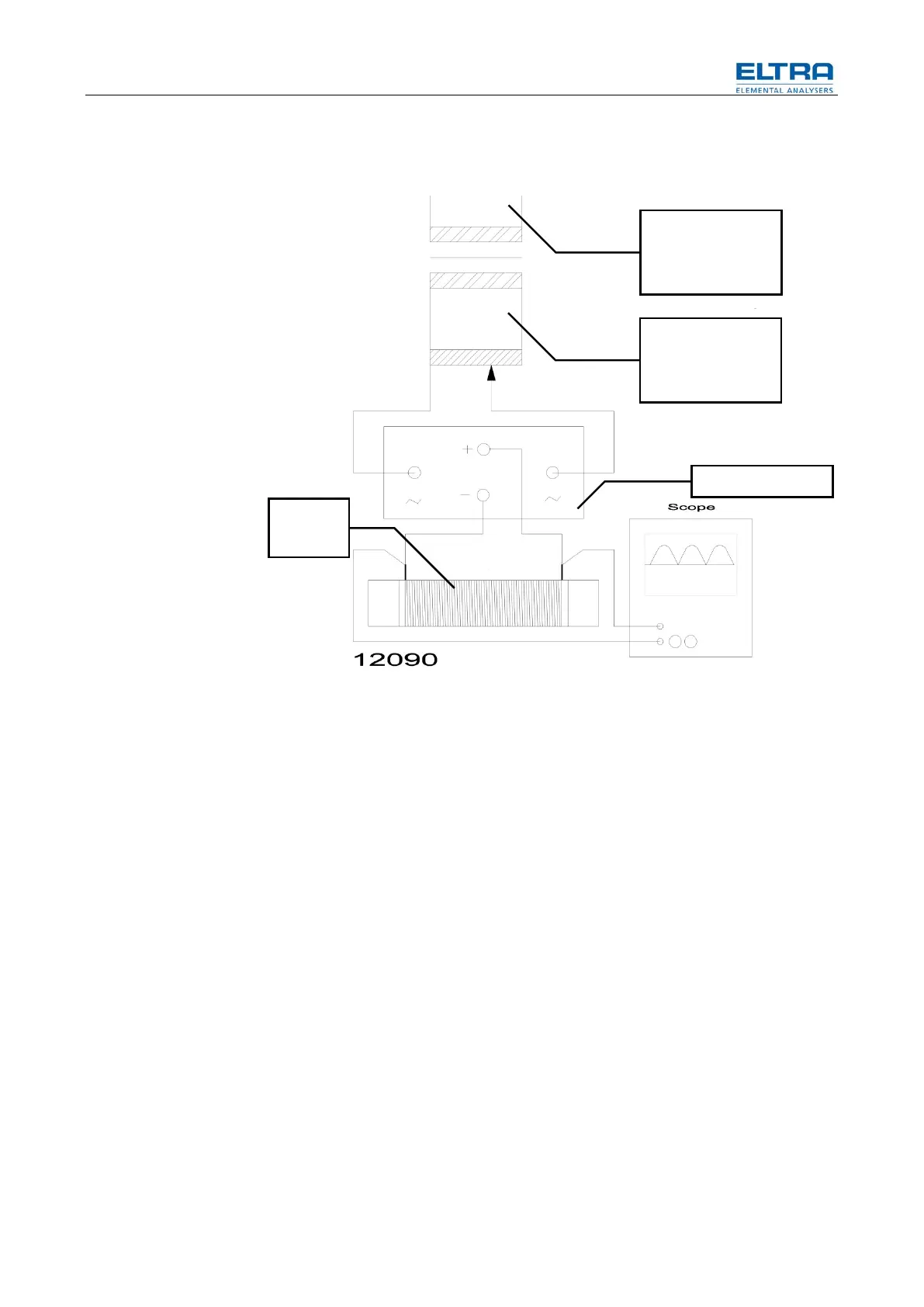

Fig. 19: Rectifier

220 VAC

Insulating

transformer

220 VAC

Adjustable

transformer

Rectifier

about

4000 Ω
