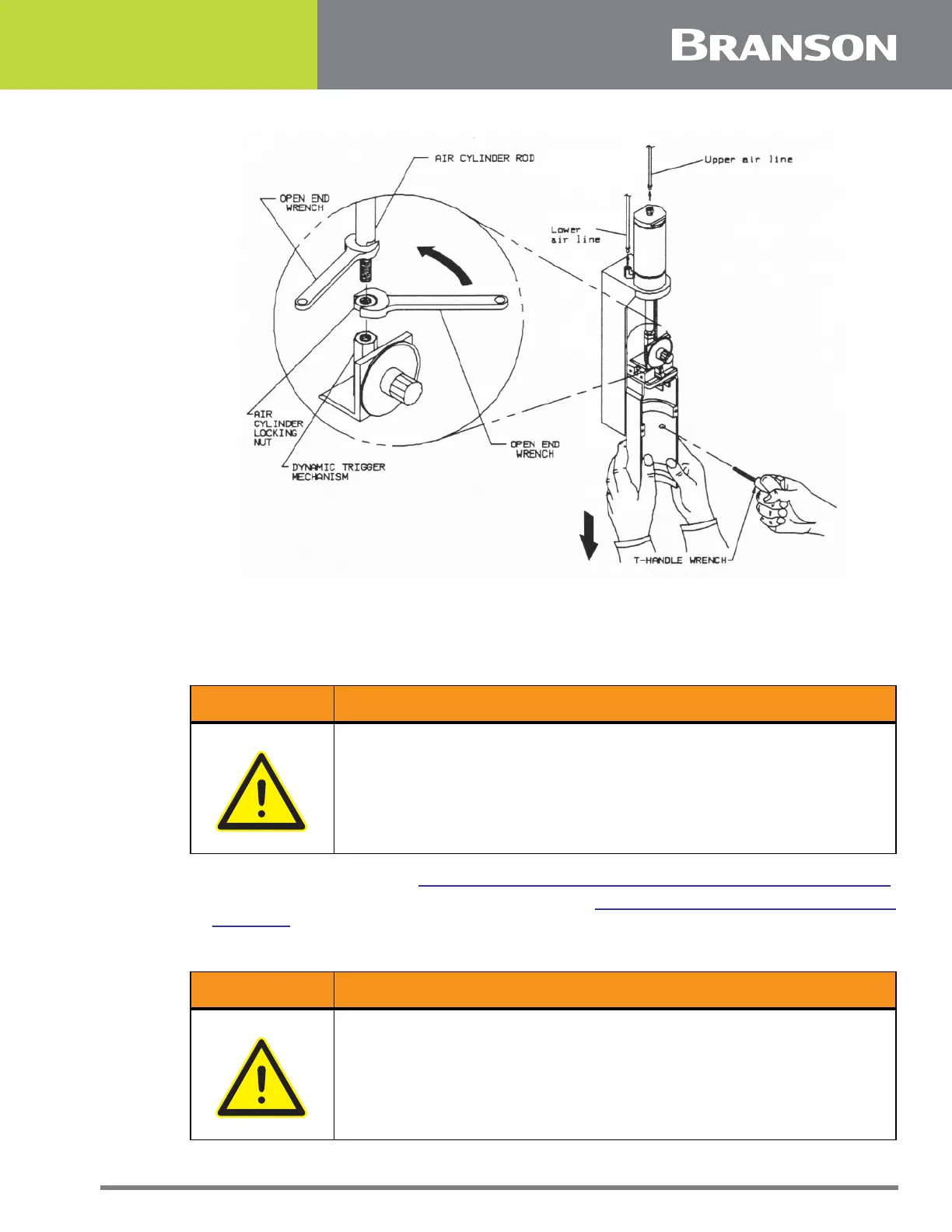

Figure 5.26 Removing the Air Cylinder, Part A
5.5.10.1 Removing the Air Cylinder
1. Turn off the welder and unplug main power.
2. Turn air pressure to zero, then disconnect main air supply.
3. Open the left side cover. See
5.3 Opening and Removing the Left Side Cover (EDP 100-032-338).
4. Remove the Converter-Booster-Horn Stack (Section
5.5.8.1 Removing the Converter-Booster-
Horn Stack).
5. Remove the Trigger Guard.
WARNING General Warning
Turn air pressure to zero and disconnect the main air supply. Failure
to do this leave the welder under potentially dangerous air pressure.
WARNING General Warning
Pinch Warning.
