44 1019567 REV. 03

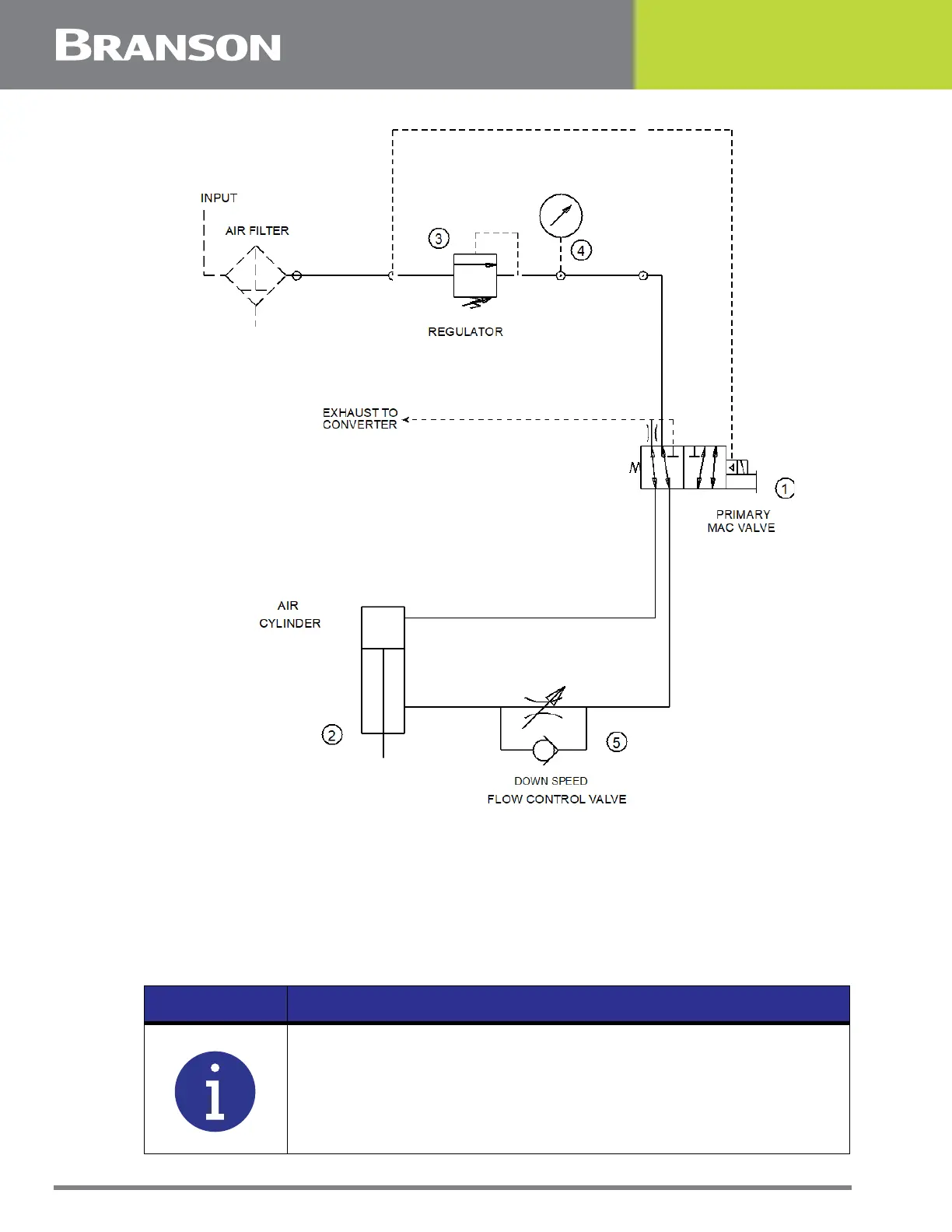

Figure 3.7 Pneumatic Schematic
3.3.4 Pneumatic Circuit Descriptions
The 5-micron Air Filter at the input to the pneumatic system removes contaminates from
the main air supply before the air enters the pneumatic system. The main air supply
connects to the 2000 IW/IW+ pneumatic system via a 1/4 in. NPT fitting on the Air Filter.
(For instructions on hooking up the main air supply, refer to your Operating Manual).
NOTICE
Make sure your main air supply provides compressed, dry, and
unlubricated air.
