122 1019567 REV. 03

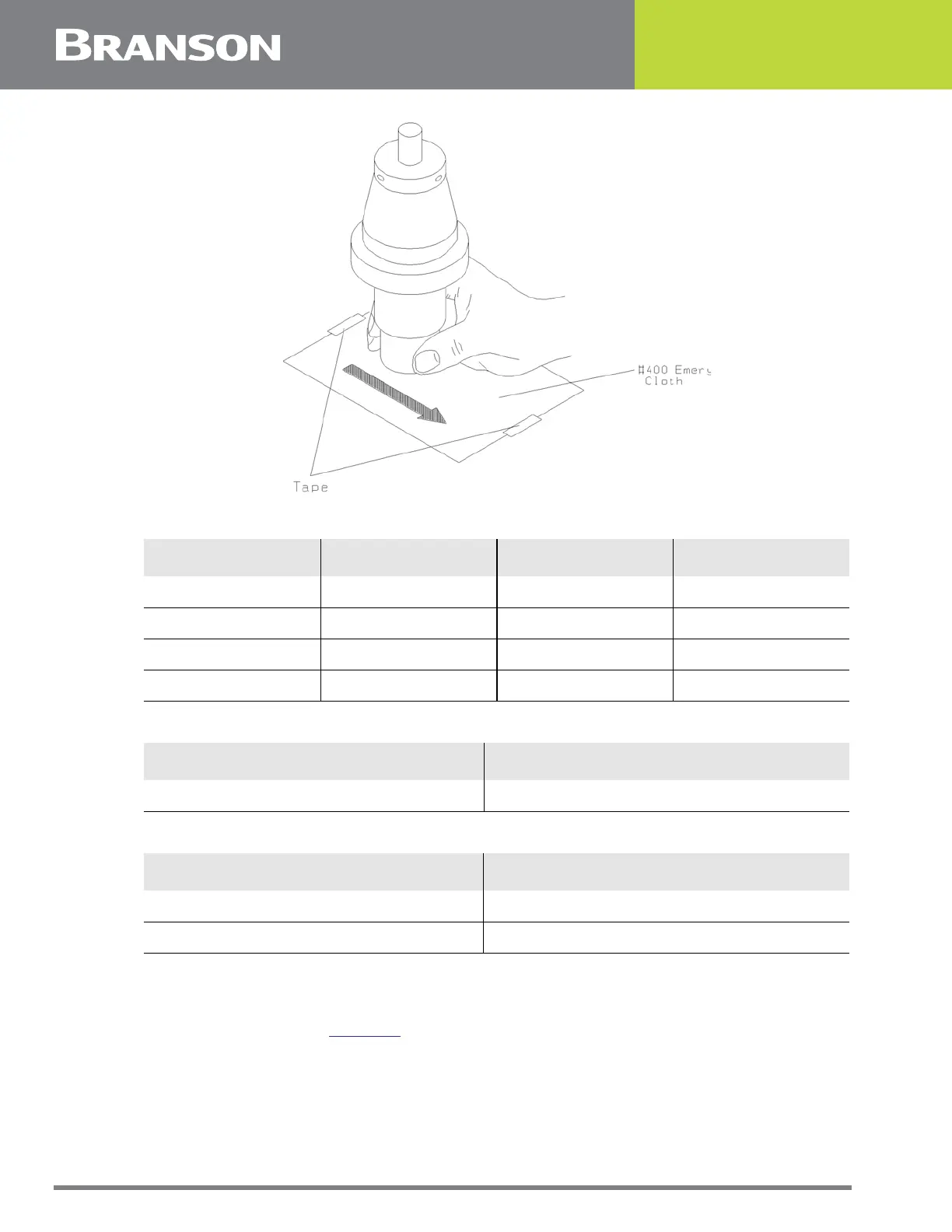

Figure 6.1 Reconditioning Stack Surfaces
6.1.2 Routine Component Replacement
The lifetime of certain parts is based on the number of cycles the unit has completed, or
on hours of operation. Table 6.5 lists the average number of hours or cycles one should
use in determining when components should be replaced. Ambient operating temperature
also affects lifetime. Higher temperatures reduce the number of cycles and hours before
replacement is suggested. The charts below are for equipment operating at a temperature
of 72 to 75
o
F (22 - 24
o
C).
The lifetime of system pneumatic components is influenced by the quality of the
compressed air provided. All Branson systems require clean, dry, (normal) factory
Table 6.2 Stud Torque Specifications
Frequency Stud Size Torque Part Number
20kHz 3/8-24 x 1 in. 290 in lbs/33 Nm 100-098-120
20kHz 3/8-24 x 1-1/4 in. 290 in lbs/33 Nm 100-098-121
20kHz 1/2-20 x 1-1/4 in. 450 in lbs/47 Nm 100-098-370
20kHz 1/2-20 x 1-1/2 in. 450 in lbs/47 Nm 100-098-123
Table 6.3 Booster Interface Torque Specifications
Booster Application Torque
20 kHz 220 in lbs/25 Nm
Table 6.4 Tip Interface Specifications
Tip Thread Torque
1/4-28 110 in lbs/12.42 Nm
3/8-24 180 in lbs/20.33 Nm
