The Ultrasonic Power Supply Module consists of two components, the power board and
control board. You cannot replace an individual board. If it has been determined that a
portion of either board has failed, you must replace the entire Power Supply Module.

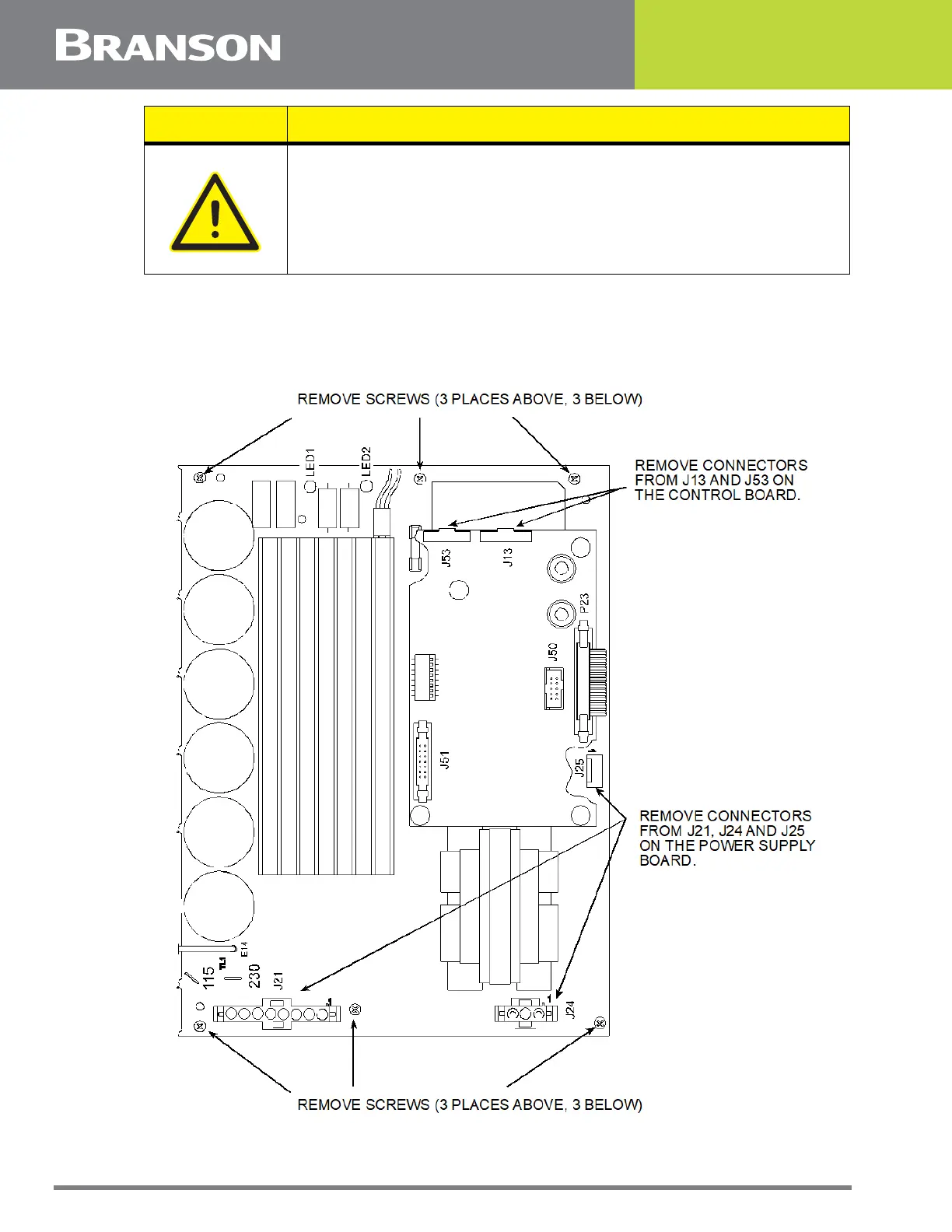

Figure 5.5 Removing the Ultrasonic Power Supply Module
CAUTION General Warning
Take precautions not to leave any loose objects (such as screws,
bolts, nuts, and so forth) in the welder. If you drop an object into the
welder, retrieve the object immediately.
