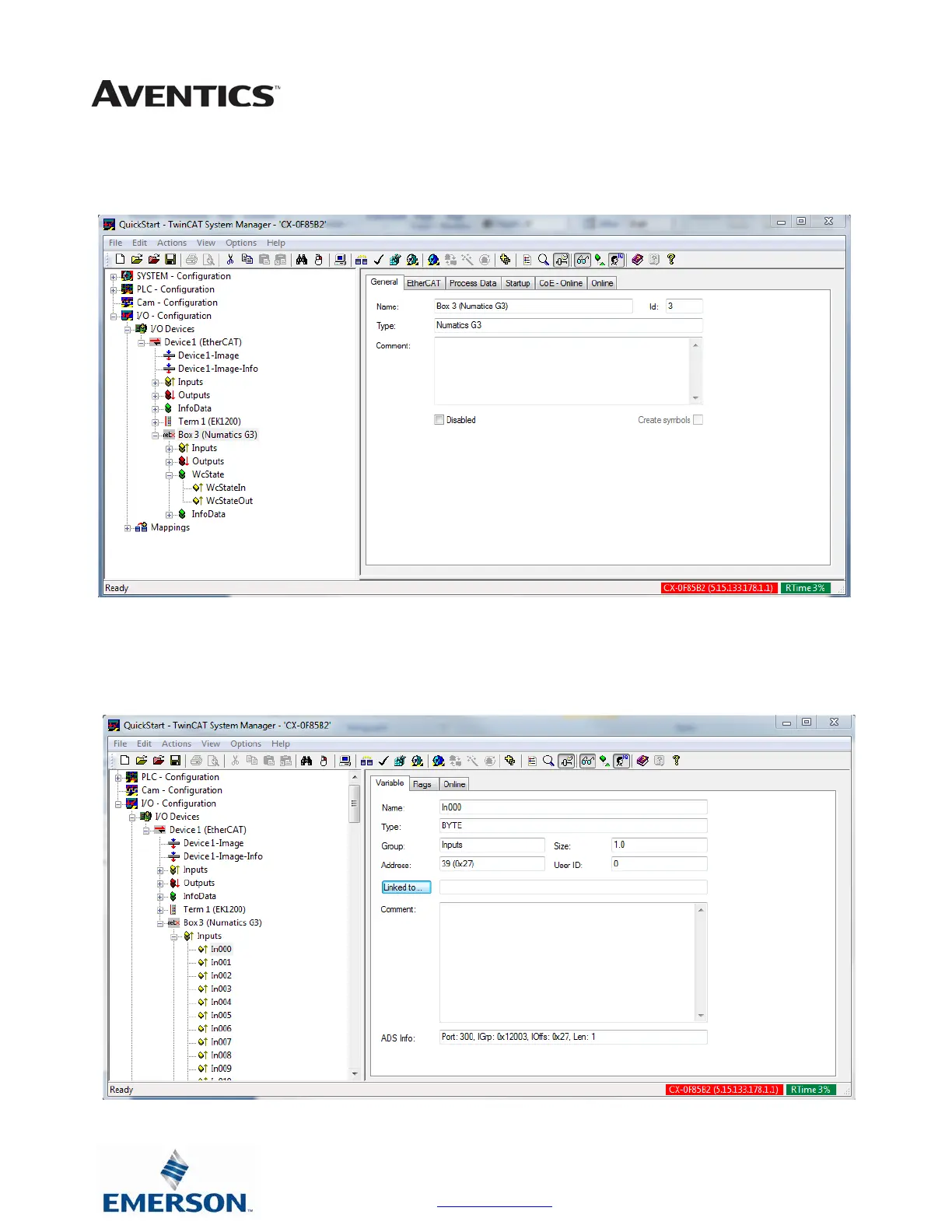

Create the G3 I/O mapping
Expand the “Numatics G3” Box (device)
Press the “Linked to” button to select an input variable (byte) to map to the G3 manifold
*Note- the I/O variables must already exist within the associated PLC Control Project
