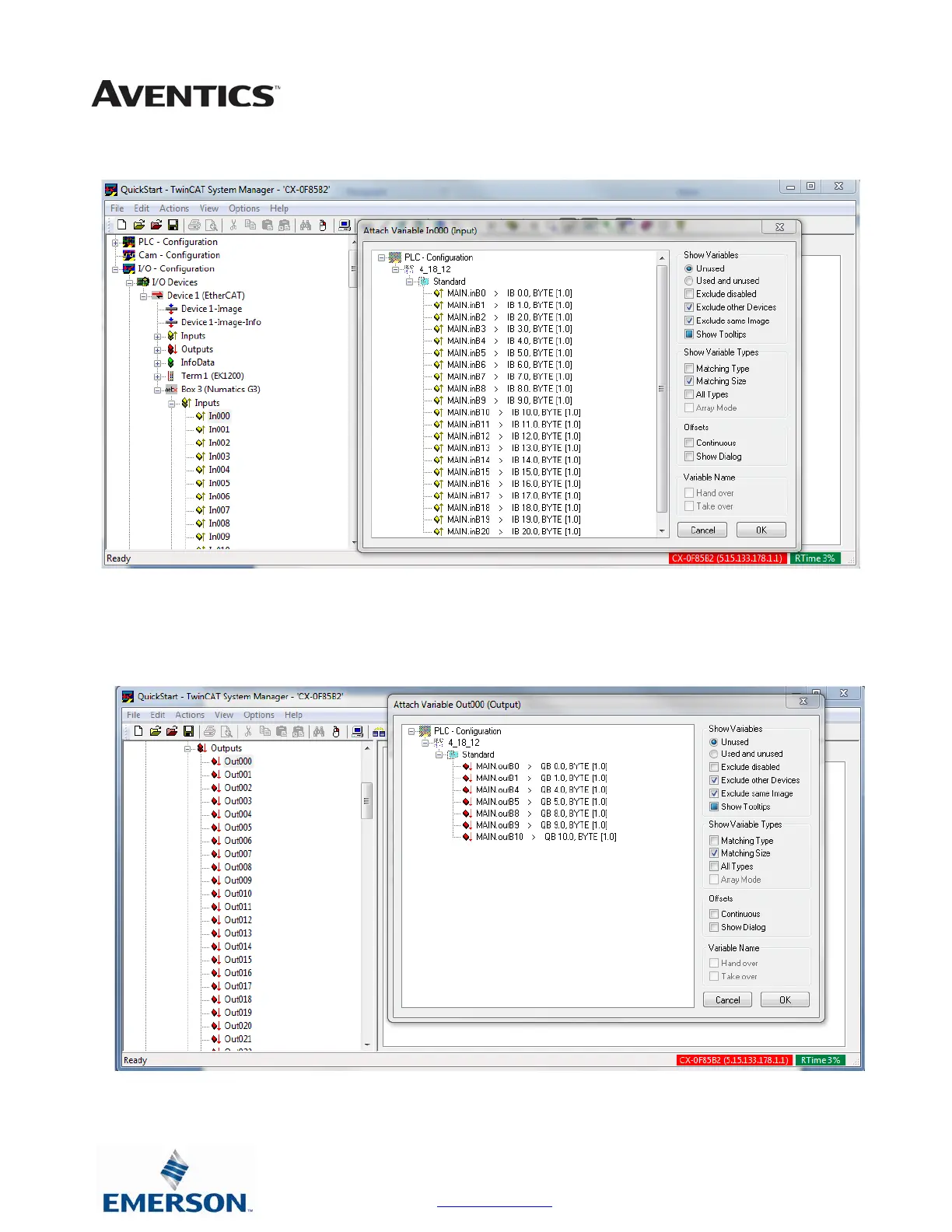

Select the Variable tag(s) from the PLC program to associate with the G3 Input Byte(s)
Expand the Numatics G3 Outputs list
Press the “Linked to” button to select an output variable (byte) to map to the G3 manifold
Select the Variable tag(s) from the PLC program to associate with the G3 Output Byte(s)
