G3 Series EtherCAT
TM
Technical Manual
14-160
Subject to change without notice
www.asco.com/g3

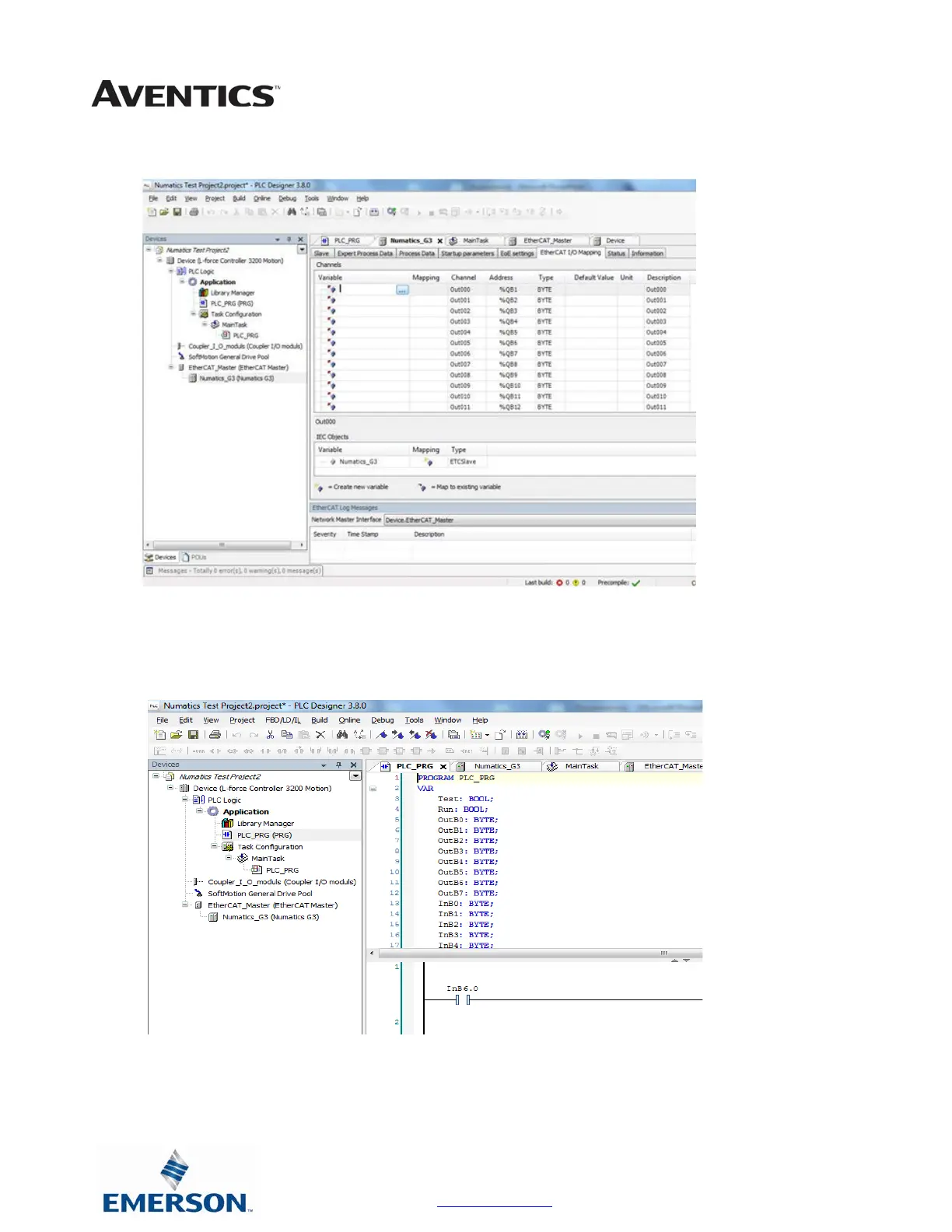

Select the PLC Program Tab
Create the G3 I/O Program (Byte) Variables that will connect to the G3 I/O map
Example Outputs – OutB0, OutB1, OutB2 etc.
Example Inputs – InB0, InB1, InB2 etc.
To Next Page
