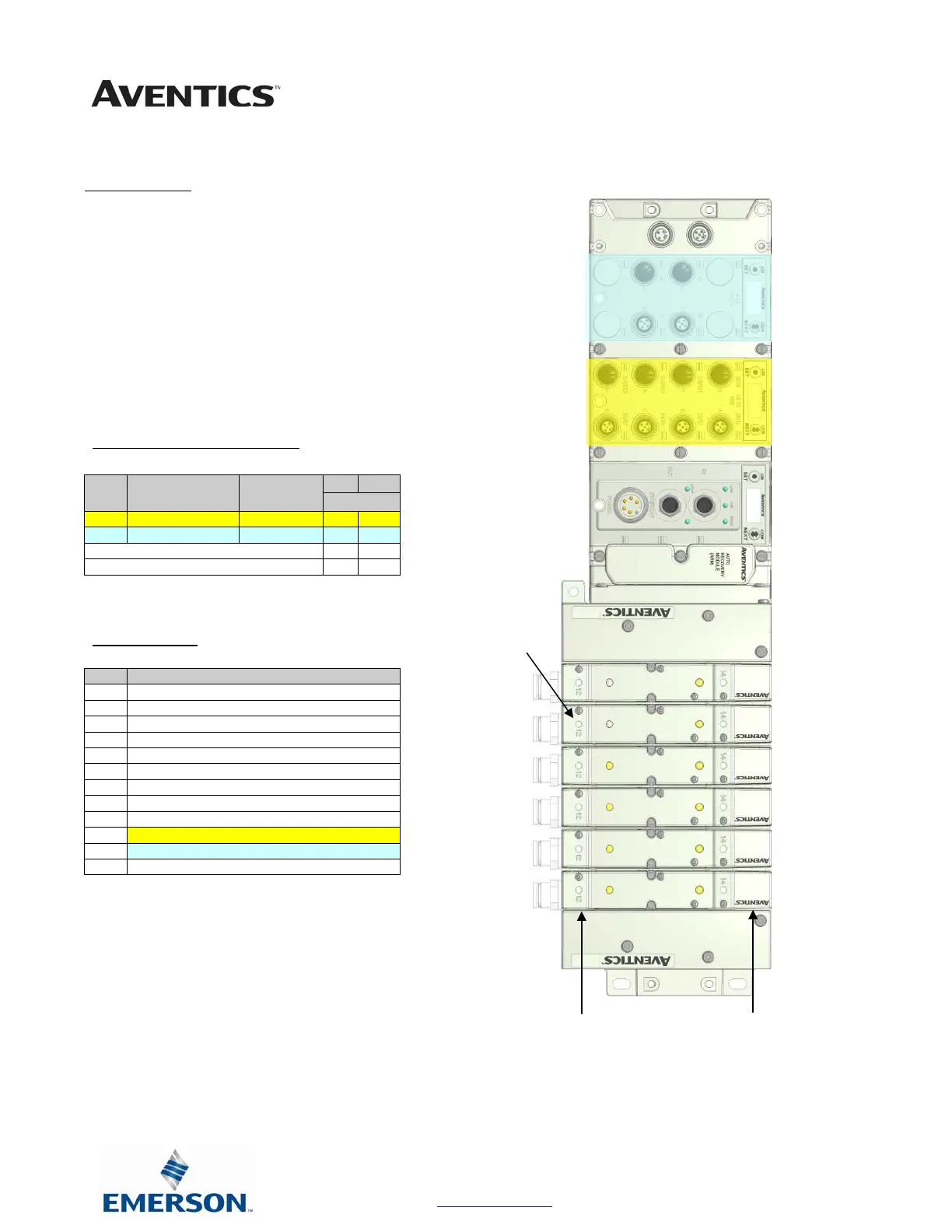

I/O Mapping Examples
Manifold I/O Configuration
Pos
No.
Module Type Part No.
In
Out
Bytes
1
16I PNP
240-205
3
0
2
4AI Analog
240-212
10
0
Diagnostic Word
2
0
Local Valve Size
4
4
Total: 19 4
How to Order
Qty
Part Number
1
8502AV3F300VA00
2
R502A1B10MA00F1
1
K502AMM22MA0010
1
R502A1B10MA00F1
1
R502A1B40MA00F1
1
K502AMM22MA0010
2
R502A1B40MA00F1
1
K502AMM22MA0010
1
G3EC102R0E44
1
240-205
1
240-212
ASSEMBLED
Assumed Settings
Example No. 1
a. Double Z-Boards
TM
used with all valves
b. I/O Modules and mapping schemes are identified by their
corresponding color.
c. I/O Status bits are enabled
d. Diagnostic Word is enabled
When the 14 End
Solenoid is
energized, the 4 port
is pressurized
When the 12 End
Solenoid is
energized, the 2 port
is pressurized
0
2
4
6
8
10
1
3
5
7
9
11
Valve Coil
Number
