Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
8-75
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

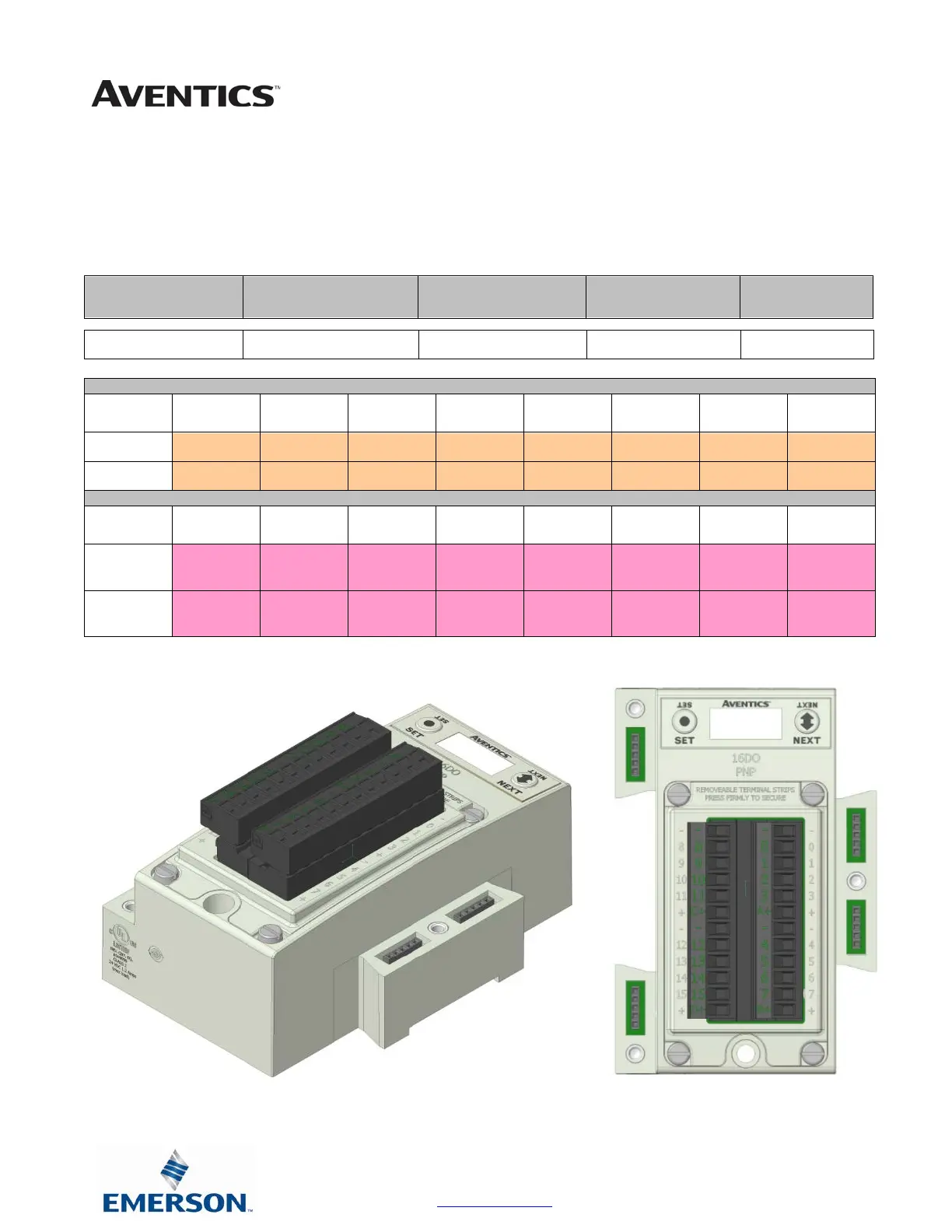

Sixteen Digital Outputs – Terminal Strip Modules
Specifications
- Wire Range: 12 to 24 AWG
- Strip Length: 7mm
- Tightening Torque: 0.5 Nm
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit
Protection
Status Bits
Output Points
240-330 PNP (Sourcing) YES YES 16
Output Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Output 7 Output 6 Output 5 Output 4 Output 3 Output 2 Output 1 Output 0
X+1 Output 15 Output 14 Output 13 Output 12 Output 11 Output 10 Output 9 Output 8
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectable
)
Output 7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
X
(Selectable
)
Output 15
Status
Output 14
Status
Output 13
Status
Output 12
Status
Output 11
Status
Output 10
Status
Output 9
Status
Output 8
Status
