Emerson Aventics G3 Series User Manual

G3 Series EtherCAT
TM
Technical Manual
8-76
TDG3ECM1-5EN 07/2020
Subject to change without notice
www.asco.com/g3

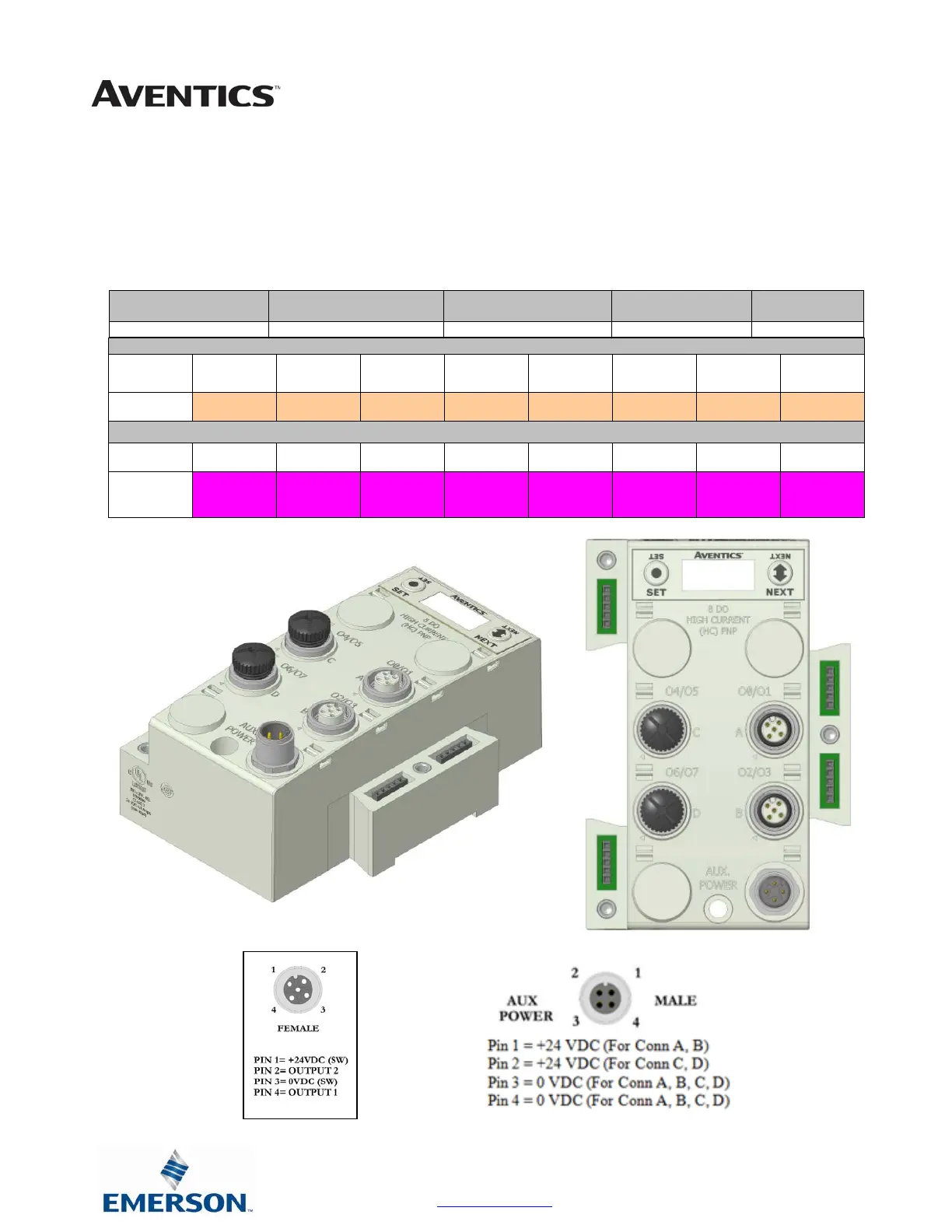

Two Digital High Current Outputs per Connector
- M12 Female Modules
The high
current output module is to be used with output devices requiring between 0.5 and
1.0 Amps. Each connector incorporates two outputs that are capable of sourcing 1.0 Amp per
output.
Module
Part No.
I/O Type Short Circuit Protection
Short Circuit
Protection Status Bits
Output Points
240-300
PNP (Sourcing)
YES
YES
8
Output Mapping
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X Output 7 Output 6 Output 5 Output 4 Output 3 Output 2 Output 1 Output 0
Diagnostic Telegram
BYTE Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X
(Selectabl
e)
Output 7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
