5 Getting started
The E300 Advanced Elevator drive has both a mounted keypad (KI-Elv Keypad RTC) and an alternative remote mount keypad (CI-Elv Remote
Keypad). Each keypad has the same LCD text display.

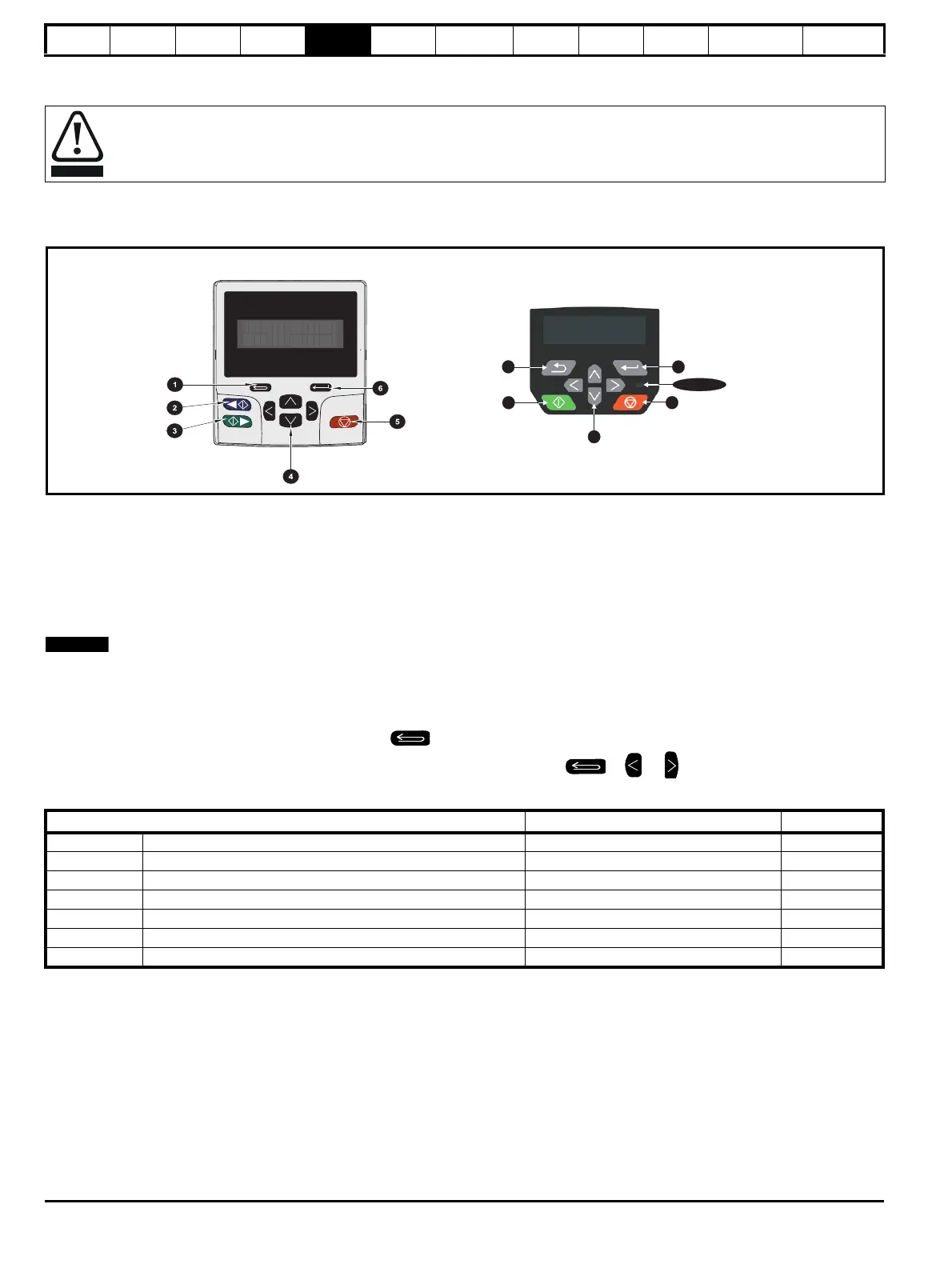

Figure 5-1 Keypad buttons
The keypad consists of a number of buttons, keys as detailed following which support navigation and editing.
1. Escape button - Used to exit from parameter edit or view mode. In parameter edit mode, if parameter values are edited and the exit button
pressed, the parameter value will be restored to the value it had on entry to edit mode.
2. Start reverse (Auxiliary) button - Not used.
3. Start forward button - Not used.
4. Navigation keys (x4) - Used to navigate through the menu and parameter structure and edit parameter values.
5. Reset button - Used to reset the drive.
6. Enter / Mode button - Used to toggle between parameter edit and view mode.
The remote keypad as shown above has an additional status LED present on the keypad which can be used as a status indication for when the drive
status LED is no longer visible.
5.1 Keypad set-up menu
To enter the keypad set-up menu press and hold the escape button from status mode. All the keypad parameters are saved to non-volatile
memory when exiting from the set-up menu. To exit from the set-up menu press the escape or or button.
Table 5-1 Keypad set-up parameters
Incorrect operation
Adjustment of drive parameters could result in a risk of damage to the product or present a safety hazard. Careful consideration to the
adjustment of drive parameters must be taken. The user should ensure they are familiar with parameter access, navigation and
parameter operation by reading this guide before adjustment to avoid the risk of damage to the product or a potential safety hazard.
WARNING
Local keypad
5
3
4
1
6
Status LED
Remote keypad
Parameter Range Type
Keypad.00 Language Classic English (0), English (1) RW
Keypad.01 Show units Off (0), On (1) RW
Keypad.02 Backlight level 0 to 100 % RW
Keypad.03 Keypad date (RTC Keypad) 01.01.10 to 31.12.99 RO
Keypad.04 Keypad time (RTC Keypad) 00:00:00 to 23:59:59 RO
Keypad.05 Show numerated text values Off (0), On (1) RW
Keypad.06 Software version 00.00.00.00 to 99.99.99.99 RO
