E300 Design Guide 19
Issue Number: 1
2.8 Options

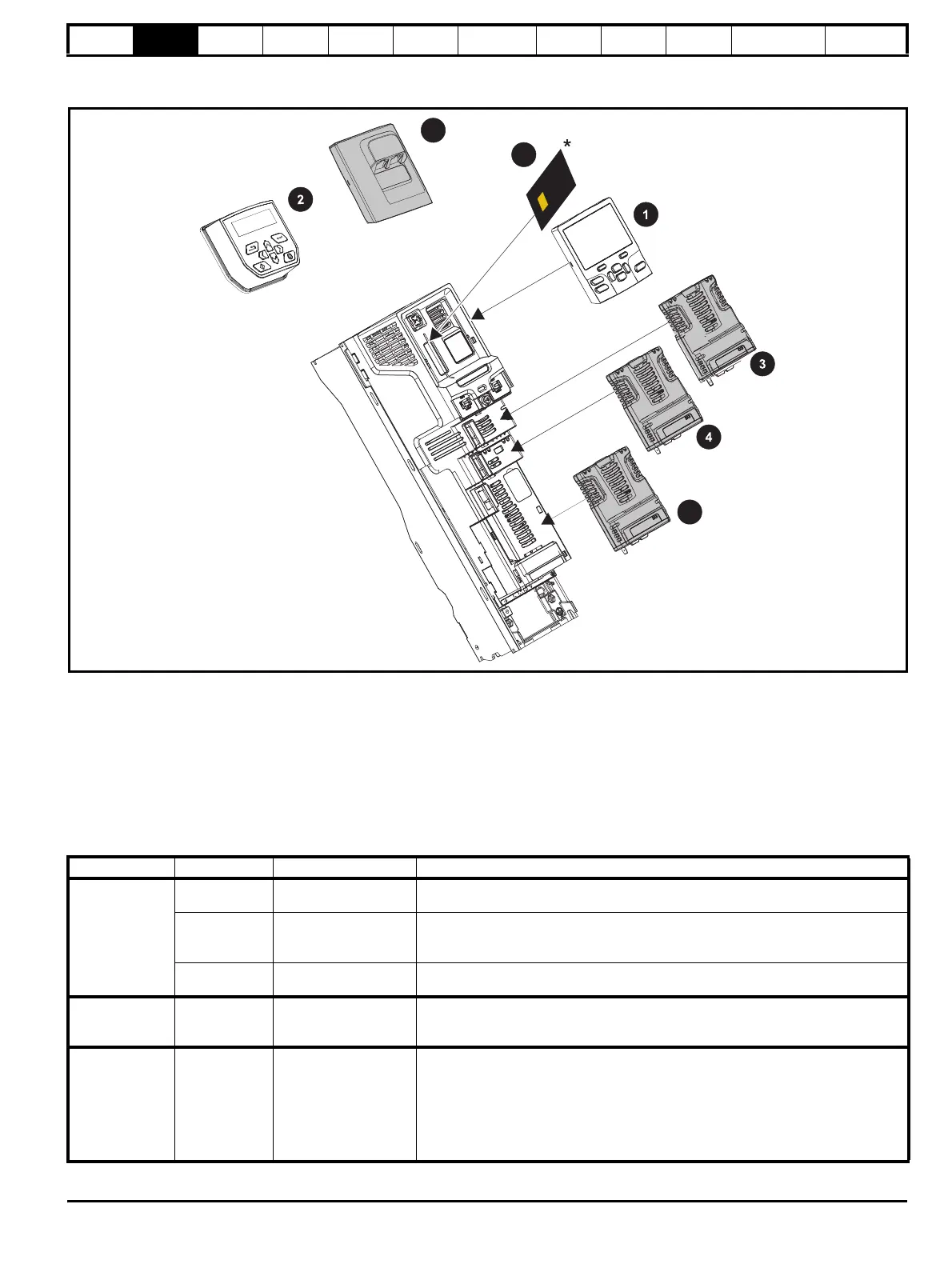

Figure 2-4 Drive features and options
Option modules come in two different formats, a standard option module and a large option module. All standard option modules are color-coded in
order to make identification easy, whereas the larger option module is black. All modules have an identification label on top of the module. Standard
option modules can be installed to any of the available option slots on the drive, whereas the large option modules can only be installed to option slot
3. The following tables shows the color-code key and gives further details on their function.
Table 2-8 Option module identification
Key
1. Keypad - Local 4. Option module slot 2 7. KI-485 Adaptor
2. Keypad - Remote 5. Option module slot 3
3. Option module slot 1 6. NV Media Card
5
6
7
Type Color Name Further Details
Feedback
N/A 15 way D type converter
Drive encoder input converter
Provides screw terminal interface for encoder wiring and spade terminal for shield
N/A
Single ended encoder
interface (15 V or 24 V)
Single ended encoder interface
Provides an interface for single ended ABZ encoder signals such as those from hall
effect sensors. 15 V and 24 V versions are available
Dark Brown SI-Universal Encoder
Additional combined encoder input and output interface supporting Incremental,
SinCos, HIPERFACE, EnDAT and SSI encoders.
Fieldbus Beige SI-Ethernet
External Ethernet module that supports EtherNet/IP, Modbus TCP/IP and
RTMoE. The module can be used to provide high speed drive access, global
connectivity and integration with IT network technologies, such as wireless networking
Automation
(I/O expansion)
Orange SI-I/O
Extended I/O
Increases the I/O capability by adding the following combinations:
• Digital I/O
• Digital Inputs
• Analog Inputs (differential or single ended)
• Analog Output
• Relays
