8.1 Menu B: Motor

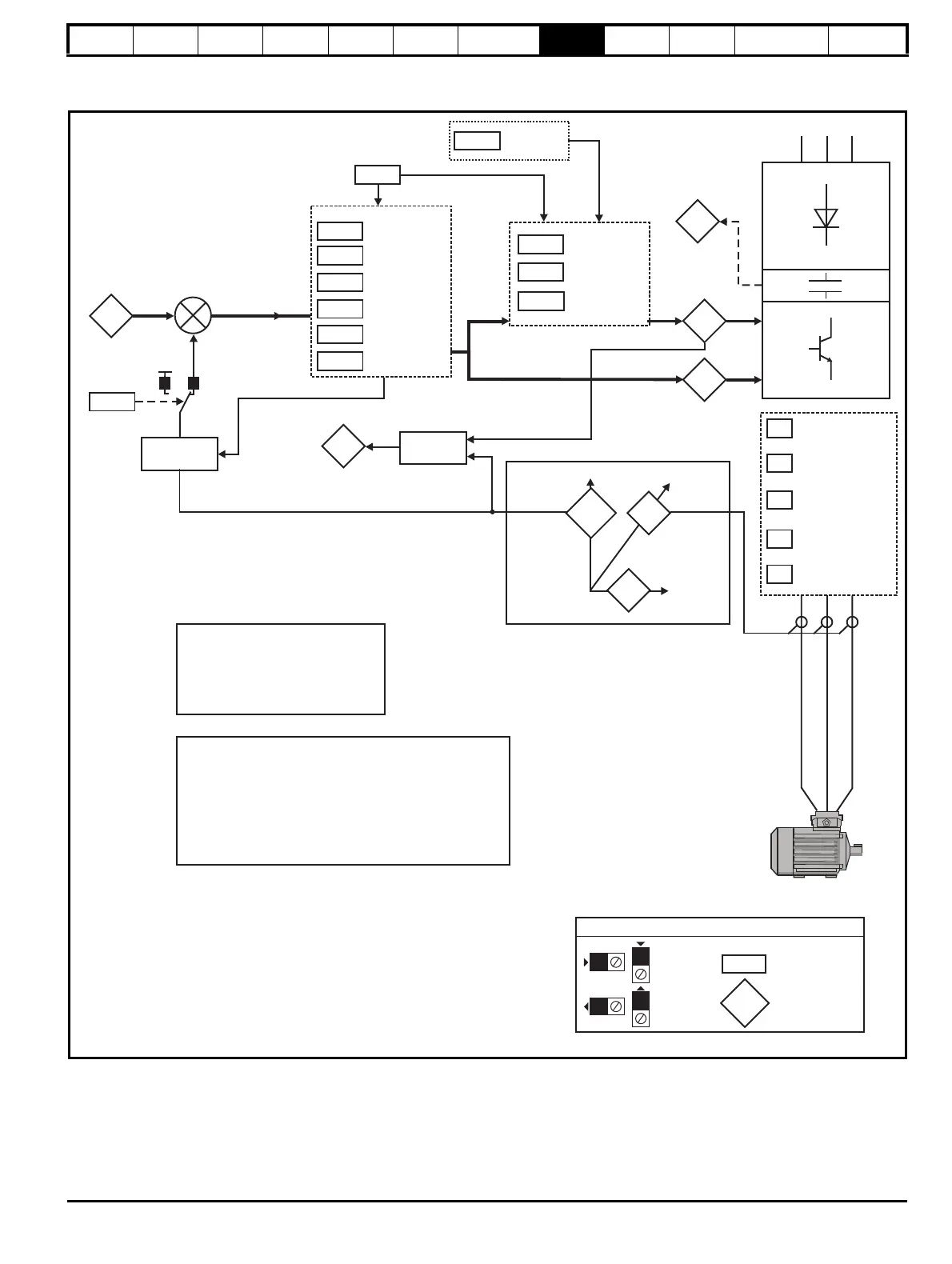

Figure 8-1 Menu B Open loop logic diagram
J39
Profile Speed
+
+
B04
B05
Motor Rated
Power Factor
Number Of
Motor Poles
J61
Output
Voltage
J59
Output
Power (kW)
Ö 3xVxI
Volt
L1 L2 L3
J65
DC Bus
Voltage
B07
B03
Motor Rated
Speed
Motor Rated
Voltage
B02
Motor Rated
Frequency
Motor Rated
Current
B34
Stator
Resistance
B12
Low Frequency
Voltage Boost
Transient
Inductance
J24
J25
J22
Total Output
Current
Magnetizing
Current
Torque
Producing
Current
Motormap
B11
Motor
Autotune
B33
B09
Open-Loop
Control Mode
J60
Output
Frequency
1
0
Slip
compensation
Enable Slip
Compensation
B10
B06
B13
B14
B15
B45
B26
Maximum Switching
Frequency
Minimum Switching
Frequency
Switching
Frequency Step
Size
Quasi Square
Enable
Reverse Motor
Phase Sequence
Hertz
mmpp
mmpp
Key
Read-write (RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
X
X
X
X
The parameters are all shown in their default settings
Motor Contactor
Motor Contactor Monitoring Enable ( )B29
Motor Contactor Monitoring Input ( )B30
Motor Contactor Control Output ( )B31
Motor Contactor Measured Delay ( )B32
Motor Protection
Thermal Protection Mode ( )
Motor Thermal Time Constant 1 ( )
Motor Protection Accumulator Power Up Value ( )
Motor Thermal Time Constant 2 ( )
Motor Thermal Time Constant 2 Scaling ( )
Rated Iron Losses As Percentage Of Losses As Percentage ( )
Low Speed Thermal Protection Mode ( )
Motor Protection Accumulator ( )
B19
B20
B21
B22
B23
B24
B44
J26
