4.1.3.4 Standard Digital outputs
Type:
Relays with NO or NC contacts, depending on the model
Number of outputs:
10 or 15, depending on the model
Type of output:
(configurable via software parameter)
Relays with normally open contact:
- RL1, RL2, RL4, RL5, RL6, RL7, RL8, RL9, RL10, RL12, RL13, RL15
Relays with changeover contact:
- RL3, RL11, RL14
Maximum load:
Relays with normally open contact: 5A(250Vac) SPST 5(2)A
Relays with changeover contact: 8A(250Vac) SPDT 8(3)A
Notes:
Verify the capacity of the output used. There is double insulation between
the digital outputs and the low voltage of the rest of the circuit.
Do not use different voltages for the various groups of relays nor within
each group.
4.1.3.5 SSR Digital outputs version
Type:
Relays with NO or NC contacts, depending on the model
Number of outputs:
10 or 15, depending on the model
Type of output:
(configurable via software parameter)
Relays with normally open contact:
- RL1, RL2, RL4, RL5, RL6, RL7, RL8, RL9, RL10, RL11, RL12, RL13,
RL14, RL15
Relays with changeover contact:
- RL3
Maximum load:
Relays with normally open contact: 5A(250Vac) SPST 5(2)A
Relays with changeover contact: 8A(250Vac) SPDT 8(3)A
SSR relays with normally open contact 1A(12 - 250Vac):
- only in AC load
- minimum current is 50mA (equivalent to 12W - 250Vac)
- internal impedance 300KΩ (current 0.2mA at 250Vac with an open
contact)
Notes:
Verify the capacity of the output used. There is double insulation between
the digital outputs and the low voltage of the rest of the circuit.
Do not use different voltages for the various groups of relays nor within
each group.

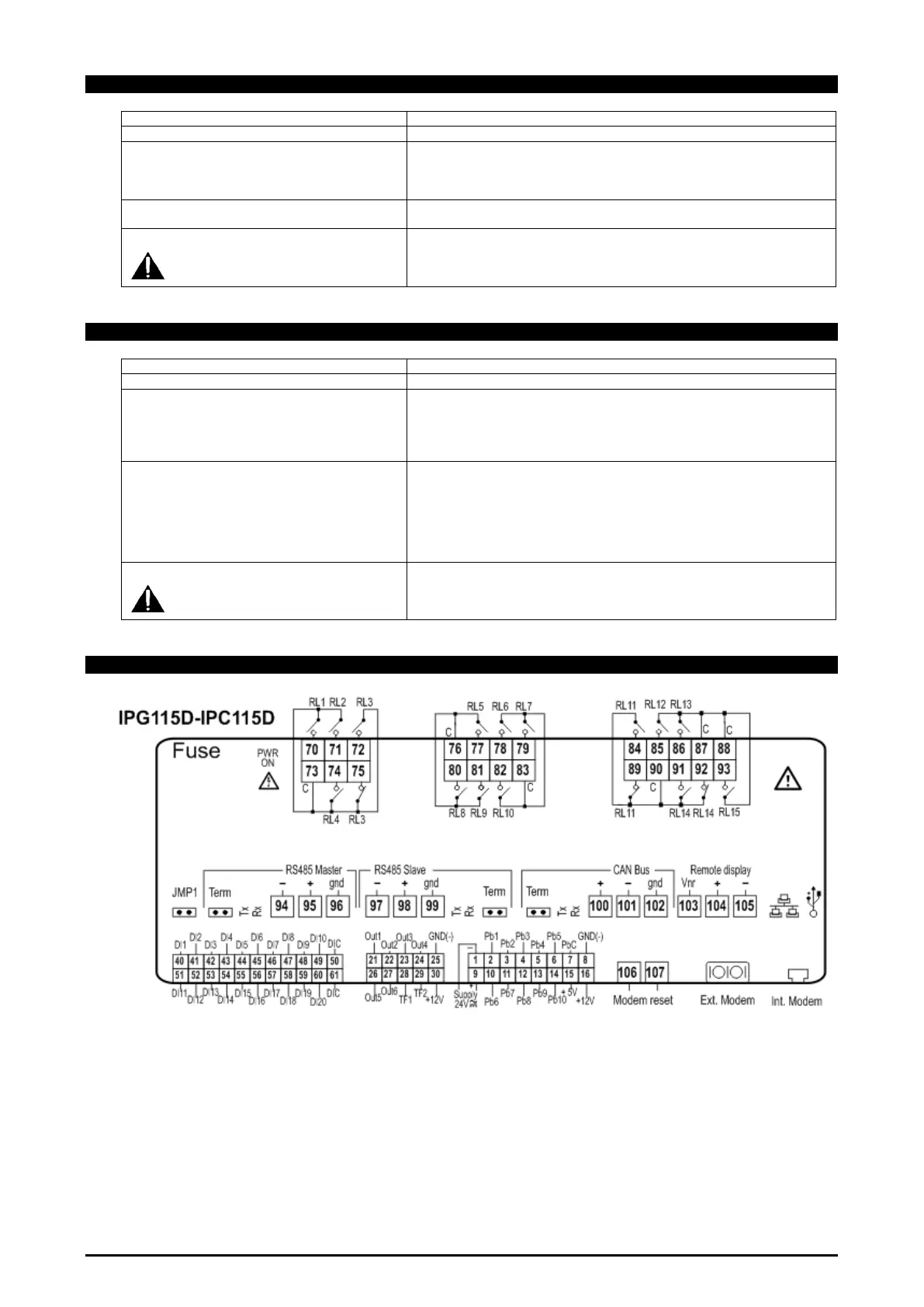

4.1.3.6 Wiring diagrams
