1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 25/96

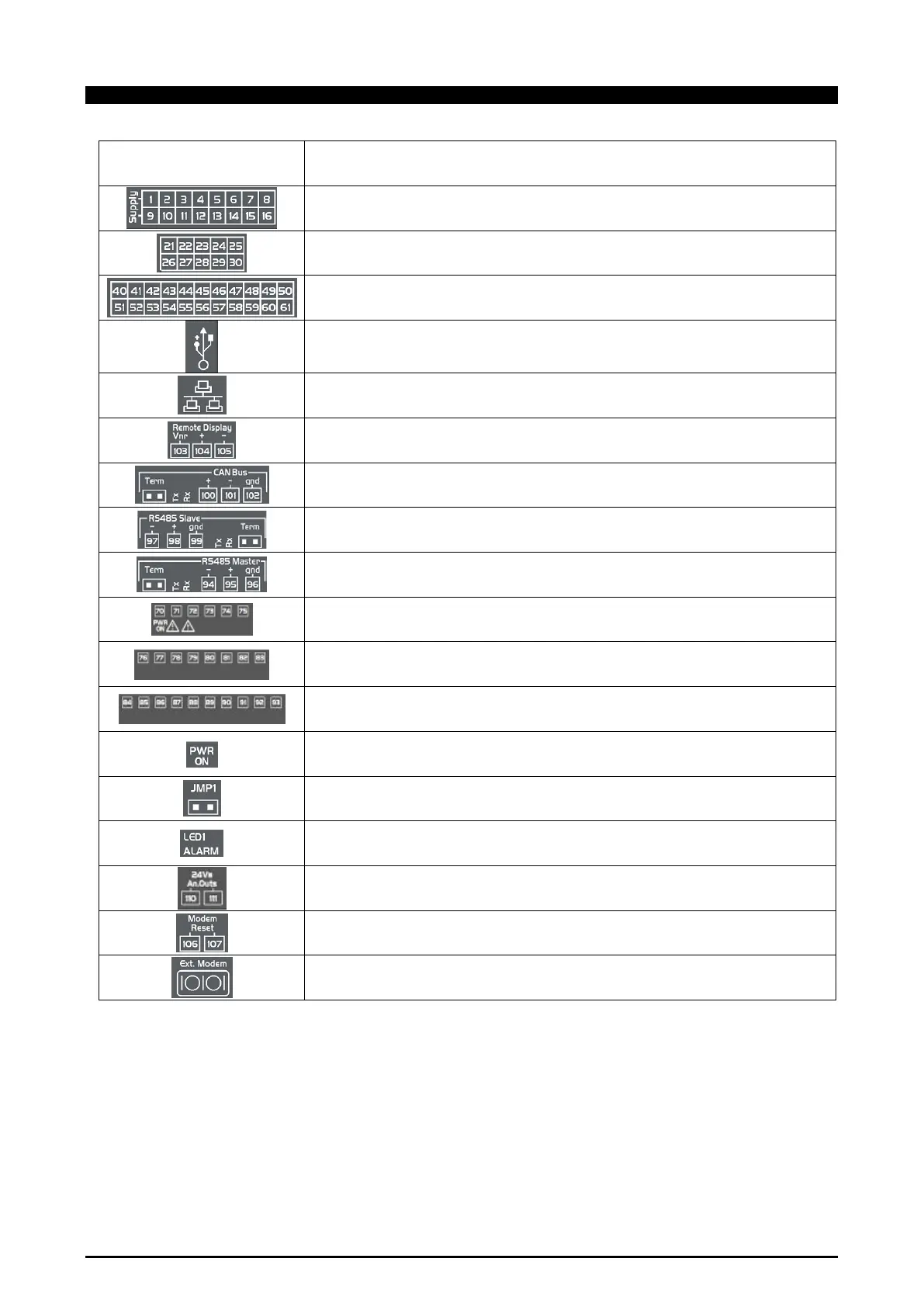

4.3.1 Description of the connections
Connector Description
Connector for 24Vac/dc power supply
Analogue inputs (Pb1 - Pb10, PbC)
Additional power (+5Vdc, +12Vdc, GND)
Optoinsulated analogue outputs (Out1 - Out6)
PWM (TF1 - T2)
Additional power (+12Vdc for TF reference, GND for Out reference)
Potential free opto-insulated digital inputs (DI1 - DI20, DIC)
Opto-insulated 24Vac/dc digital inputs (DI1 - DI20, GND)
USB port for downloads (BIOS, ISaGRAF® application, maps of parameters, remote display
applications, network configuration, website) and uploads (log files)
Connector for remote terminal (VISOGRAPH), maximum 2 terminals per iPRO.
CANBUS connector for expansions (IPEXx0D) and drivers for electronic valves (XEVx0D
Rx and Tx LED to indicate that communication is active
Rx and Tx LED to indicate that communication is active
Rx and Tx LED to indicate that communication is active
4 NO relays, 2 common
3 NO relays, 1 common + 3 NO relays, 1 common
3 NO relays, 2 common + 2 NO relays, 3 common
Green LED to indicate the presence of power
Jumper to activate the RESCUE MODE
Yellow status LEDs (LED1) and red LED (ALARM)
See relative paragraph
Optoinsulated analogue outputs 24Vac/dc power supply
Connector for NC contact to reset an external modem
RS232 connector for an external GSM modem connection (SIEMENS TC35)
