Emerson iPro Series User Manual

1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 29/96
4.3.3.4 Standard Digital outputs
Type:
Relays with NO contacts
Number of outputs:
15
Type of output:
(configurable via software parameter)
Relays with normally open contact:
- RL1, RL2, RL3, RL4, RL5, RL6, RL7, RL8, RL9, RL10, RL11, RL12,
RL13, RL14, RL15
Optional SSR relays may be mounted at the positions:
- RL11, RL12, RL13, RL14, RL15
Maximum load:
Relays with normally open contact: 5A(250Vac) SPST 5(2)A
Notes:
Verify the capacity of the output used. There is double insulation between
the digital outputs and the low voltage of the rest of the circuit.
Do not use different voltages for the various groups of relays nor within
each group.

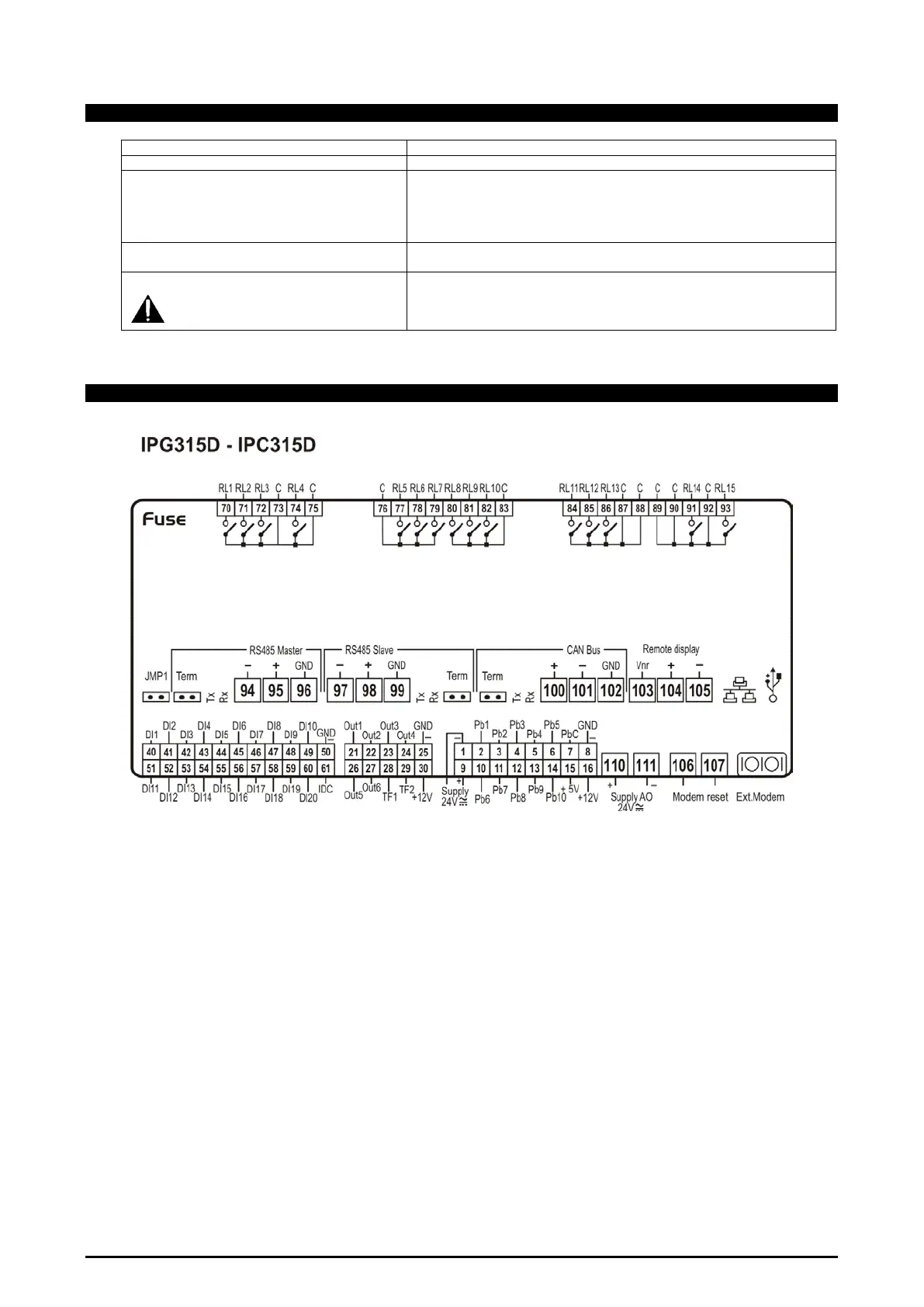

4.3.3.5 Wiring diagrams
