Emerson iPro Series User Manual

1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 79/96

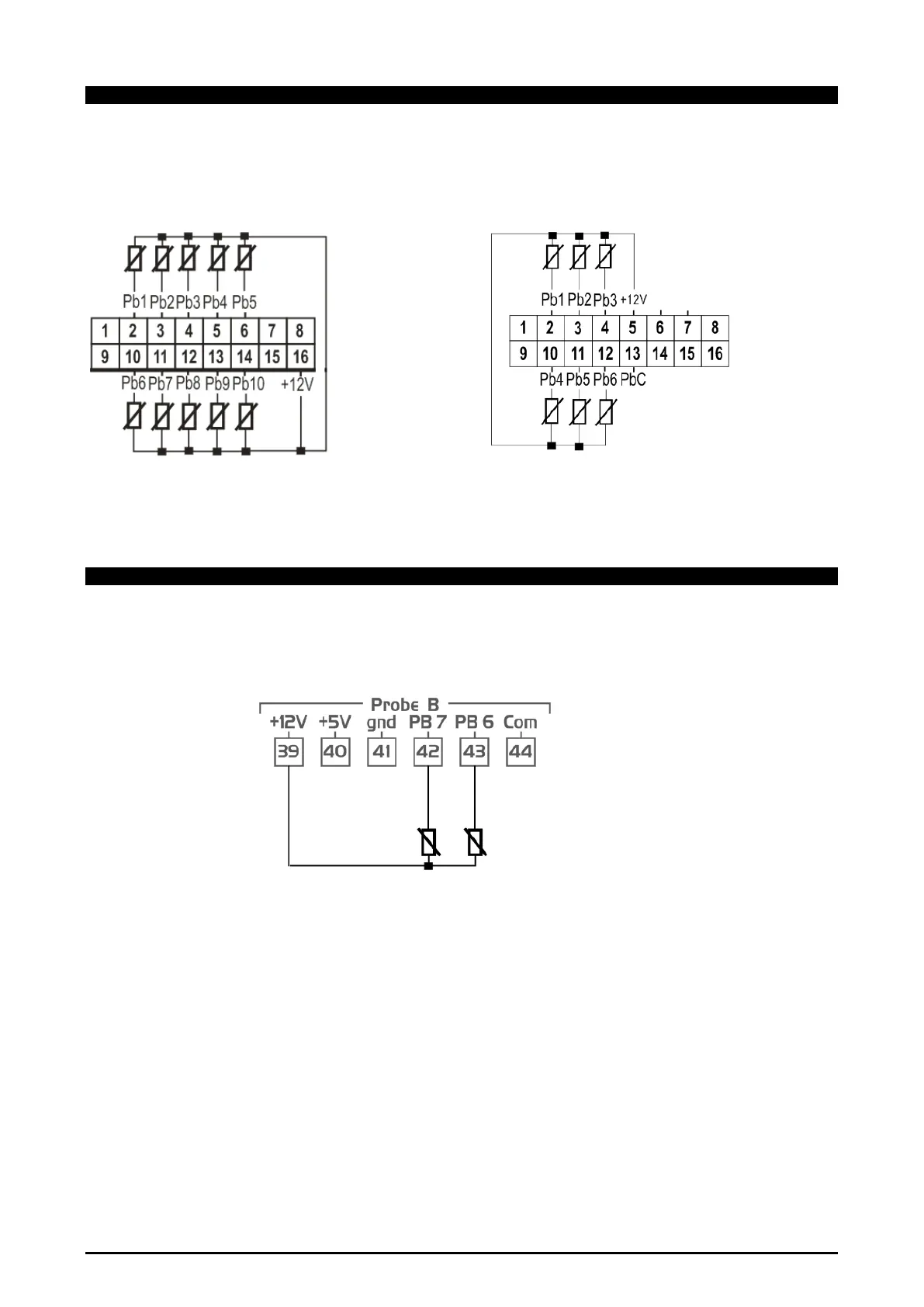

7.3.3 Pressure transducers and current probes (0 - 20mA, 4 - 20mA)
2-row sensors that require +12Vdc power supply.
Each sensor must be connected through one of the inputs (from Pb1 to Pb10) and the power supply (+12V)
as shown in the diagram below.
IPG-IPC IPG-IPC 4 DIN
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
7.3.4 Pressure transducers and current probes IPG800 Series (0 - 20mA, 4 - 20mA)
2-row sensors that require +12Vdc power supply.
Two sensors must be connected through one of the inputs (from Pb6 to Pb7) and the power supply (+12V)
as shown in the diagram below.
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
