7.5 CONNECTION OF THE ANALOGUE OUTPUTS
Depending on the model and configurations, it is possible to use analogue outputs such as 0 - 10Vdc, 4 -
20mA or PWM (the PWM configuration requires the Dixell XVxx module to be used for the fan speed to be
controlled).
NOTE: the analogue outputs in certain models are not opto-insulated. In this case, any devices that require
24Vac/dc power supply must be powered separately with another transformer.

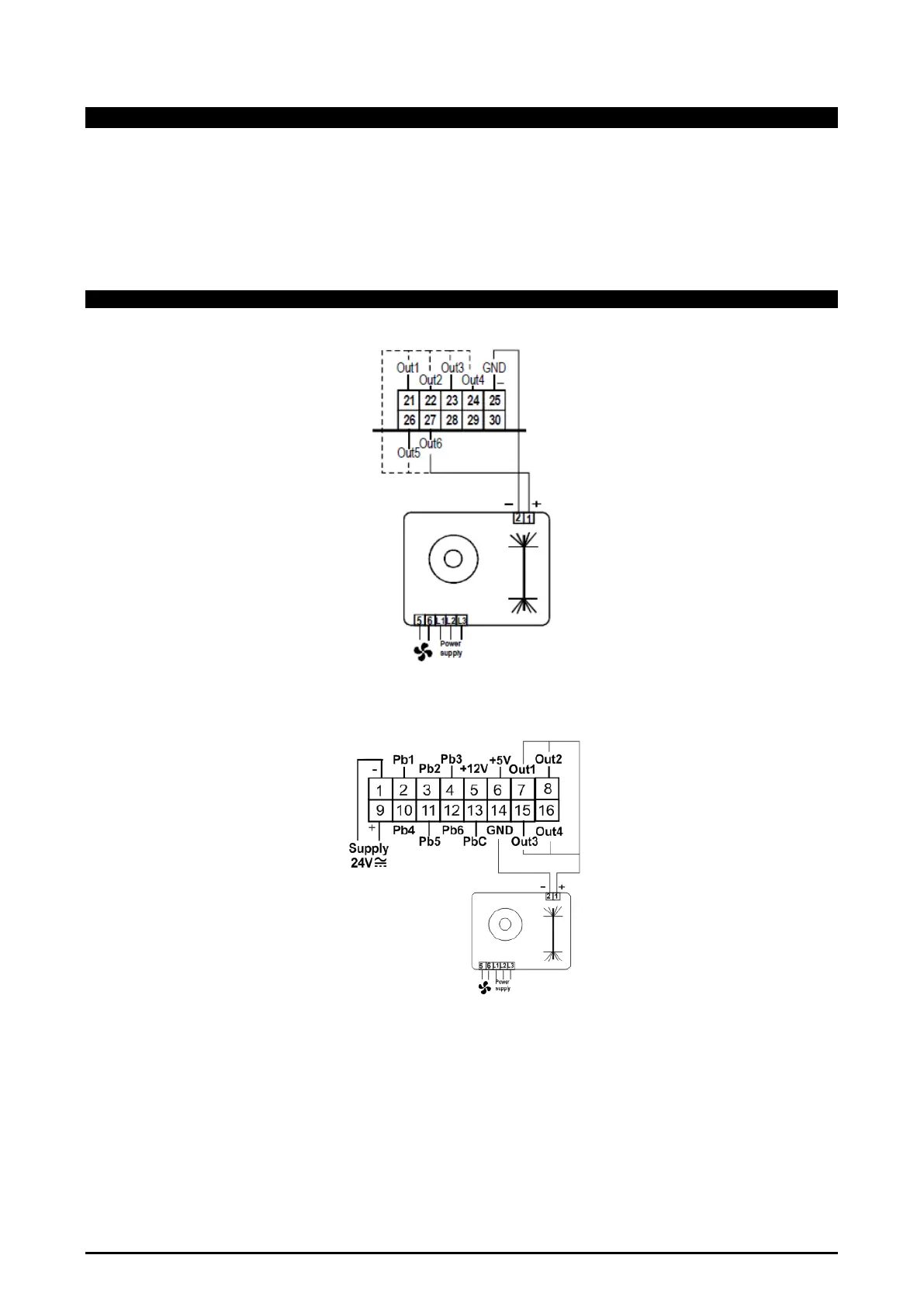

7.5.1 0 - 10V, 4 - 20mA Analogue output for condensation control
IPG-IPC VERSION
IPG108, IPG208 VERSION
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
