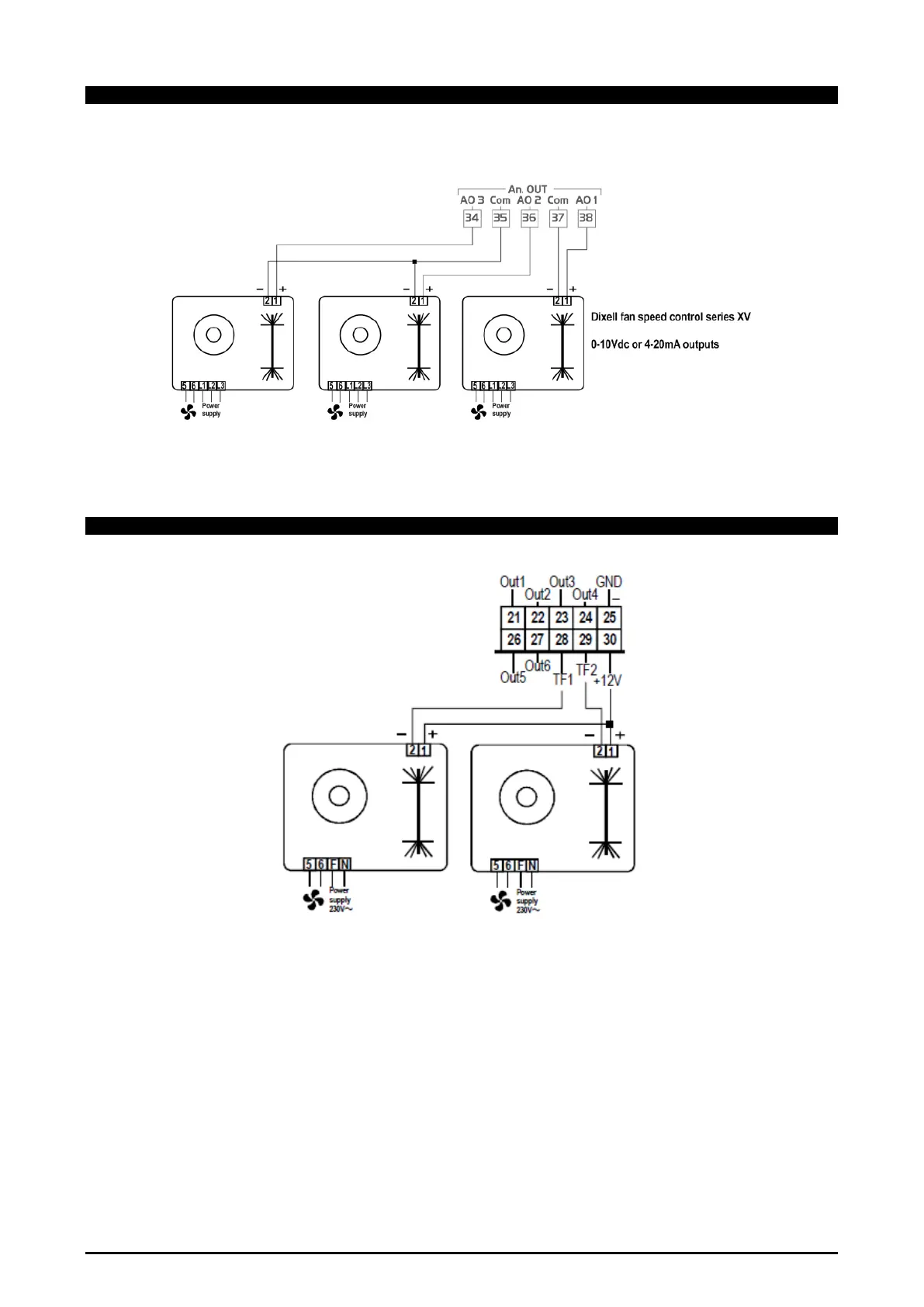

7.5.2 0-10Vdc, 4-20mA Analogue output for fan speed control IPG800 Series
The three analog outputs AO1, AO2 and AO3 can be used to drive an external fan speed control (Dixell XV
series) through the 0-10Vdc or 4-20mA.
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
7.5.3 PWM analogue output for condensation control
IPG100 VERSIONS (not available for IPG200 and 4 DIN)
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
