1592025700 IPROFAMILY 3.5 stp GB 2016.12.07
iPro Series
48
/
96

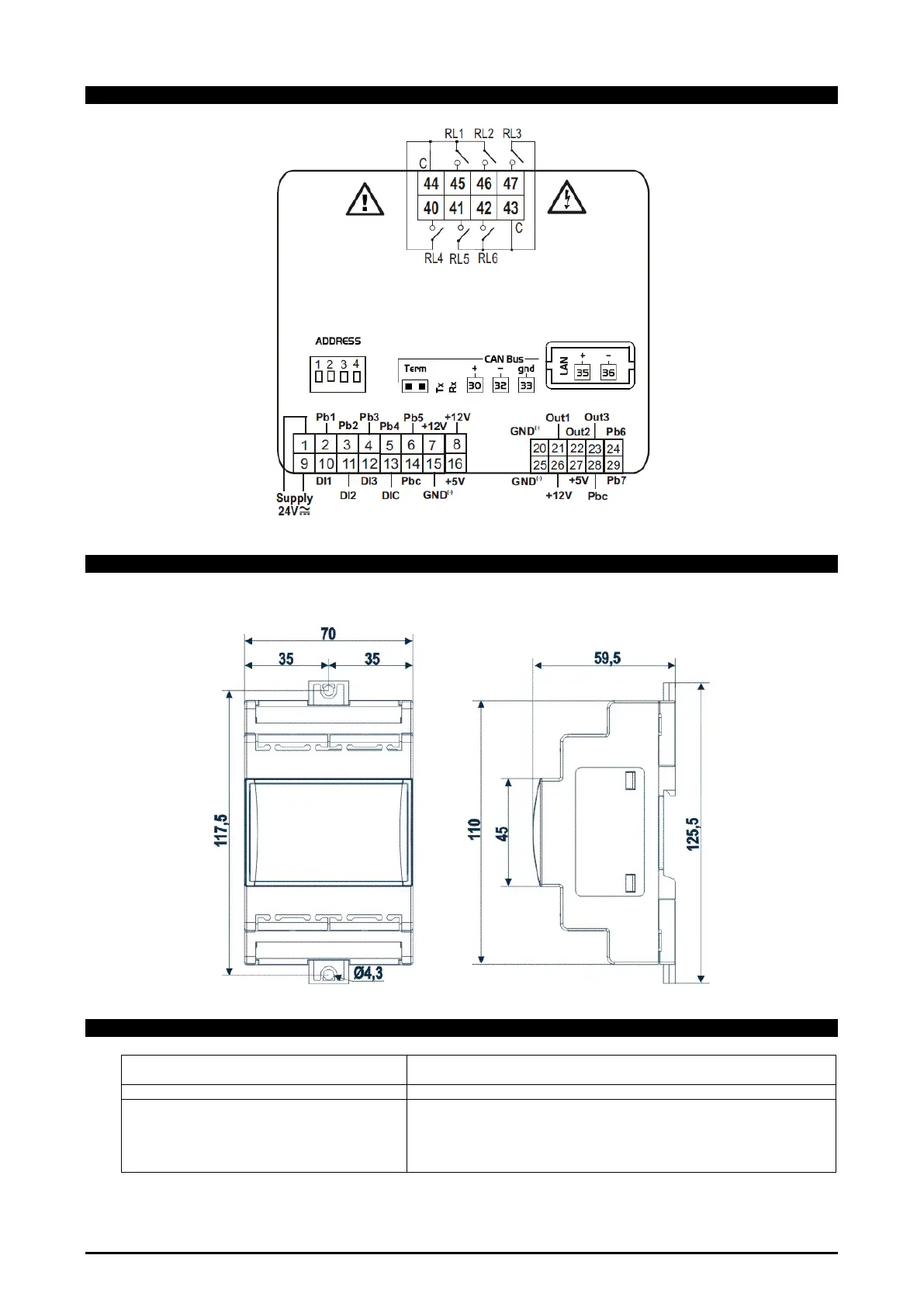

4.7.3.5
Wiring diagrams
4.7.3.6
M
echan
ical specif
ication
s
4 DIN m
odule
4.7.3.7
Elect
rical sp
ecific
ations
Pow
er
Su
ppl
y:
24Vac +10/
-
15%, 50/60Hz
20
-
36Vdc
Consumption
:
10VA (Vac), 10W (Vdc)
Connectors:
Molex connectors with low voltage wiring
SELECOM/CIVILUX connect
ors for digital outputs (250Vac, 6A max) or
with a different order code:
Phoenix quick
coupling c
onnectors for
low voltage
STELVIO 90° screw connectors for digital outputs
(250Vac, 6A max)
47
49
Table of Contents
1. IMPORTANT RECOMMENDATIONS
5
1.1 PRODUCT DISPOSAL (WEEE)
6
2. INTRODUCTION
7
3. GENERAL SPECIFICATIONS
7
3.1 PROCESSING ENVIRONMENT
7
3.1.1 Fields of application
7
3.1.2 Hardware architecture
7
3.2 RELEVANT data
8
4. VERSIONS OF THE PROGRAMMABLE CONTROLLERS
9
4.1 IPRO.GENIUS AND IPRO.CHILL (IPG100D – IPC100D RANGES)
10
4.1.1 Description of the connections
11
4.1.2 Description of the inputs and outputs
12
4.1.3 Technical specifications
14
4.1.3.1 Analogue inputs
14
4.1.3.2 Digital inputs
14
4.1.3.3 Analogue outputs
14
4.1.3.4 Standard Digital outputs
15
4.1.3.5 SSR Digital outputs version
15
4.1.3.6 Wiring diagrams
15
4.1.3.7 Mechanical specifications
16
4.1.3.8 Electrical specifications
16
4.1.3.9 Plastic container
16
4.1.3.10 Product certifications
17
4.2 IPRO.GENIUS (IPG200D RANGE)
18
4.2.1 Description of the connections
18
4.2.2 Description of the inputs and outputs
19
4.2.3 Technical specifications
21
4.2.3.1 Analogue inputs
21
4.2.3.2 Digital inputs
21
4.2.3.3 Analogue outputs
21
4.2.3.4 Digital outputs
22
4.2.3.5 Wiring diagrams
22
4.2.3.6 Mechanical specifications
23
4.2.3.7 Electrical specifications
23
4.2.3.8 Plastic container
23
4.2.3.9 Product certifications
23
4.3 IPRO.GENIUS AND IPRO.CHILL (IPG300D – IPC300D RANGES)
24
4.3.1 Description of the connections
25
4.3.2 Description of the inputs and outputs
26
4.3.3 Technical specifications
28
4.3.3.1 Analogue inputs
28
4.3.3.2 Digital inputs
28
4.3.3.3 Analogue outputs
28
4.3.3.4 Standard Digital outputs
29
4.3.3.5 Wiring diagrams
29
4.3.3.6 Mechanical specifications
30
4.3.3.7 Electrical specifications
30
4.3.3.8 Plastic container
30
4.3.3.9 Product certifications
30
4.4 IPRO.GENIUS (IPG800D RANGES)
31
4.4.1 Description of the connections
31
4.4.2 Description of the inputs and outputs
32
4.4.3 Technical specifications
33
4.4.3.1 Analogue inputs
33
4.4.3.2 Digital inputs
34
4.4.3.3 Analogue outputs
34
4.4.3.4 Digital outputs
34
4.4.3.5 Wiring diagrams
35
4.4.3.6 Mechanical specifications
35
4.4.3.7 Electrical specifications
35
4.4.3.8 Plastic container
36
4.4.3.9 Product certifications
36
4.5 IPRO 4 DIN (IPG100D – IPG200D – IPC100E RANGES)
37
4.5.1 Description of the connections
38
4.5.2 Description of the inputs and outputs
38
4.5.3 Technical specifications
39
4.5.3.1 Analogue inputs
39
4.5.3.2 Digital inputs
39
4.5.3.3 Analogue outputs
40
4.5.3.4 Digital outputs
40
4.5.3.5 Wiring diagrams
40
4.5.3.6 Mechanical specifications
41
4.5.3.7 Electrical specifications
41
4.5.3.8 Plastic container
41
4.5.3.9 USB-ETHERNET Adapter (Dixell specification)
41
4.6 IPRO.LINK (IPL500D)
42
4.6.1 Description of the connections
42
4.6.2 Description of the inputs and outputs
43
4.6.3 Technical specifications
43
4.6.3.1 Wiring diagrams
43
4.6.3.2 Mechanical specifications
44
4.6.3.3 Electrical specifications
44
4.6.3.4 Plastic container
44
4.7 IPX106D
45
4.7.1 Description of the connections
45
4.7.2 Description of the inputs and outputs
46
4.7.3 Technical specifications
47
4.7.3.1 Analogue inputs
47
4.7.3.2 Digital inputs
47
4.7.3.3 Analogue outputs
47
4.7.3.4 Digital outputs
47
4.7.3.5 Wiring diagrams
48
4.7.3.6 Mechanical specifications
48
4.7.3.7 Electrical specifications
48
4.7.3.8 Plastic container
49
4.7.3.9 Setting the address of the device
49
4.8 IPX206d – ipx306d
50
4.8.1 Description of the connections
50
4.8.2 Description of the inputs and outputs
51
4.8.3 Technical specifications
52
4.8.3.1 Analogue inputs
52
4.8.3.2 Digital inputs
52
4.8.3.3 Analogue outputs
52
4.8.3.4 Digital outputs
52
4.8.3.5 Wiring diagrams
53
4.8.3.6 Mechanical specifications
53
4.8.3.7 Electrical specifications
54
4.8.3.8 Plastic container
54
4.8.3.9 Setting the address of the device
54
4.9 IPX115D – IPX125D
55
4.9.1 Description of the connections
55
4.9.2 Description of the inputs and outputs
56
4.9.3 Technical specifications
58
4.9.3.1 Analogue inputs
58
4.9.3.2 Digital inputs
58
4.9.3.3 Analogue outputs
58
4.9.3.4 Digital outputs
59
4.9.3.5 Wiring diagrams
59
4.9.3.6 Mechanical specifications
60
4.9.3.7 Electrical specifications
60
4.9.3.8 Plastic container
60
4.9.3.9 Setting the address of the device
60
4.10 IPX215D – IPX225D
61
4.10.1 Description of the connections
61
4.10.2 Description of the inputs and outputs
62
4.10.3 Technical specifications
64
4.10.3.1 Analogue inputs
64
4.10.3.2 Digital inputs
64
4.10.3.3 Analogue outputs
64
4.10.3.4 Digital outputs
65
4.10.3.5 Wiring diagrams
65
4.10.3.6 Mechanical specifications
66
4.10.3.7 Electrical specifications
66
4.10.3.8 Plastic container
66
4.10.3.9 Setting the address of the device
66
4.11 IPX315D
67
4.11.1 Description of the connections
67
4.11.2 Description of the inputs and outputs
68
4.11.3 Technical specifications
70
4.11.3.1 Analogue inputs
70
4.11.3.2 Digital inputs
70
4.11.3.3 Analogue outputs
70
4.11.3.4 Digital outputs
71
4.11.3.5 Wiring diagrams
71
4.11.3.6 Mechanical specifications
72
4.11.3.7 Electrical specifications
72
4.11.3.8 Plastic container
72
4.11.3.9 Setting the address of the device
72
5. INTERFACE
73
5.1 VISOGRAPH
73
5.1.1 Specifications
73
5.1.2 Connections
74
5.1.3 Options menu
74
5.1.4 Dimensions
75
6. MEANING OF THE LEDs AND JUMPERS IN THE VARIOUS DEVICES
76
6.1 PROGRAMMABLE CONTROLLERS
76
6.2 EXPANSION MODULES
76
7. INSTALLATION
77
7.1 GENERAL RULES
77
7.2 POWER SUPPLY
77
7.3 CONNECTION OF THE ANALOGUE INPUTS
78
7.3.1 Temperature probes (NTC and PTC)
78
7.3.2 Temperature probes IPG800 Series (NTC, PTC and PT1000)
78
7.3.3 Pressure transducers and current probes (0 - 20mA, 4 - 20mA)
79
7.3.4 Pressure transducers and current probes IPG800 Series (0 - 20mA, 4 - 20mA)
79
7.3.5 Pressure transducers and ratiometric pressure transducers (0 - 5V)
80
7.3.6 Pressure transducers and ratiometric pressure transducers IPG800 Series (0 - 5V)
80
7.3.7 Live probes (0 - 1V, 0 - 5V, 0 - 10V)
81
7.3.8 Live probes IPG800 Series (0 - 1V, 0 - 5V, 0 - 10V)
81
7.3.9 Probes and transducers with 24Vac/dc power supply
82
7.3.10 Probes and transducers with 24Vac/dc power supply IPG800 Series
83
7.4 CONNECTION OF THE DIGITAL INPUTS
84
7.4.1 Potential-free digital inputs
84
7.4.2 Potential-free digital inputs IPG800 Series
85
7.4.3 Live digital inputs (24Vac/dc)
85
7.4.4 Power supply 24Vac digital inputs IPG800 Series
86
7.5 CONNECTION OF THE ANALOGUE OUTPUTS
87
7.5.1 0 - 10V, 4 - 20mA Analogue output for condensation control
87
7.5.2 0-10Vdc, 4-20mA Analogue output for fan speed control IPG800 Series
88
7.5.3 PWM analogue output for condensation control
88
7.5.4 PWM analogue output for control IPG800 Series
89
7.5.5 0 - 10V, 4 - 20mA Proportional analogue output for servomotors/actuators
89
7.5.6 Devices with 24Vac/dc power supply
90
7.5.7 Analogue output for relays (coil power supply 12Vdc)
91
7.6 CONNECTION OF THE DIGITAL OUTPUTS
91
7.7 ELECTRONIC EXPANSION VALVE DRIVER IPG800 SERIES
91
7.7.1 GENERAL RULES
91
7.7.2 ELECTRICAL CONNECTIONS
92
7.8 CANBUS CONNECTION
93
7.9 RS485 SLAVE CONNECTIONS
94
7.10 RS485 master CONNECTION
95
