1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 84/96
7.4 CONNECTION OF THE DIGITAL INPUTS
The digital inputs in the programmable controllers and expansions are fully configurable.
Depending on the model used, the digital inputs can be used as potential free or live (24Vac/dc) digital
inputs.

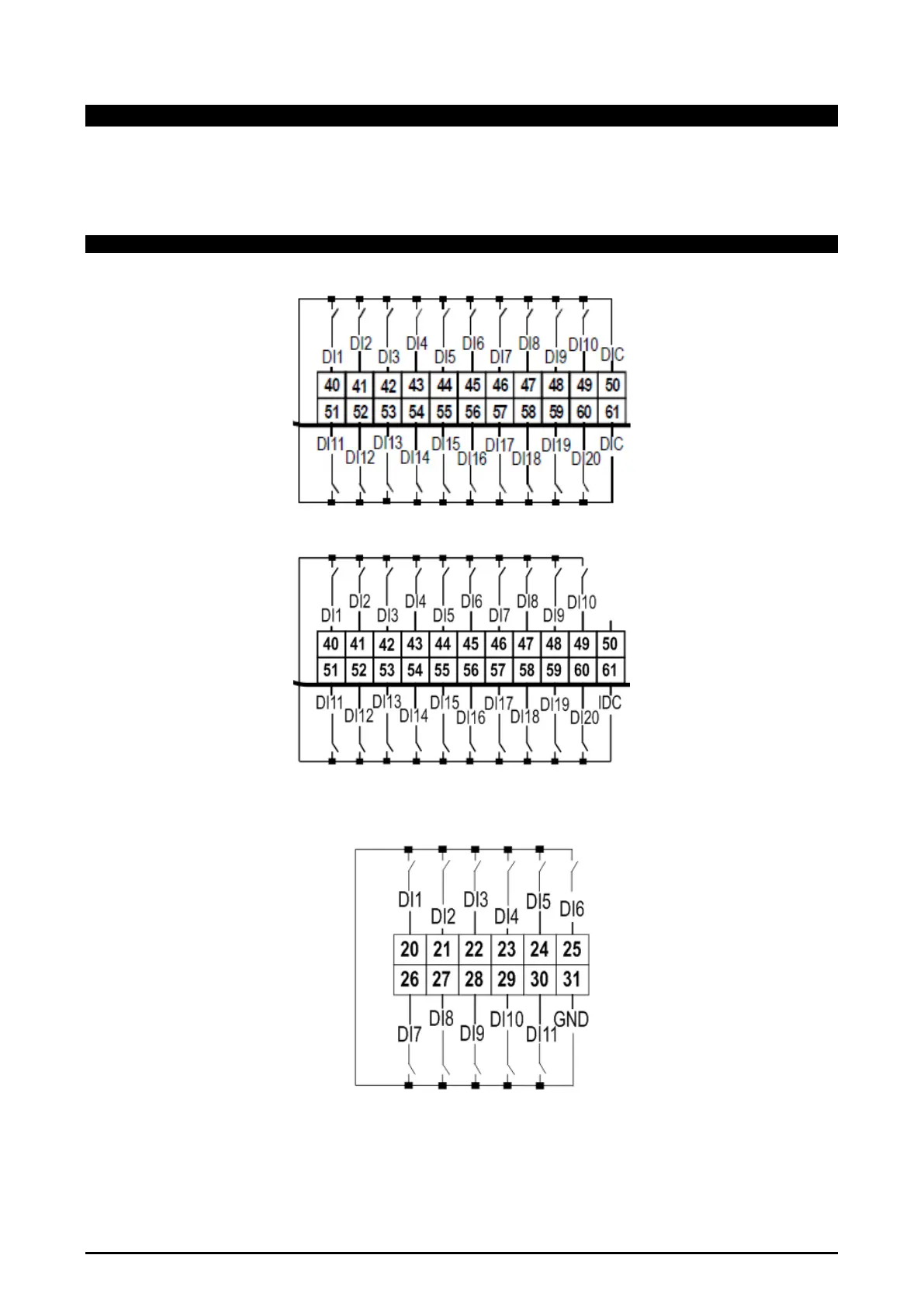

7.4.1 Potential-free digital inputs
IPG100, IPC100 and IPX106D versions
IPG200, IPX125D, IPX115D, IPX215D, IPX215D VERSIONS
IPG108D, IPG208D VERSION (special version not standard version)
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
