7.5.4 PWM analogue output for control IPG800 Series

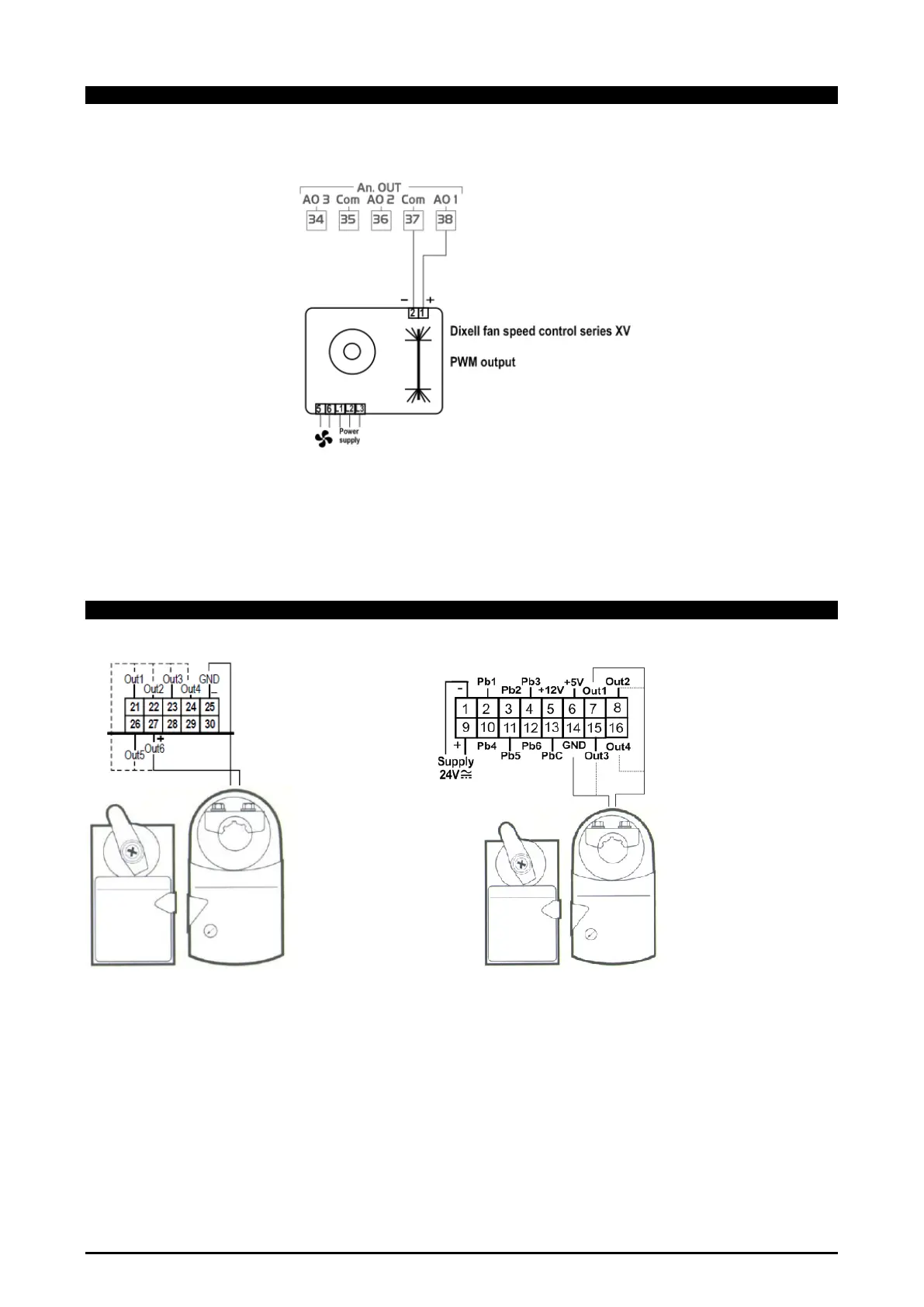

The analog outputs AO1 (depend on the model), can be used to drive an external fan speed control (Dixell
XV series) through the PWM signal.
Note: the PWM is available only if the Power Supply is 24Vac.
R
ecommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
7.5.5 0 - 10V, 4 - 20mA Proportional analogue output for servomotors/actuators
IPG-IPC IPG 4 DIN
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
