Emerson iPro Series - 7.3.7 Live probes (0 - 1 V, 0 - 5 V, 0 - 10 V); 7.3.8 Live probes IPG800 Series (0 - 1 V, 0 - 5 V, 0 - 10 V)

1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 81/96

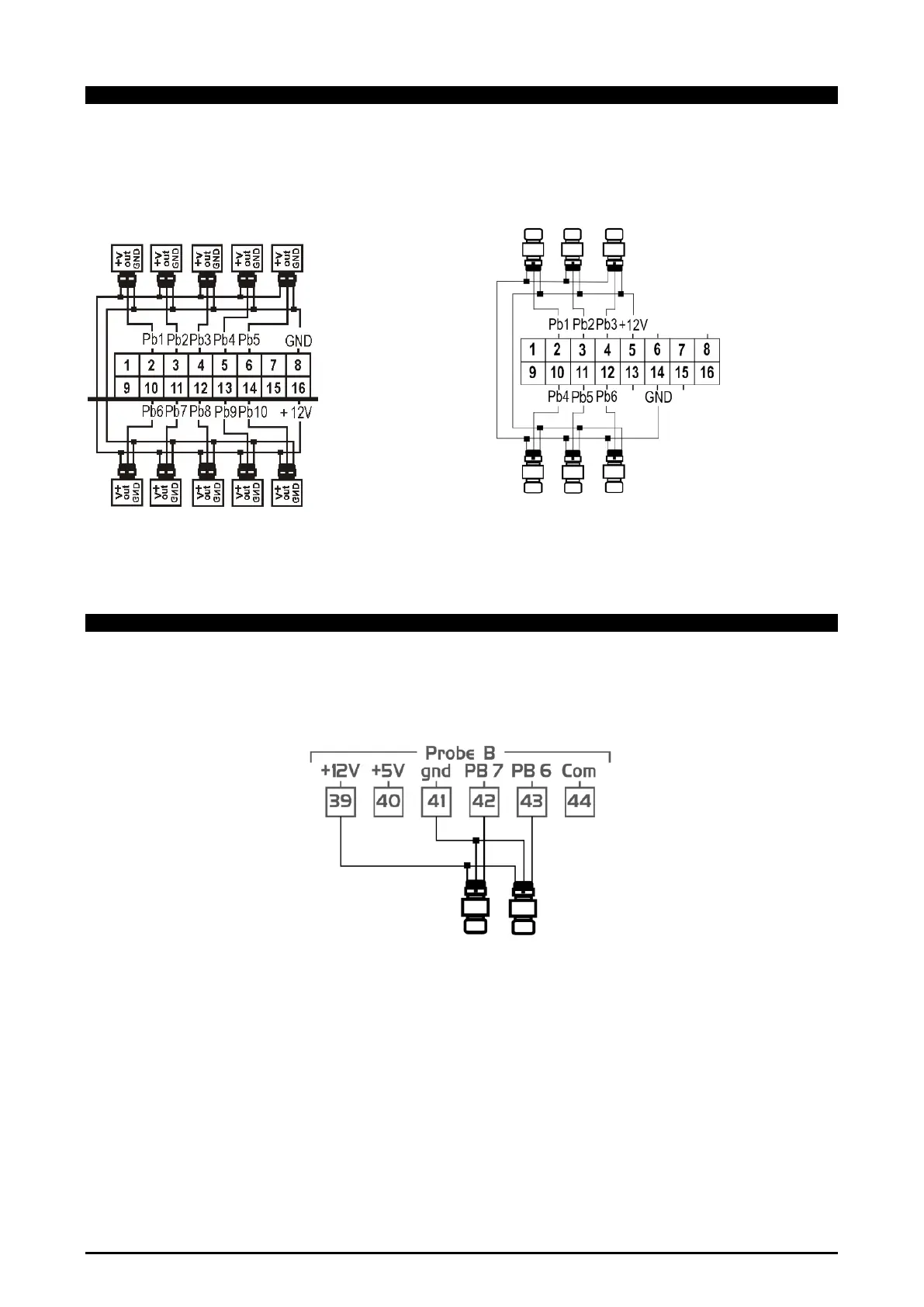

7.3.7 Live probes (0 - 1V, 0 - 5V, 0 - 10V)
3-row sensors that require +12Vdc power supply.
Each sensor must be connected through one of the inputs (from Pb1 to Pb10) and the power supply
(+12V/GND) as shown in the diagram below.
IPG-IPC IPG-IPC 4 DIN
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
7.3.8 Live probes IPG800 Series (0 - 1V, 0 - 5V, 0 - 10V)
3-row sensors that require +12Vdc power supply.
Two sensors must be connected through one of the inputs (from Pb6 to Pb7) and the power supply
(+12V/GND) as shown in the diagram below.
Recommendations:
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
