1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 83/96
7.3.10 Probes and transducers with 24Vac/dc power supply IPG800 Series
3 or 4-row sensors that require +24Vac/dc power supply

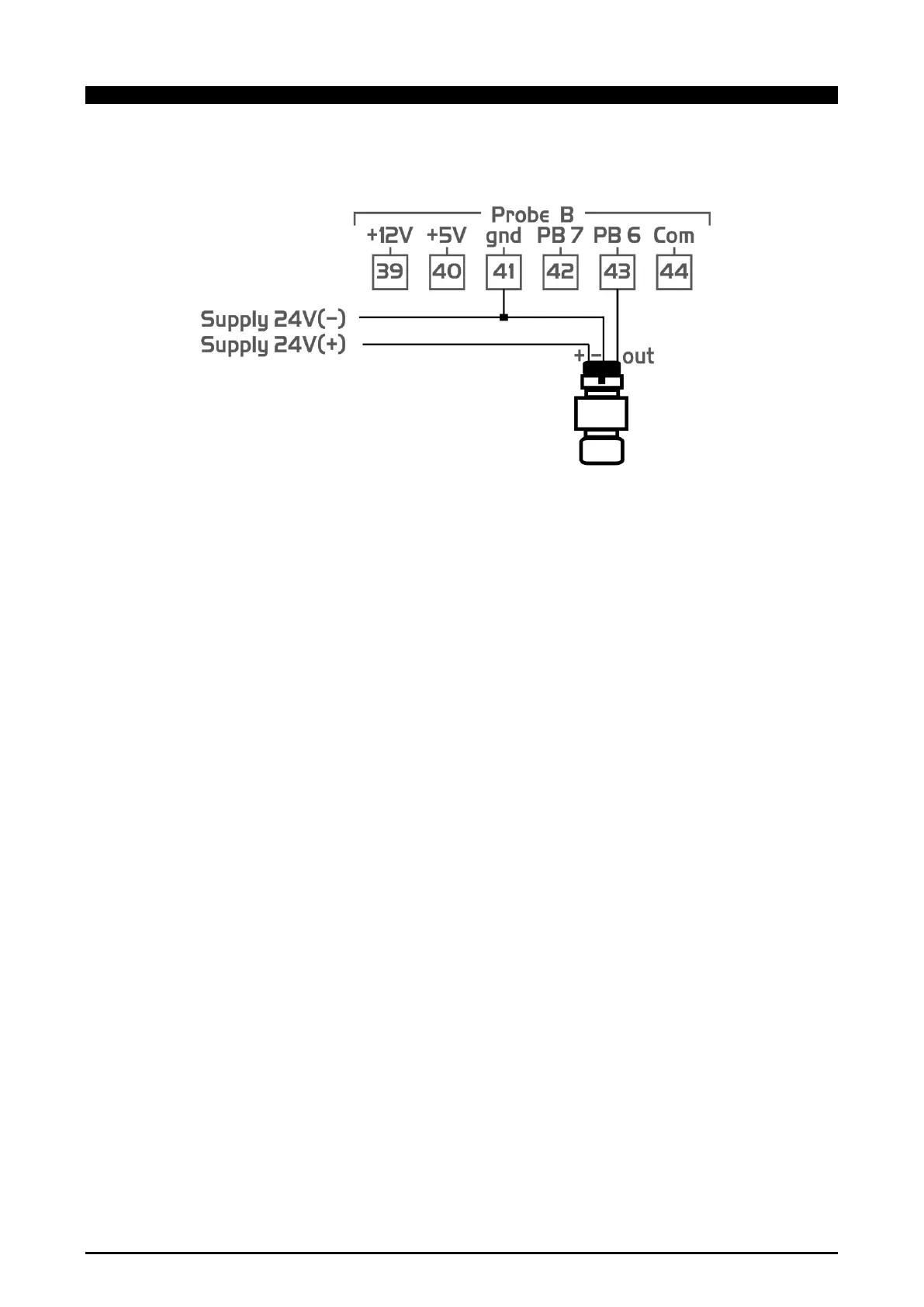

Each sensor must be connected through one of the inputs (from Pb6 to Pb7), whereas the power supply as
shown in the diagram below.
Recommendations:
- respect the “+” and “-“ polarities of the power supply.
- the power supply of the sensor must be separate from that of the programmable controller
- follow the diagram of the device used, for the numbering.
- the configuration is determined by the application.
