1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 32/96

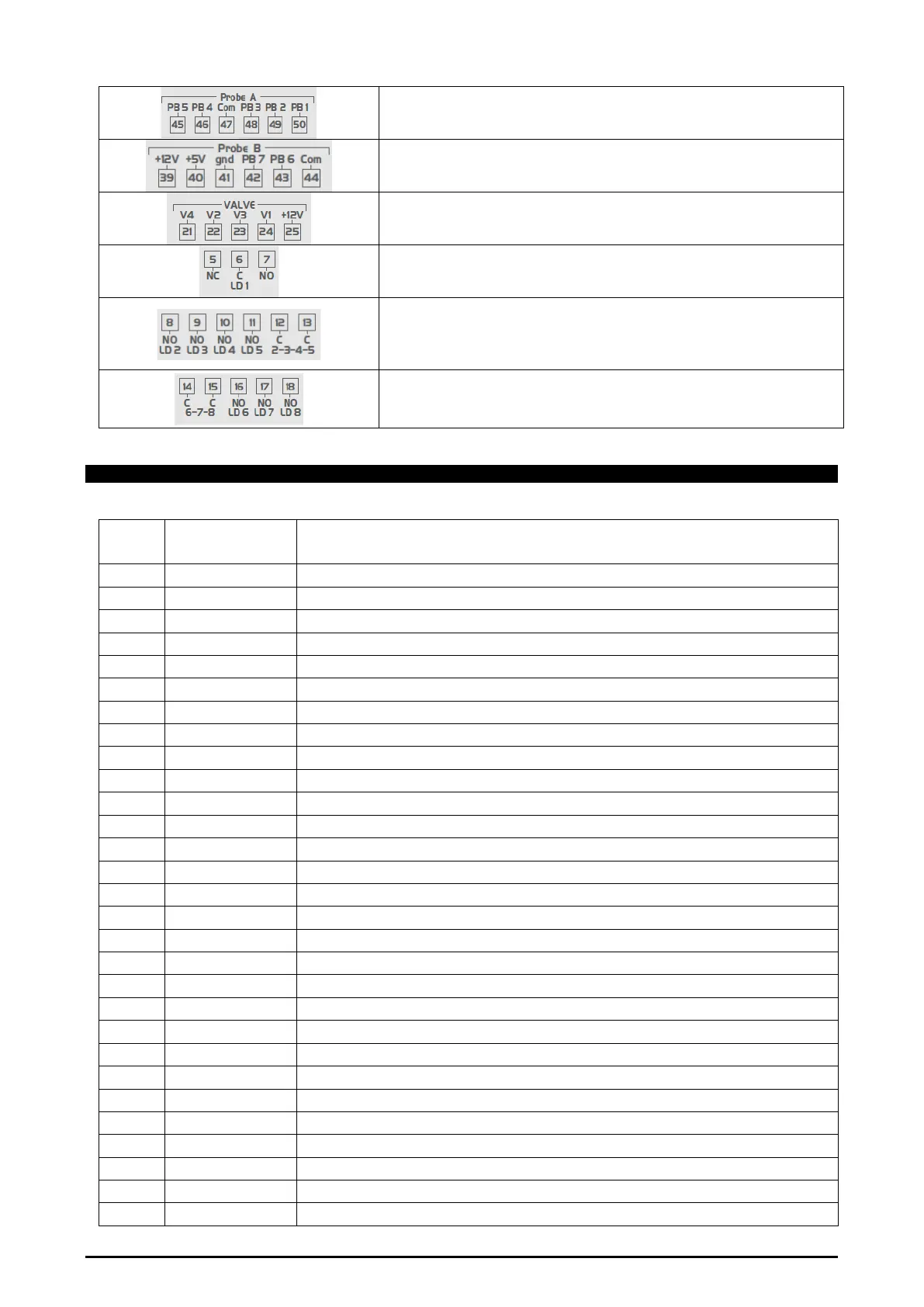

Analog Input connector.
PB1, PB2, PB3, PB4, PB5 = NTC, PTC, DI or PT1000
Analog Input connector.
PB6, PB7 = NTC, PTC, 0..20mA, 4..20mA, 0..10V, 0..1V, 0..5V, DI, PT1000
Connector for Unipolar Valve
Connector for Relay 1
- 16A changeover
Connector for Relay 2, 3, 4, 5
- Relay 2 = 8A or 1A/240V SSR (NO)
- Relay 3 = 8A or 1A/240V SSR (NO)
- Relay 4 = 8A (NO)
- Relay 5 = 8A or 16A or 16A inrush (NO)
Connector for Relay 6, 7, 8
Relay 6 = 16A
Relay 7 = 8A or 16A
Relay 8 = 8A or 16A
4.4.2 Description of the inputs and outputs
I
nput
No.
Type of Input Description
1 Supply 24Vac Power supply (Reference “+“ for 24Vdc)
2 Supply 24Vac Power supply (Reference “-“ for 24Vdc)
5 LD1-NC Relay 1 NC contact
6 LD1-C Common relay 1 (MAX 12A)
7 LD1-NO Relay 1 NO contact
8 LD2-NO Relay 2 NO contact
9 LD3-NO Relay 3 NO contact
10 LD4-NO Relay 4 NO contact
11 LD5-NO Relay 5 NO contact
12 2-3-4-5 C Common relay 2-3-4-5 (MAX 12A)
13 2-3-4-5 C Common relay 2-3-4-5 (MAX 12A)
14 6-7-8 C Common relay 6-7-8 (MAX 12A)
15 6-7-8 C Common relay 6-7-8 (MAX 12A)
16 LD6-NO Relay 6 NO contact
17 LD7-NO Relay 7 NO contact
18 LD8-NO Relay 8 NO contact
21 V4 VALVE Unipolar valve output
22 V2 VALVE Unipolar valve output
23 V3 VALVE Unipolar valve output
24 V1 VALVE Unipolar valve output
25 +12V VALVE Unipolar valve output (Common)
26 DI 6 Not Opto-insulated digital input 6 potential free contact
27 DI 5 Not Opto-insulated digital input 5 potential free contact
28 DI 4 NotOpto-insulated digital input 4 potential free contact
29 Com Common not opto-insulated digital inputs 4 to 6
30 DI 3 Not Opto-insulated digital input 3 potential free contact
31 DI 2 Not Opto-insulated digital input 2 potential free contact
32 DI 1 Not Opto-insulated digital input 1 potential free contact
33 Com Common not opto-insulated digital inputs 1 to 3
