1592025700 IPROFAMILY 3.5 stp GB 2016.12.07 iPro Series 45/96
4.7 IPX106D
4.7.1 Description of the connections

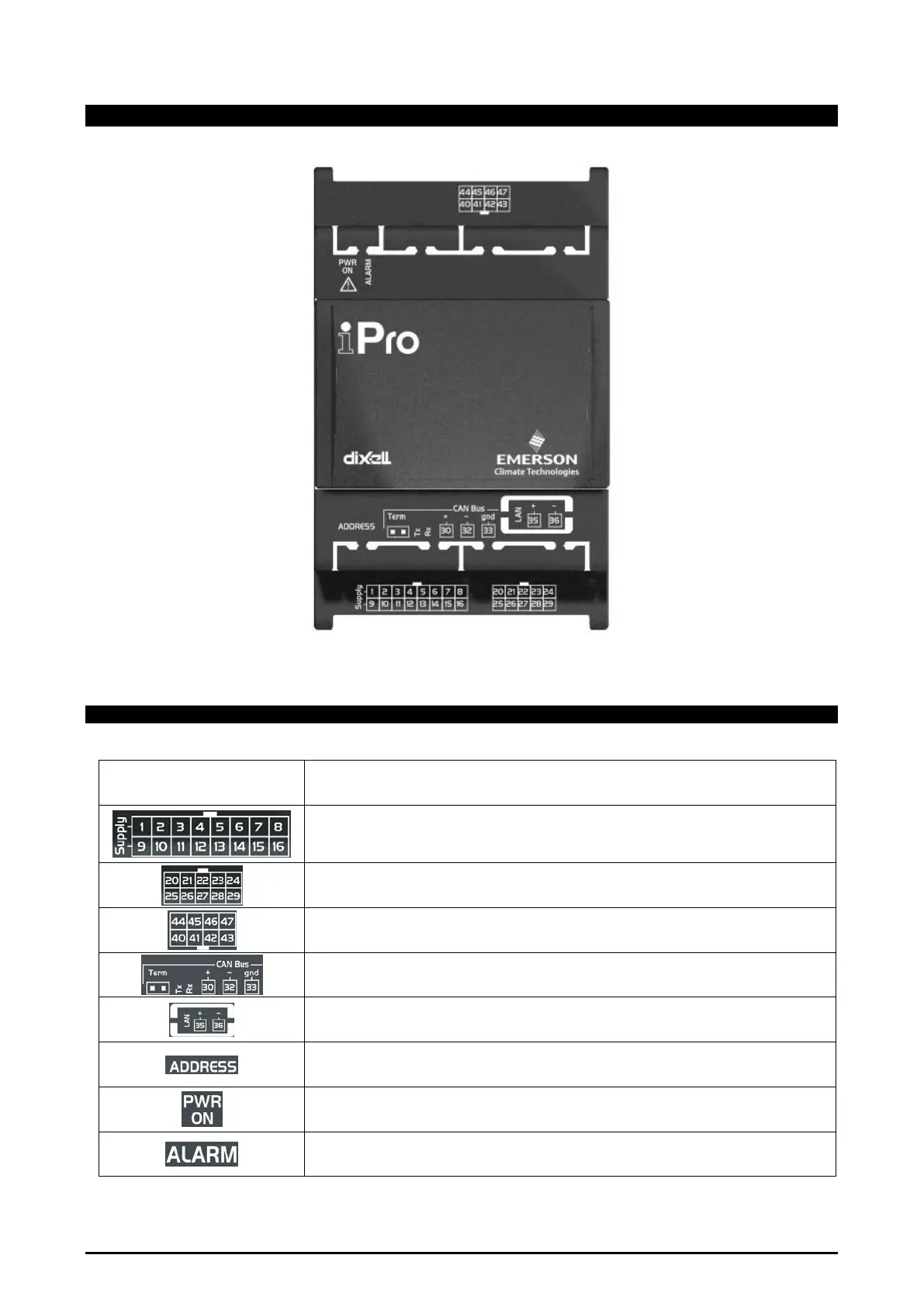

Connector Description
Connector for 24Vac/dc power supply
Analogue inputs (Pb1 - Pb5, PbC)
Potential free digital inputs (DI1 - DI3, DIC)
Additional power (+5Vdc, +12Vdc, GND)
Analogue outputs (Out1..Out3, GND)
Analogue inputs (Pb6 - Pb7, PbC)
Additional power (+5Vdc, +12Vdc, GND)
Digital relay outputs
6 NO relays, 2 common
CANBUS Connector
Rx and Tx LED to indicate that communication is active
Line terminal (Term)
LAN serial port connector
Dip-switch to set the address of the device.
Green LED to indicate the presence of power
Red status LED (ALARM)
See relative paragraph
