105
Reference Manu
al
00809-0100-4840, Rev
CB
Appendix
C: Integrated Display Menus
February 2015
Integra
ted Displa
y Menus

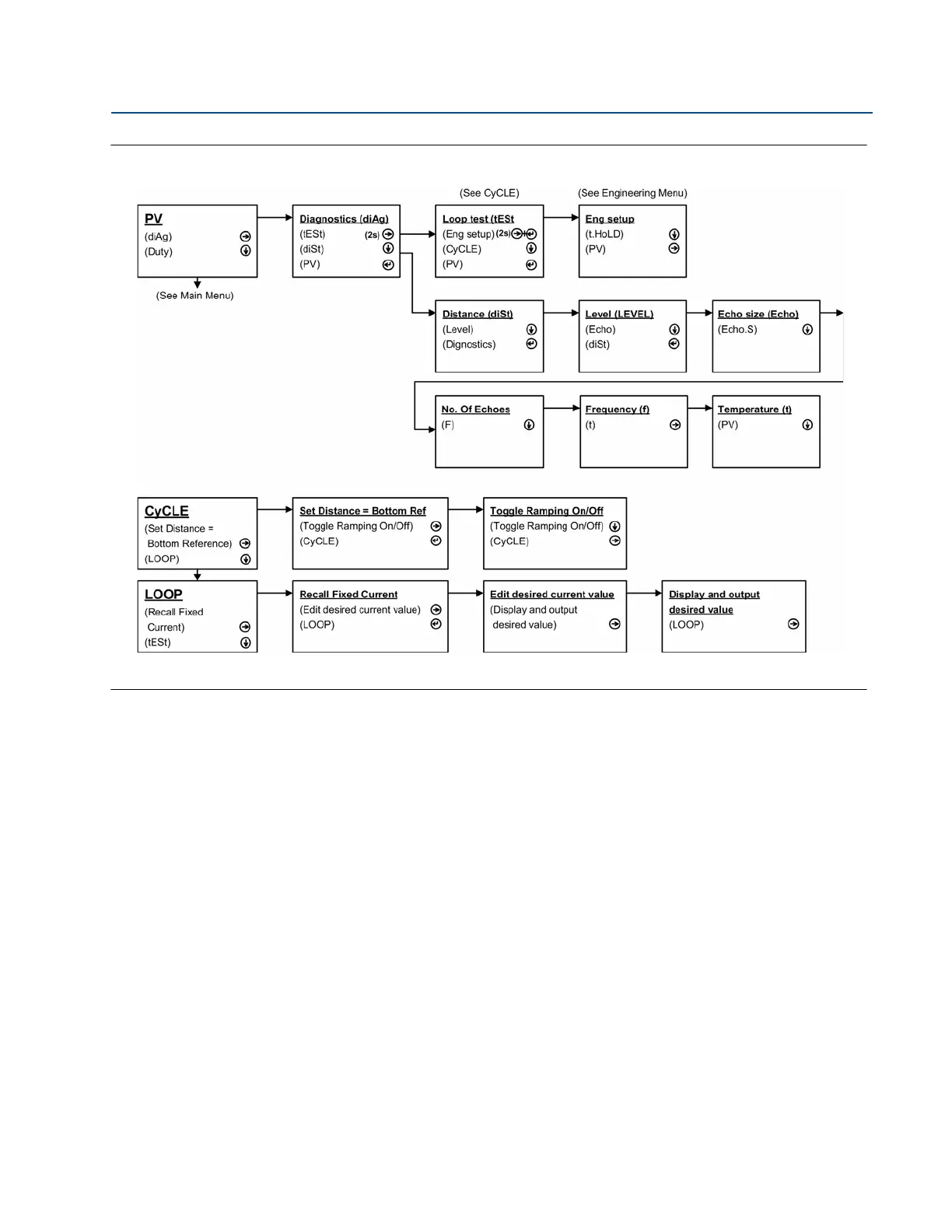

Figure C-4. Diagnosti
cs Menu on the 3102/3105
The Engineering
Menu
map is on page
106
The Main Menu map
is on page
103
116
118
Table of Contents
Table of Contents
5
Safety Messages
13
Manual Overview
13
Service Support
14
Product Recycling/Disposal
14
The Rosemount 3101, 3102, and 3105
15
Theory of Operation
16
Components of the Transmitter
16
System Architecture
18
Safety Messages
19
Considerations before Installation
20
Safety Considerations
20
Environmental Considerations
21
Mechanical Installation
22
Mounting Considerations
22
Consider Liquid Surface Conditions
22
Consider In-Tank Effects
23
Mounting the Transmitter above the Liquid Surface
24
Open Channel Flow Installations (the 3102/3105)
26
Electrical Installation
28
Connecting the Cable(S) to the Transmitter
28
Connecting the Cable Wires to the Rosemount 3101
29
Connecting the Cable Wires to the Rosemount 3102
30
Connecting the Cable Wires to the Rosemount 3105
31
Remote Temperature Sensor
33
Wiring to Allow HART Communications
33
Lightning / Surge Protection and Other Loop Devices
33
Safety Messages
35
Programming the Rosemount 3101, 3102, and 3105 Transmitters
36
Integral Display and Buttons
36
What Happens When Powering up the Transmitter
37
Considerations before Starting the Programming
37
Programming the 3101 Using the Integral Display and Buttons
38
Display Units (on the 3101)
38
First Measurements (on the 3101)
39
Setting the Bottom Reference (on the 3101)
40
Setting 4 Ma and 20 Ma Levels (on the 3101)
40
Setting the Output Damping (on the 3101)
42
Selecting the Lost Echo Action (on the 3101)
43
Setting 4 Ma and 20 Ma Levels Using Ranging (on the 3101)
44
Learn about Echoes from False Targets (on the 3101)
45
Do Final Checks
46
What Happens When a Power Failure Occurs
46
Programming the 3102 and 3105 Using the Integral Display and Buttons
47
Overview of Programming the 3102 or the 3105
47
Selecting the Duty (on the 3102/3105)
47
Selecting the Units of Measurement (on the 3102/3105)
48
Setting the Correct Bottom Reference (on the 3102/3105)
50
Selecting a Profile (on the 3102/3105)
51
Power Factor for the Flow Law (on the 3102/3105)
55
Setting the Scaling Factor (on the 3102/3105)
56
Maximum Level Entry (on the 3102/3105)
57
Maximum Flow Entry (on the 3102/3105)
58
Maximum Contents (Volume) Entry (on the 3102/3105)
59
Setting the 4 Ma Point (on the 3102/3105)
60
Setting the 20 Ma Point (on the 3102/3105)
61
Setting the Output Damping (on the 3102/3105)
62
Selecting the Lost Echo Action (on the 3102/3105)
63
Setting the Relay on and off Points (on the 3102)
64
Setting the 4 and 20 Ma Levels Using Ranging (on the 3102/3105)
66
Do Final Checks
67
What Happens When a Power Failure Occurs
67
Rev CB February
68
Safety Messages
69
Servicing
70
Diagnostics for the 3101
70
General Troubleshooting
70
Error Messages
70
Diagnostics for the 3102 and the 3105
71
General Troubleshooting (on the 3102/3105)
71
Fault and Alarms (on the 3102/3105)
71
Diagnostic Data (on the 3102/3105)
72
Loop Test (on the 3102/3105)
73
Engineering Menu for the 3102 and 3105
74
Accessing the Engineering Menu (on the 3102/3105)
74
Setting the Threshold (on the 3102/3105)
75
Setting Lost Echo Time (on the 3102/3105)
76
Setting the Dead Band (on the 3102/3105)
77
Setting the Frequency (on the 3102/3105)
78
Setting the Pulse Repetition Frequency (on the 3102/3105)
79
Setting Valid Echo Count (on the 3102/3105)
80
Setting Spike Rejection (on the 3102/3105)
81
Learn about Echoes from False Targets (on the 3102/3105)
81
Setting the Ambient Temperature (on the 3102/3105)
83
Temperature Calibration (on the 3102/3105)
84
Loading Factory Default Values (on the 3102/3105)
85
Changing the Base Units (on the 3102/3105)
86
False Echoes under Certain Ambient Operating Conditions
87
(On the 3102/3105)
87
Specifications
89
General
89
Measuring Performance
89
A.1 Specifications
89
Display and Configuration
90
Electrical
91
A.1.4 Electrical
91
Materials
92
Mechanical
92
A.1.5 Materials
92
Measuring
93
Environment
93
A.1.7 Measuring
93
Temperature and Pressure Ratings
94
Load Limitations
95
A.1.10 Load Limitations
95
A.2 Dimension Drawings
96
Dimension Drawings
96
Ordering Information
99
Rosemount 3101 Ordering Information
99
A.3 Ordering Information
99
Rosemount 3102 Ordering Information
100
The Rosemount 3105 Level Transmitter
101
Spare Parts and Accessories
102
Spare Parts and Accessories for the 3101/3102/3105
102
B.1 Manufacturing Location
103
Manufacturing Location
103
European Union Directive Information
103
Non-Hazardous Location Certifications
104
American and Canadian Certifications
104
Hazardous Locations Certifications
105
American and Canadian Certifications
105
European Certification
105
International Certifications
106
B.4.3 International Certifications
106
B.5 Approval Drawings
109
Approval Drawings
109
Menus on the 3101
114
Menus on the 3102 and the 3105
115
D.1 Introduction
121
Introduction
121
Menus and Parameters
121
Introduction
125
Menus and Parameters
125
Overview of Programming the 3102 and 3105
129
Using a Rosemount 3490 Series Control Unit
129
Using a Field Communicator or AMS Device Manager
129
Command Parameters
130
Base Units
130
F.2.1 Base Units
130
Set as Empty
132
F.2.2 Set as Empty
132
Present Depth
133
F.2.3 Present Depth
133
Learn False Echo
134
Auto Tank Map
136
Simulation of PV
137
F.2.6 Simulation of PV
137
Restart Device
138
F.2.7 Restart Device
138
Load Defaults
139
F.2.8 Load Defaults
139
Simulate Current Output
140
Trim 4 Ma / Trim 20 Ma
141
Configuration Parameters
143
Message (P000)
143
F.3.1 Message (P000)
143
Tag (P001)
144
F.3.2 Tag (P001)
144
Descriptor (P002)
145
F.3.3 Descriptor (P002)
145
Final Assembly Number (P004)
146
Serial Number (P005)
147
Bottom Reference (P010)
148
Upper Blanking (P023)
150
Lower Blanking (P063)
152
Distance Offset (P060)
153
Level Offset (P069)
154
Tank Shape / Non-Linear Profile (P011)
155
Contents (Volume) Measurement
157
Flow Measurement
162
F.3.13 Flow Measurement
162
Primary Variable Units (P012)
165
Scale Factor / K-Factor (P013)
166
Profile Height / Power Factor (P014)
168
Profile Points 1 to 10 (P030 to P039)
170
Upper Range Value (P015)
171
Lower Range Value (P016)
172
Damping (P020)
174
F.3.20 Damping (P020)
174
Relay 1 Mode (P070) on the Rosemount 3102
175
RL1 PV on Point (P071) on the Rosemount 3102
177
RL1 PV off Point (P072) on the Rosemount 3102
178
Relay 2 Mode (P073) on the Rosemount 3102
179
RL2 PV on Point (P074) on the Rosemount 3102
180
RL2 PV off Point (P075) on the Rosemount 3102
181
Lost Echo Delay (P021)
182
Lost Echo Action (P022)
184
Speed of Sound (P024)
186
Temperature (P025)
188
F.3.30 Temperature (P025)
188
Set Threshold (P026)
189
Transmit Power Control (P040)
190
Pulse Repeat (P041)
191
Echoes Needed (P042)
192
Threshold 1 Time (P043)
193
Threshold 1 Size (P048)
194
Target Pulses (P044)
195
Target Frequency (P045)
196
Spike Rejection (P049)
198
False Echo Data (P081 to P088)
199
Clear False Echoes (P089)
199
F.3.41 Clear False Echoes (P089)
200
Transducer Material (P970)
201
Poll Address (D951)
202
Maximum Temperature (P046)
203
Minimum Temperature (P047)
204
Date (P003)
205
F.3.46 Date (P003)
205
Monitoring and Diagnostic Parameters
206
Process Value / Primary Variable (PV) (D900)
206
Level / Secondary Variable (SV) (D901)
207
Distance / Tertiary Variable (TV) (D902)
208
Temperature / Fourth Variable (FV) (D903)
209
Of Current Output (D905)
210
Current Output (D906)
210
F.4.6 Current Output (D906)
211
Distance (D910)
212
F.4.7 Distance (D910)
212
Echo Size (D911)
213
Echo Success (D912)
214
Target Echoes (D913)
215
Speed of Sound (D914)
216
Temperature for Sos Calculation (D915)
217
Frequency (D916)
218
F.4.13 Frequency (D916)
218
Threshold in Use (D917)
219
Pulses in Use (D918)
220
Transmit Power (D919)
221
Model Code (D949)
222
Hardware Rev. (D952)
223
Software Revision (D953)
224
Manufacturer (D960)
225
F.4.20 Manufacturer (D960)
225
Unique Device ID (D961)
226
HART Revision (D962)
227
Transmitter Specific Command Revision (D963)
228
Preambles (D964)
229
F.4.24 Preambles (D964)
229
Transmitter Flags (D965)
230
Primary Variable Trend
231
Temperature Trend
231
Distance and Echo Size Trend
232
