Appendix F: Programming the 3102 and 3105 using HART
February 2015

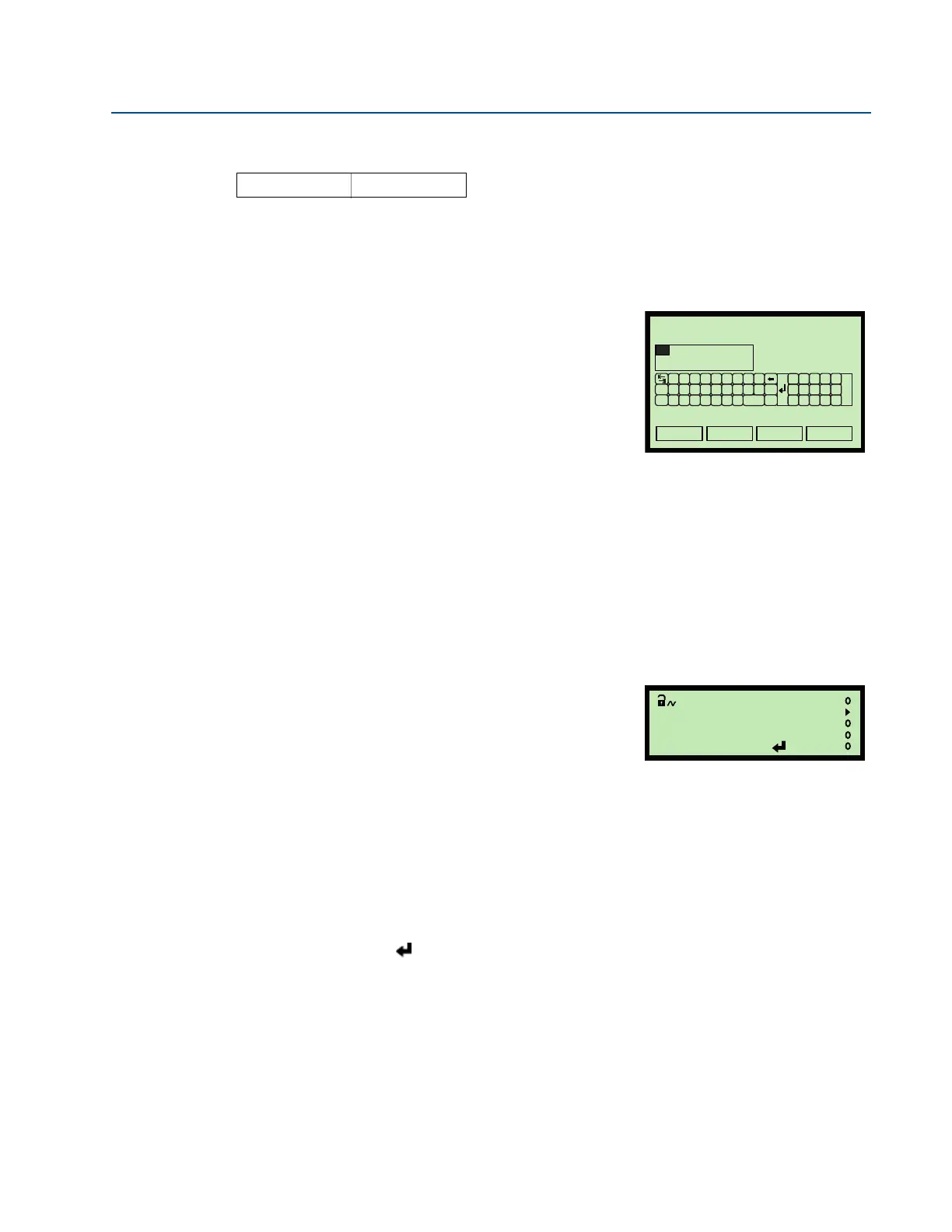

Programming the 3102 and 3105 using HART
F.3.43 Poll address (D951)
This indicates the transmitter polling address for the HART protocol.
The poll address range is 0 to 15. When it is 0, the transmitter is in 4–20 mA mode. For all other
addresses, the transmitter is in multi-drop mode and the current output is fixed to 4 mA.
Field Communicator or AMS Device
Manager
To view or change the poll address
1. From the Home screen, select 2: Configure.
2. Select 2: Manual Setup.
3. Select 4: HART/Identity (3105) or
5: HART/Identity (3102).
4. Select 2: Communication, and then select 1: Poll Address D951.
5. If a change is required:
(a) Select a new setting, and then select “ENTER” to save it.
(b) Select “Send” or “Apply” to update the transmitter.
Rosemount 3490 Series Control Unit
To view or change the poll address
1. From the Main Menu screen, select SETUP.
2. Select the transmitter (e.g. “Tx1: 3102”).
3. Select SYSTEM.
4. Select FIXED.
5. Select HART.
6. Select Poll Address.
7. Follow the on-screen instructions to edit and save the new setting.
(Use the Enter ( ) key if prompted to change mode to “off-line”).
8. When finished, select “Quit” to exit to the previous menu.
Fast Keys
2, 2, 4 [or 5], 2, 1
Poll Address D951
