F.3.20 Damping (P020)
The damping value is a time constant in seconds, and is applied as smoothing to the level
reading and the output current.
A larger value will have the effect of smoothing out rapid changes of level, and smooth out the
effects of turbulence and ripples on the liquid surface.
A value of zero can be edited, in which case no smoothing is applied and transmitter readings
immediately change the output. However, this may result in a rather ‘noisy’ output and is not
normally recommended.
Note
The pulse repetition frequency of the transmitter is one pulse per second, which means that the
system response time cannot be faster than this.
Field Communicator or AMS Device
Manager
To view or change the damping
1. From the Home screen, select 2: Configure.
2. Select 2: Manual Setup.
3. Select 1: Basic Setup.
4. Select 5: Damping P020.
5. If a change is required:
(a) Input a new value, and then select “ENTER” to save it.
(b) Select “Send” or “Apply” to update the transmitter.
Note
When messages appear, take appropriate action if needed and select “OK”.
Fast Keys
2, 2, 1, 5
Damping P020
3.0 s
3.0
ESC
DEL ENTER
HELP
w
s
q
a
z
Lock
Shift
@ &
á ü
x
e
d
c
r
f
v
t
g
b
y
h
n
u
j
m
*
-
+
/
.
0
7
4
1
8
5
2
9
6
3
i
k
o
l
FN

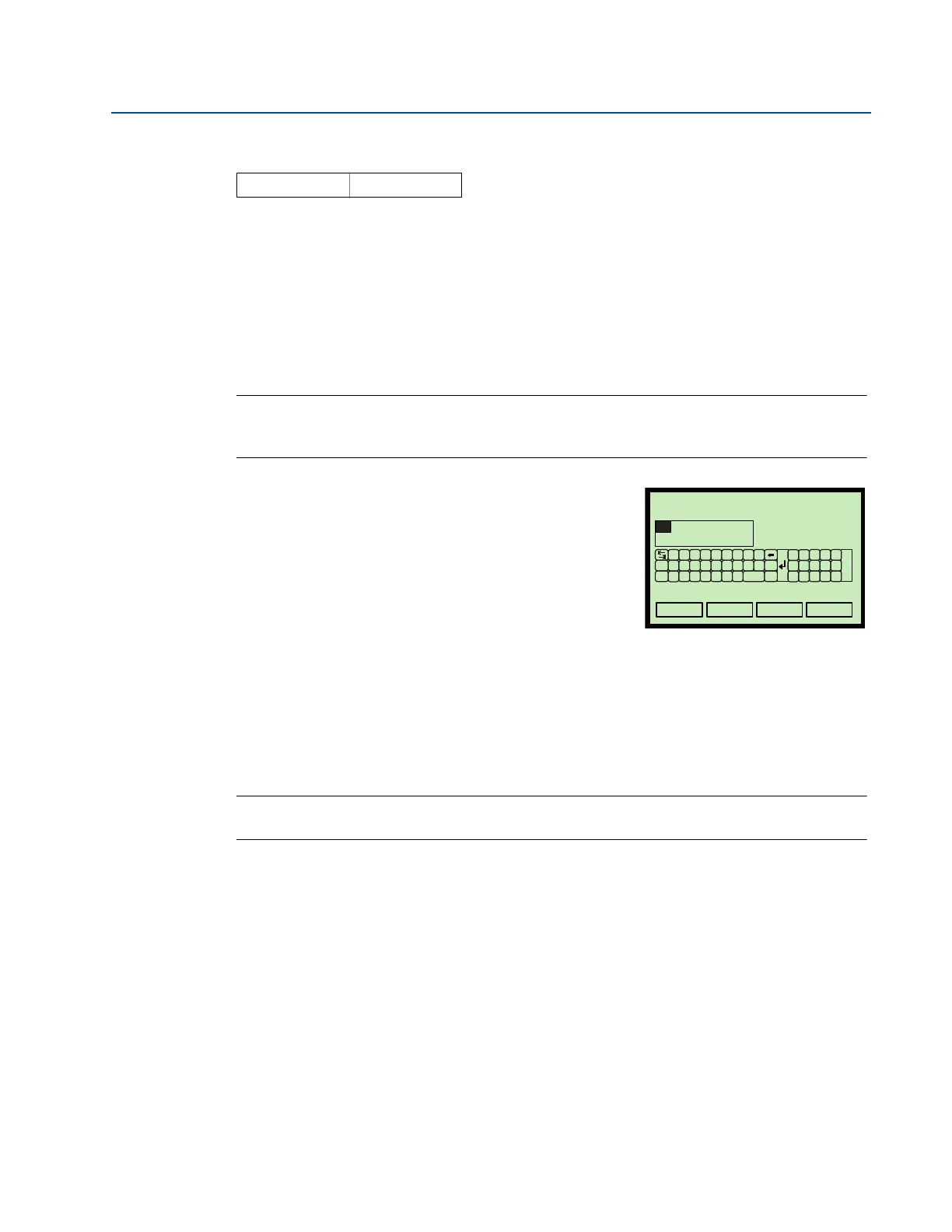

(Field Communicator Screen Shown)
To Next Page
